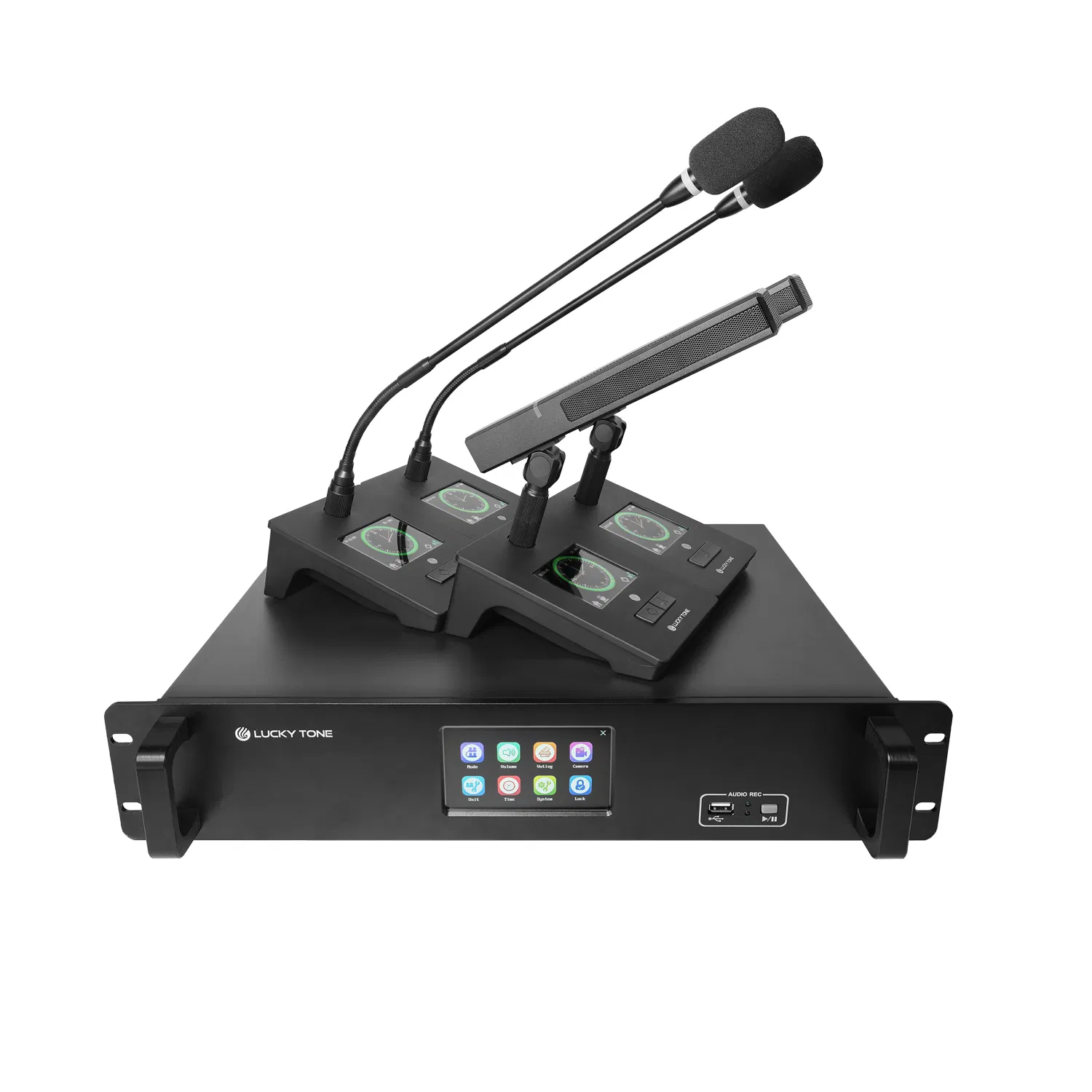

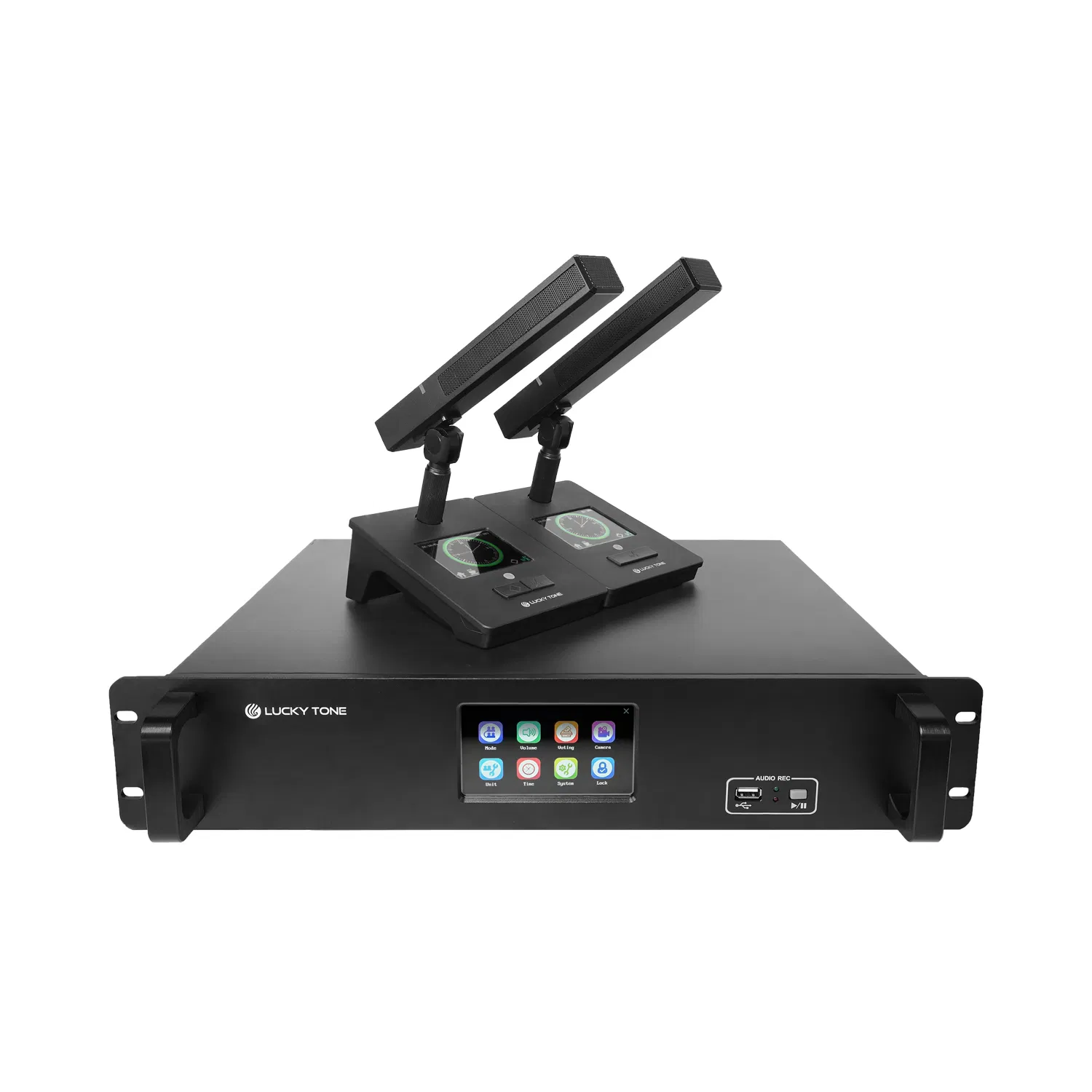

Digital Professional Conference System with Discussion, Visual Tracking, Sign-in, Voting and Recording

Customization: Available
Audio Quality: Noise Cancellation Feature, Voice Enhancement Technology
Color: Black

Product Description

Basic Specifications
Model NO. DC-900M / DC-900D / DC-900C / DC-990D / DC-990C
Control Features Touchscreen Control Panel
Integration Integration with Video Conferencing Systems
Recording Options Built-in recording feature, External recording device support
Type Portable Audio Conferencing System
Power Supply AC110V-220V/50Hz
Frequency Response 20Hz-20kHz
Microphone Interface 4 X Round DIN-8 Socket, 4 X RJ45
Recording Interface USB
Product Overview

The DC-900 Digital Conference System integrates multiple advanced features including discussion, visual tracking, sign-in, voting, and recording. It offers flexible control, allowing users to operate the system directly via the main unit's touchscreen or through computer software. The system supports control of up to 500 and powers up to 100 microphones, making it ideal for large-scale conference settings.

Key Features
  • 4.3-inch IPS Touchscreen Easy system adjustments and parameter displays with time mode.
  • High-Performance DSP Advanced feedback suppression and precise frequency adjustment.
  • Multiple Conference Modes Supports FIFO, LIFO, Restriction, Chairman, and Full Open modes.
  • One-Touch Mute Chairman unit has priority to mute delegates instantly.
  • Expandable Connectivity Equipped with 4 RJ45 and 4 8-pin interfaces for up to 100 units.
  • Security Management Password-protected settings for enhanced system security.
  • Speech Limitations Control simultaneous speaking units (1-12) and set time limits.
  • Centralized Control RS232 support for integration with management software.
Technical Specifications
Parameter Main Unit (DC-900M) Microphone Units
Power Supply AC110V-220V/50Hz DC 24V (From Main Unit)
Frequency Response 20Hz-20kHz 20Hz-20KHz
SNR / Sensitivity >96dB ≤-46 dBV/Pa
THD <0.05% <0.05%

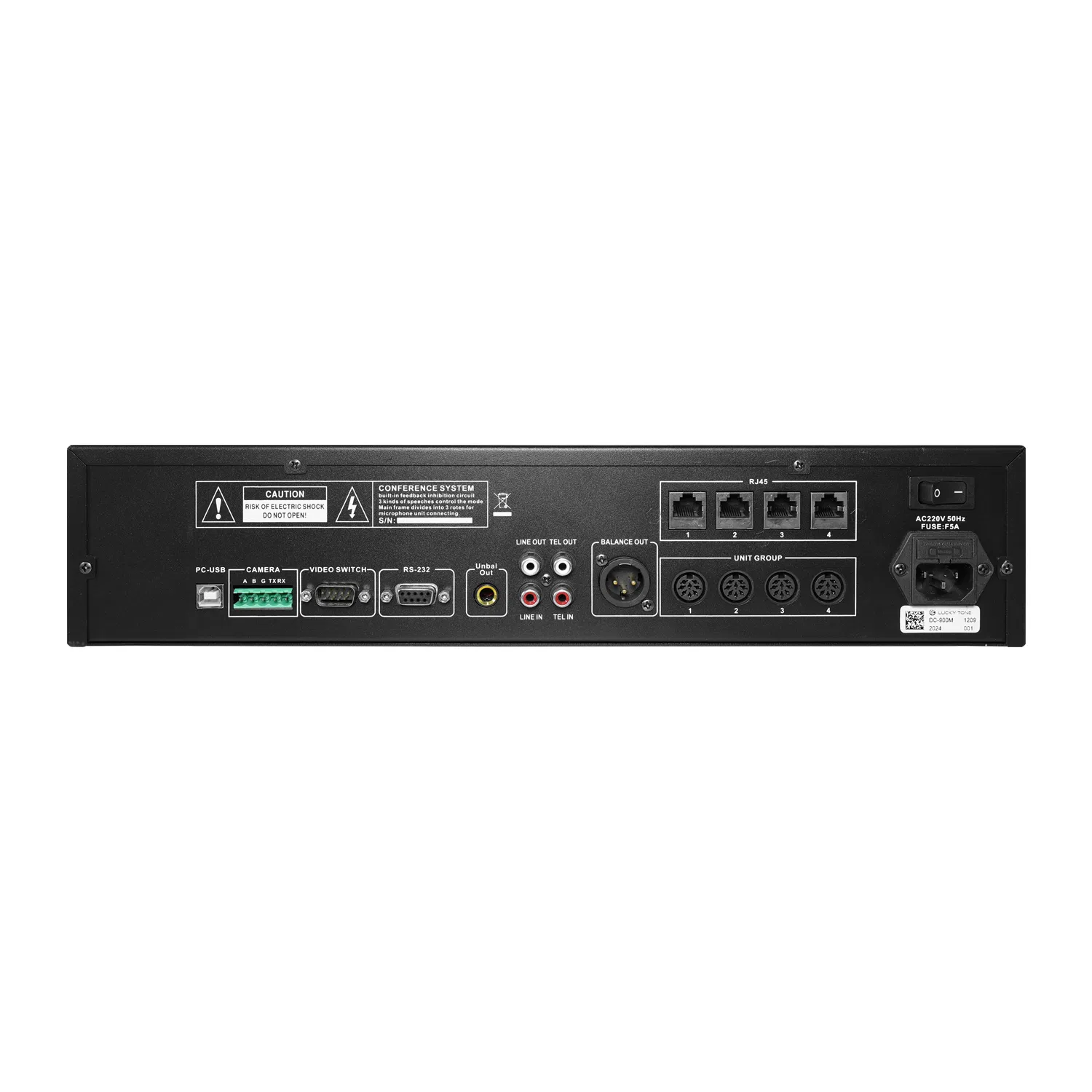

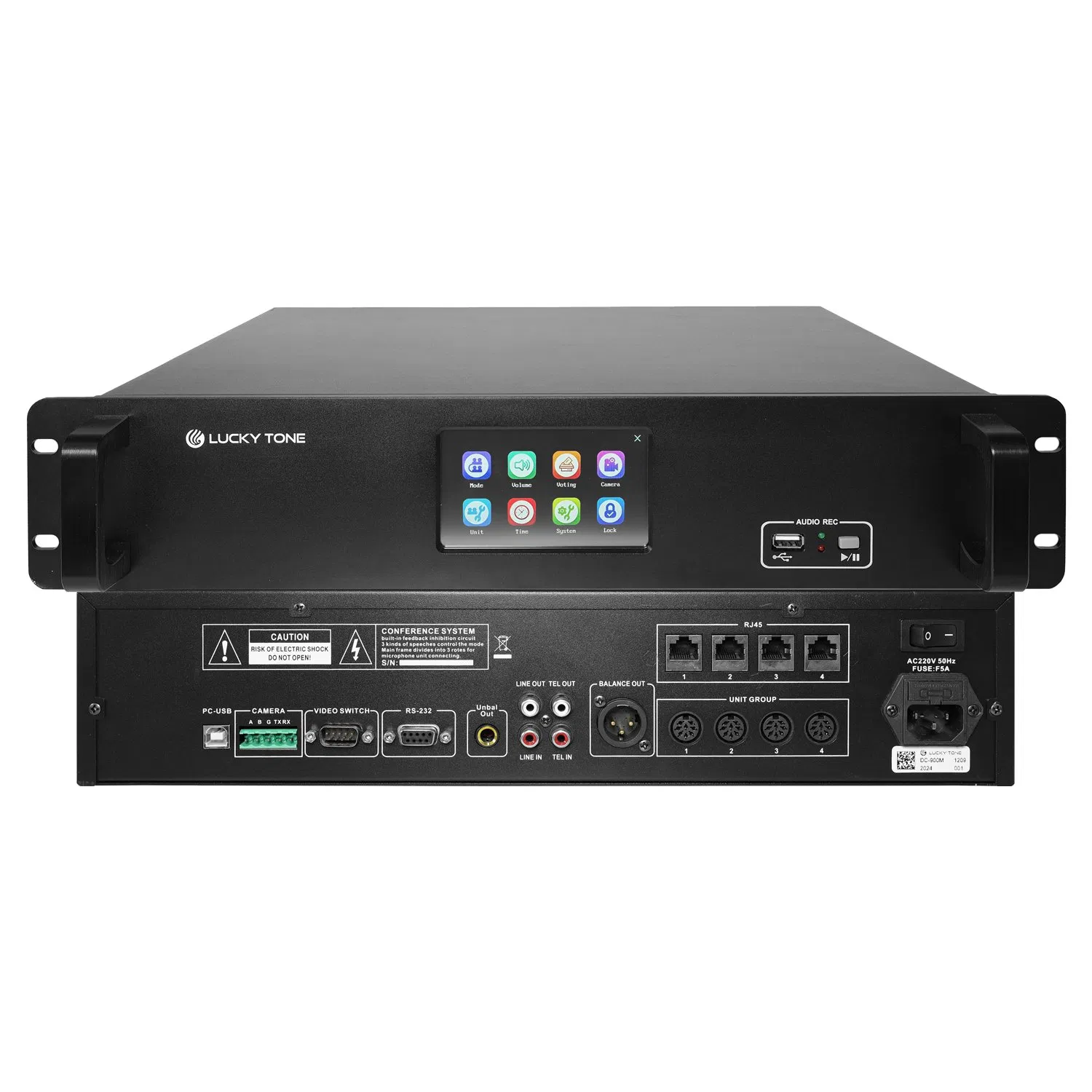

Interfaces USB, RJ45, DIN-8, RCA, XLR 8P-DIN T-type Cable
Max. SPL - 125dB (THD<3%)

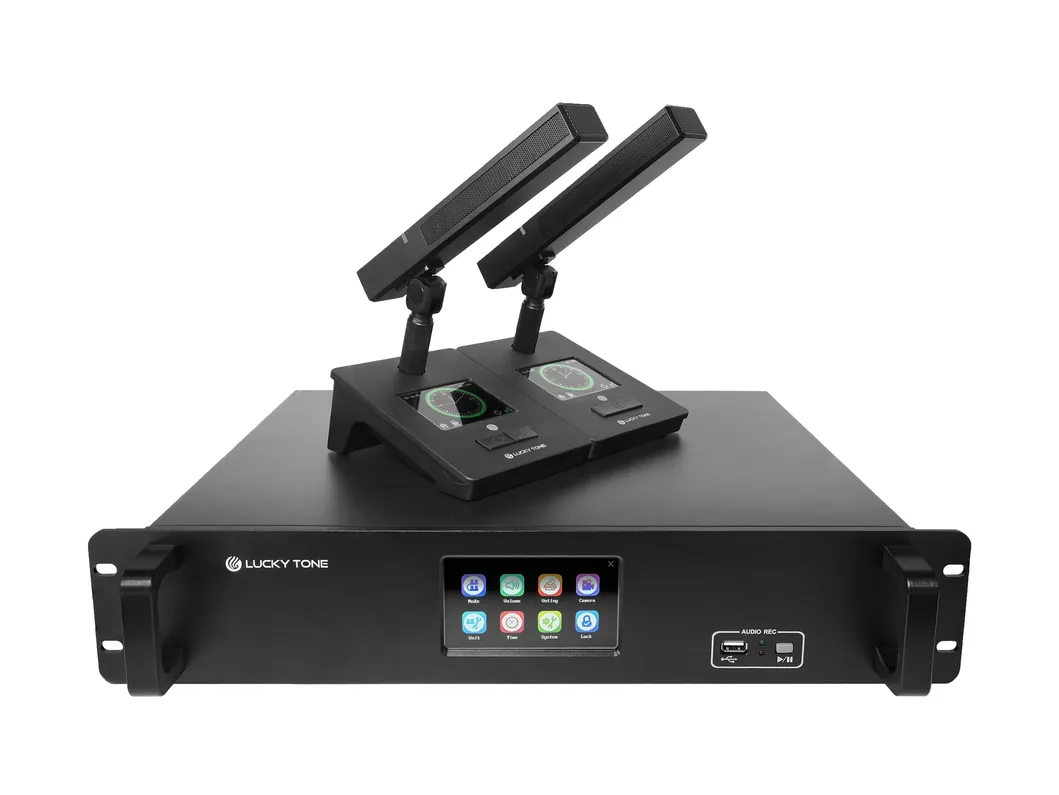

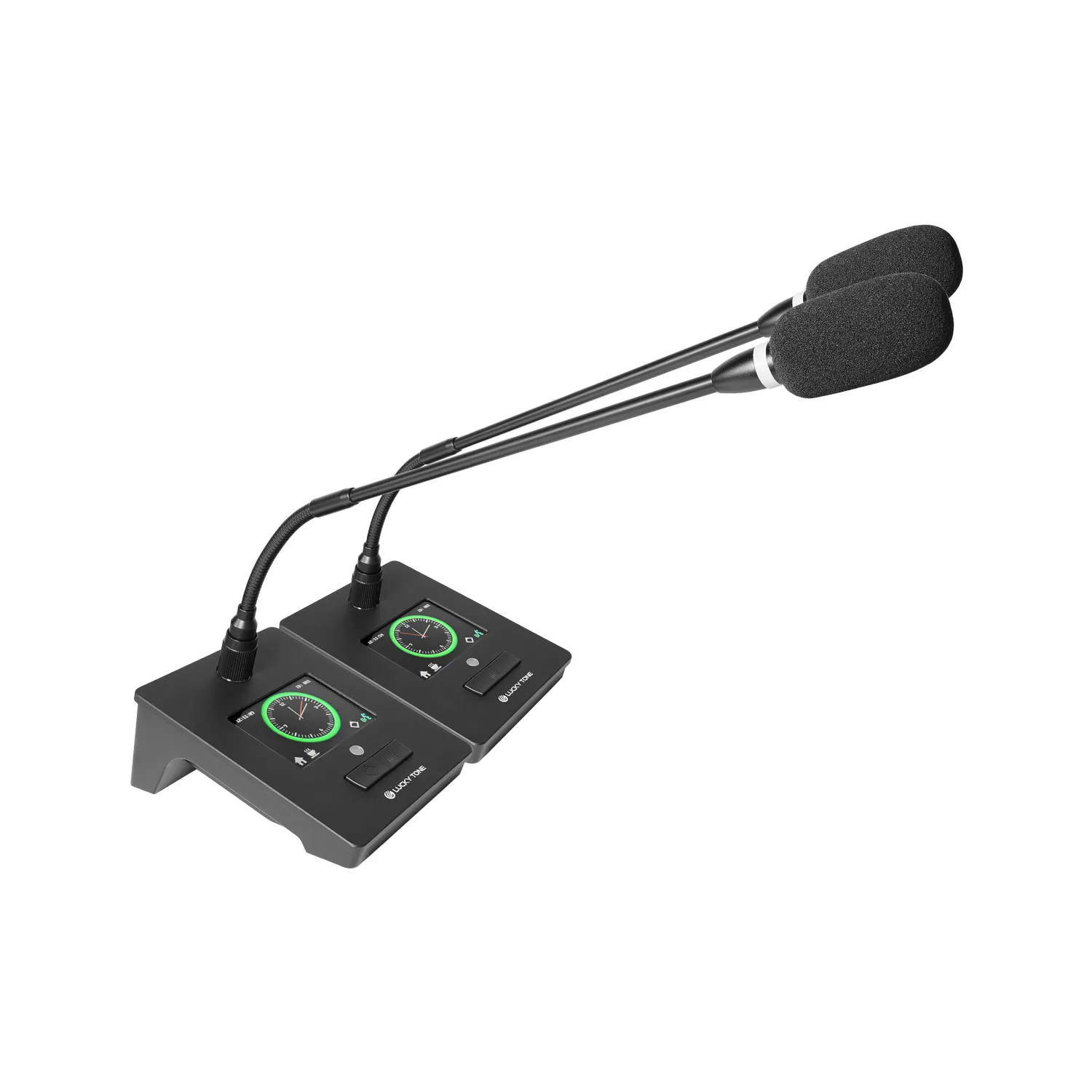

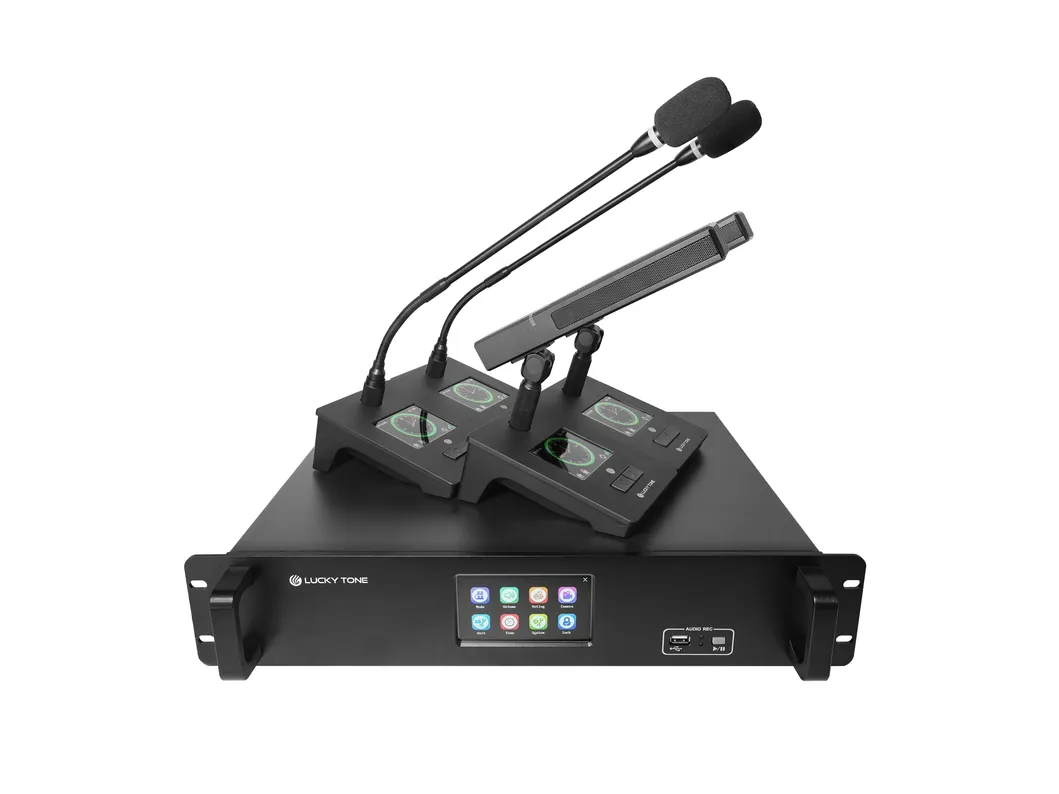

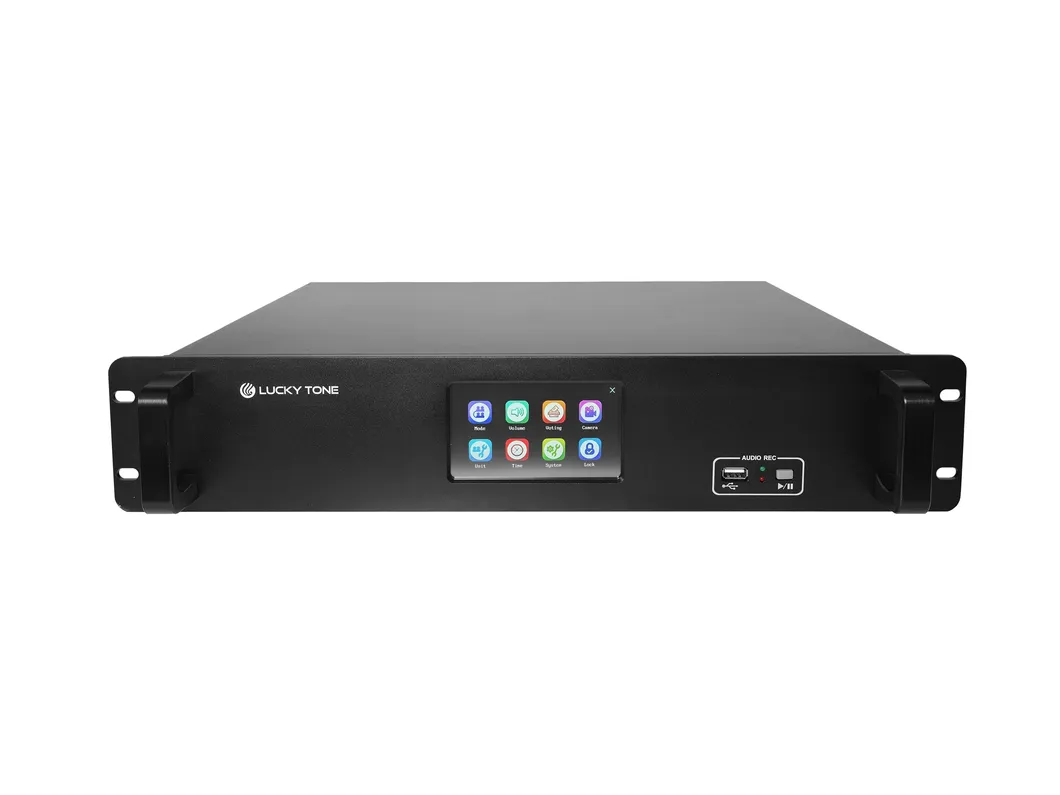

Detail Images
Production & Quality

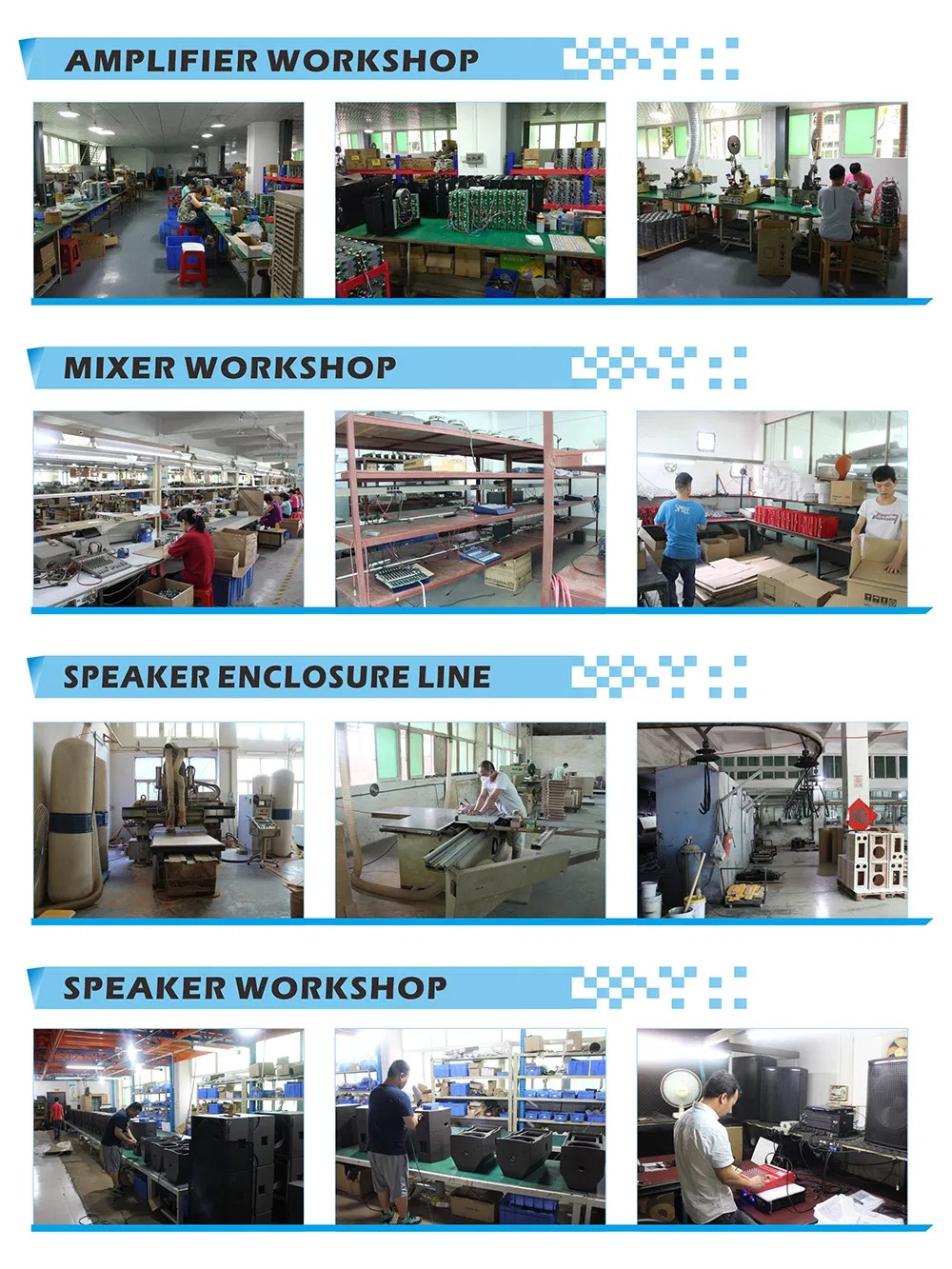

Production Display
Frequently Asked Questions
How many microphone units can the DC-900 system support?
The system can control up to 500 units in total and directly power up to 100 microphones through its built-in interfaces (RJ45 and 8-pin).
What conference modes are available on this system?
It supports multiple modes including FIFO (First In, First Out), LIFO (Last In, First Out), Restriction mode, Chairman priority mode, and Full Open mode.
Can the system record the conference audio?
Yes, the system features a built-in USB recording interface and also supports external recording devices for high-quality audio capture.
Does it integrate with video conferencing systems?
Absolutely. The DC-900 is designed for seamless integration with professional video conferencing setups and supports visual tracking features.
Is there a way to prevent unauthorized setting changes?
Yes, the system includes a Password Management Mode, ensuring that only authorized personnel with the correct password can access and modify system parameters.
What are the benefits of the built-in DSP processor?
The high-performance DSP processor provides advanced feedback suppression and allows for precise adjustment of high, mid, and low frequencies for crystal-clear audio.
