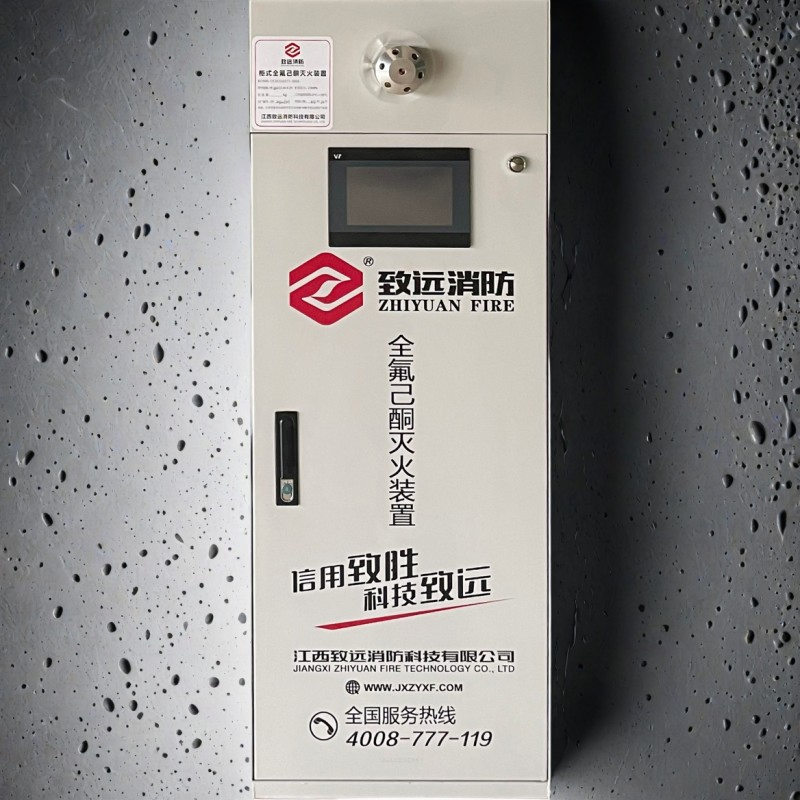

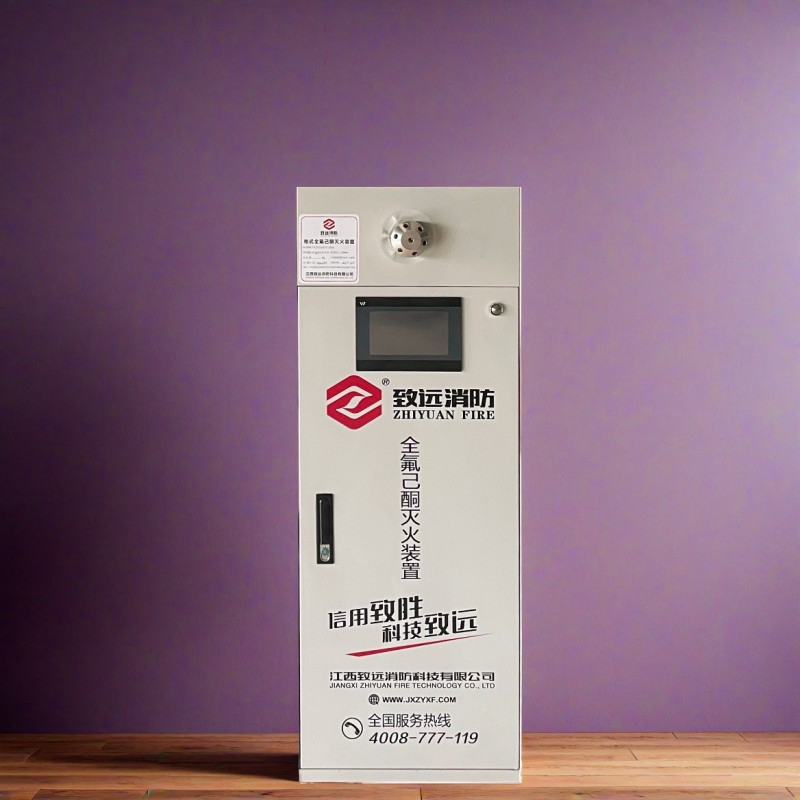

Compact Cabinet Fire Suppression System for Small Server Rooms

Customization: Available
Agent: Fk-5112 Fire Suppression System
Type: Automatic Fire System

Product Description

Overview

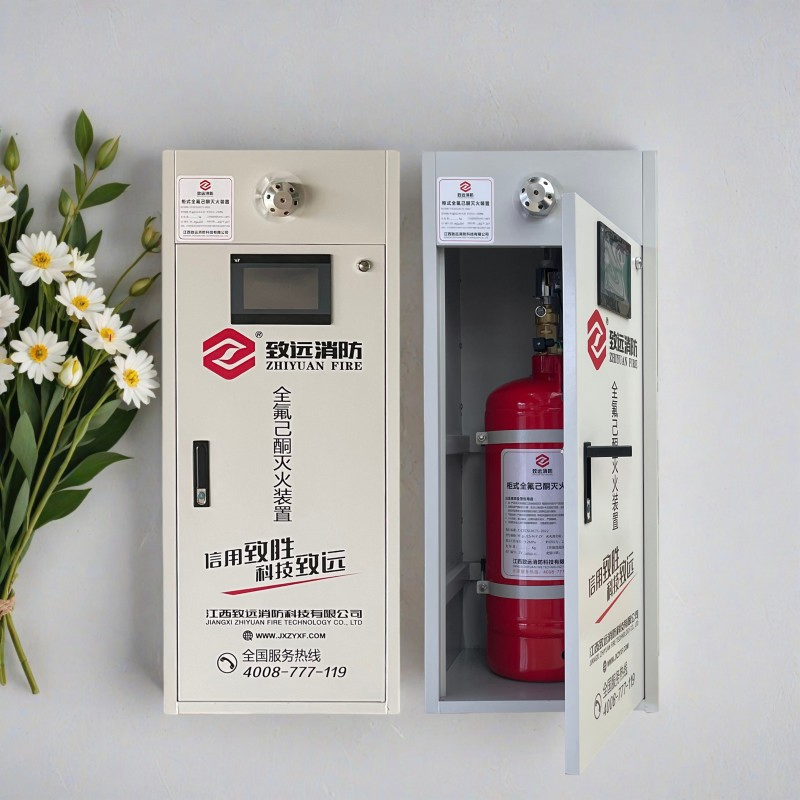

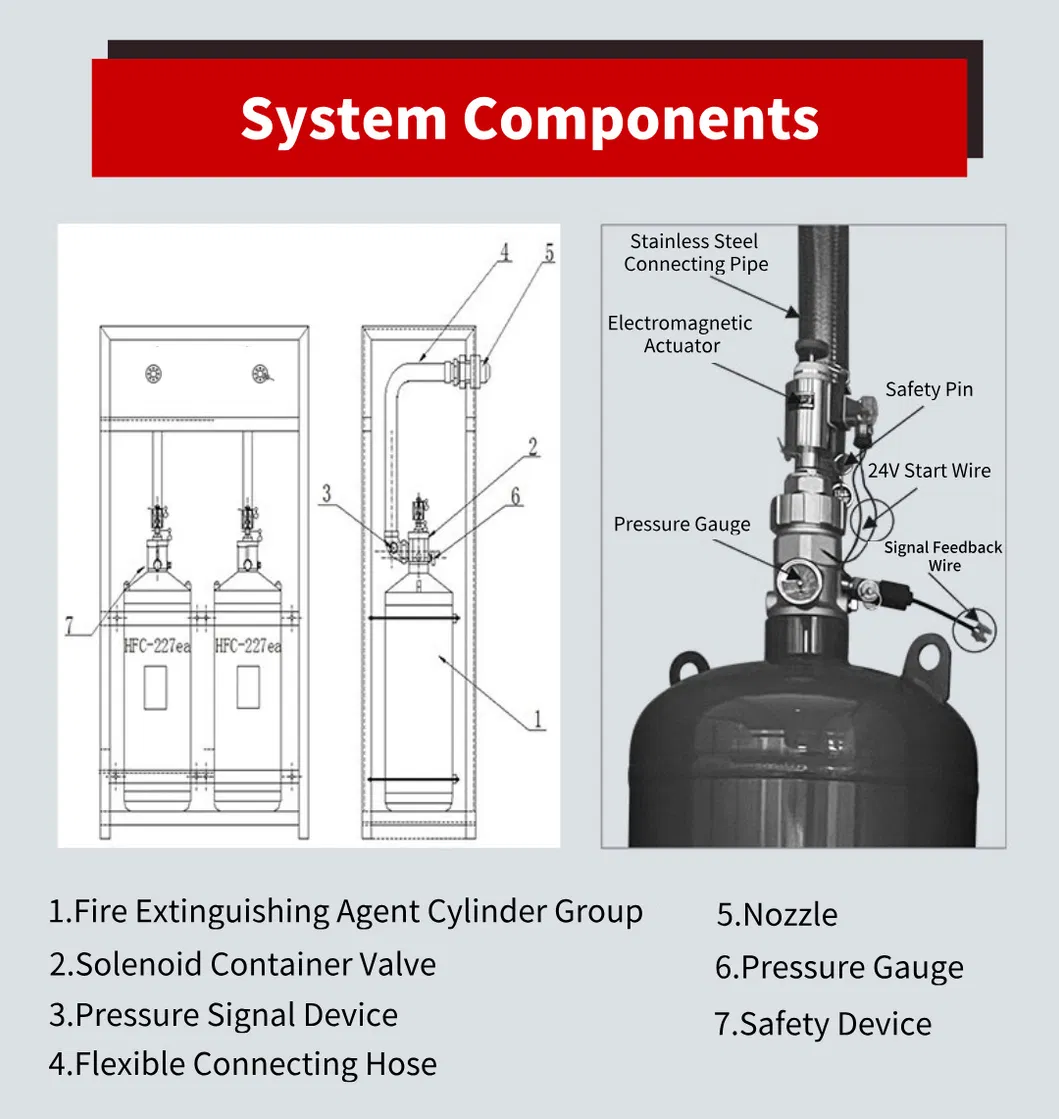

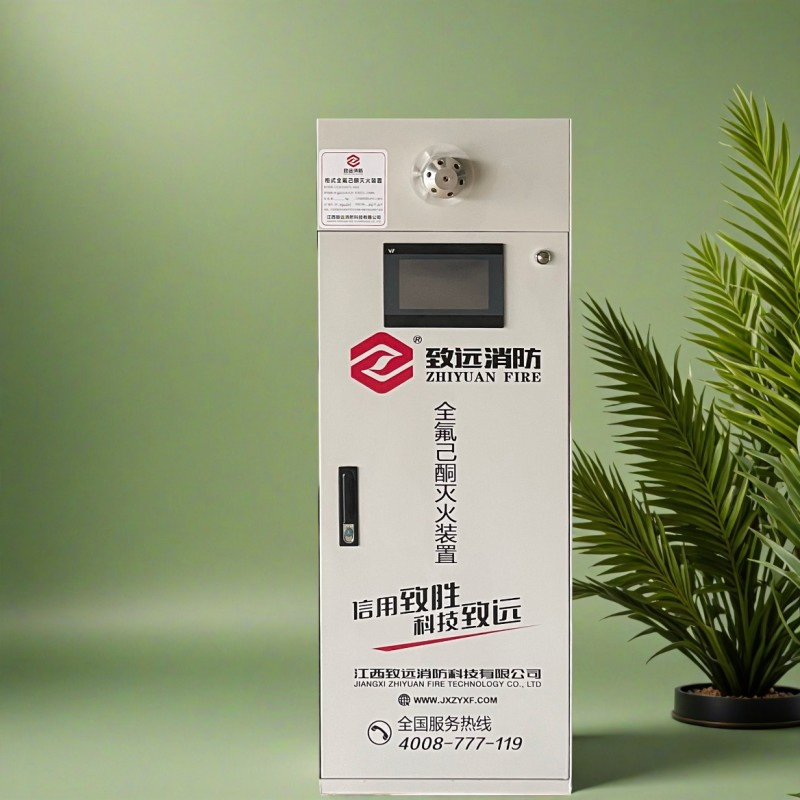

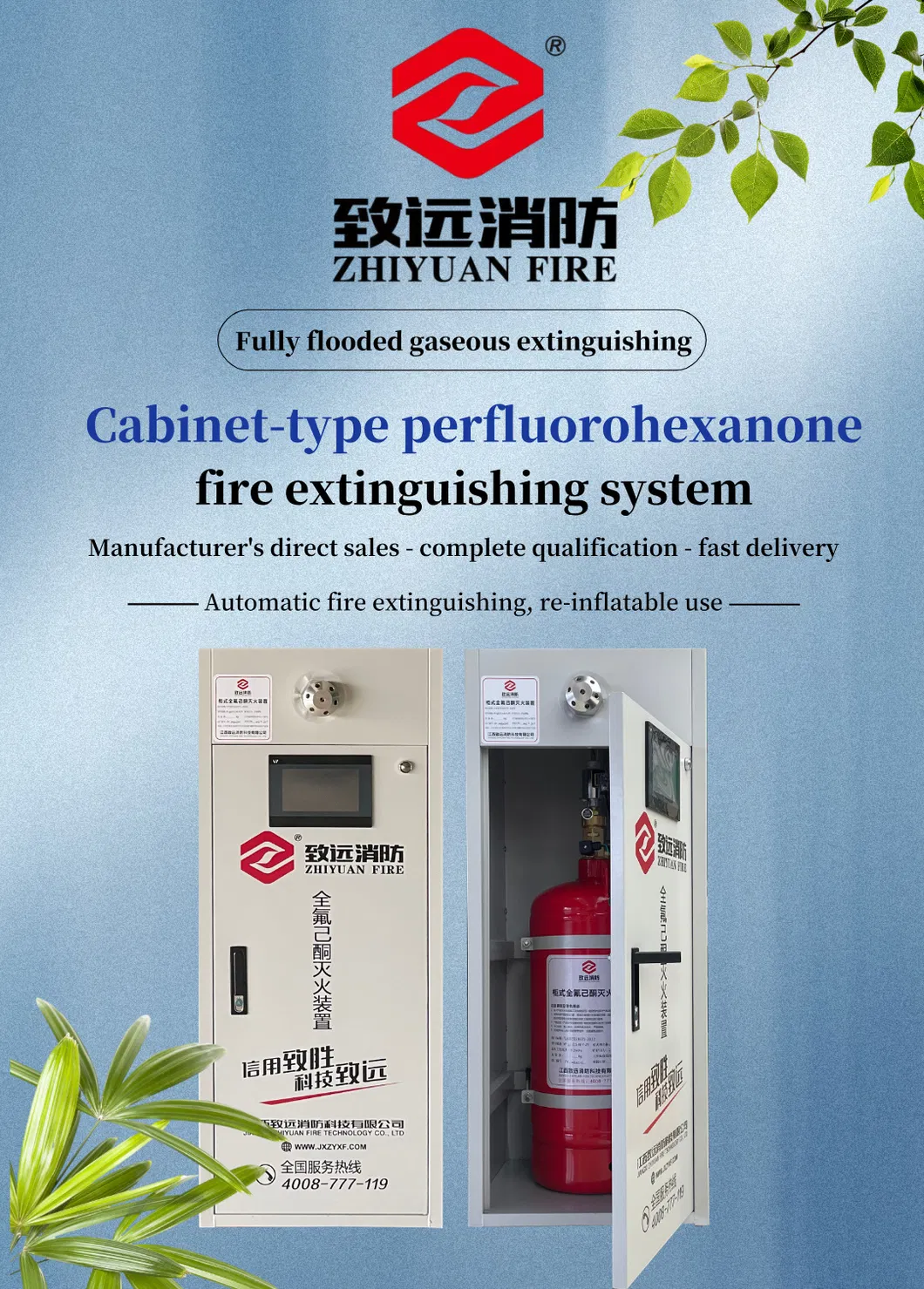

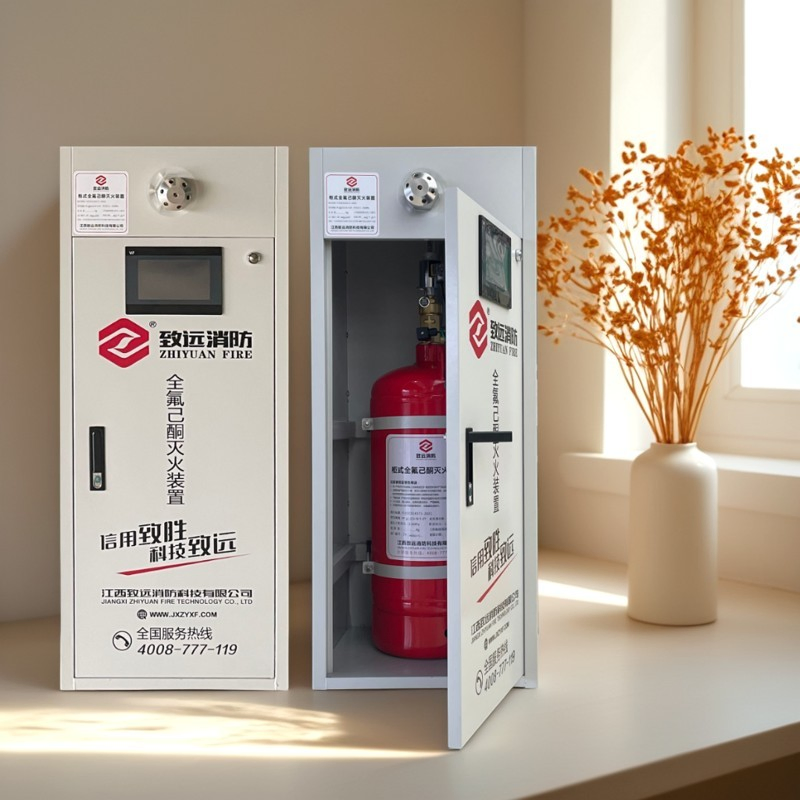

The Cabinet-Type Perfluorohexanone (FK-5-1-12) Fire Extinguishing System is the epitome of modern fire protection. This system offers a clean, highly efficient, and equipment-friendly fire suppression solution that surpasses traditional methods. It seamlessly integrates the cylinder group, control cabinet, actuator, and nozzle into one streamlined and compact unit, making it the perfect choice for environments where piping installation is challenging or space for retrofitting is constrained.
Basic Info.
Model NO.YF40/2.5-N-Y-ZY
Objecta B C D F E
Size35kg
CertificationCCCF, GB8013-2005, CCC, CE
Portable ExtinguisherAutomatic
Effective Range4.5m
Retirement Life10 Years
Dry Powder TypeSuperfine Powder
MaterialStainless Steel
ColorRed Color
Extinguisher StyleIndustrial Grade
Product NameFk-5112 Fire Suppression Systems
Filling Pressure2.5MPa/4.2MPa/5.6MPa
OEMSupport
Key Features & Advantages
  • Clean Agent Solution: Leaves no residue and is ozone-friendly.
  • Rapid Response: Ensuring fast discharge and rapid fire knock-down.
  • Occupant Safety: Completely safe for occupied spaces when designed with correct concentrations.
  • No Secondary Damage: Guarantees no damage to sensitive electronics or valuable archives.

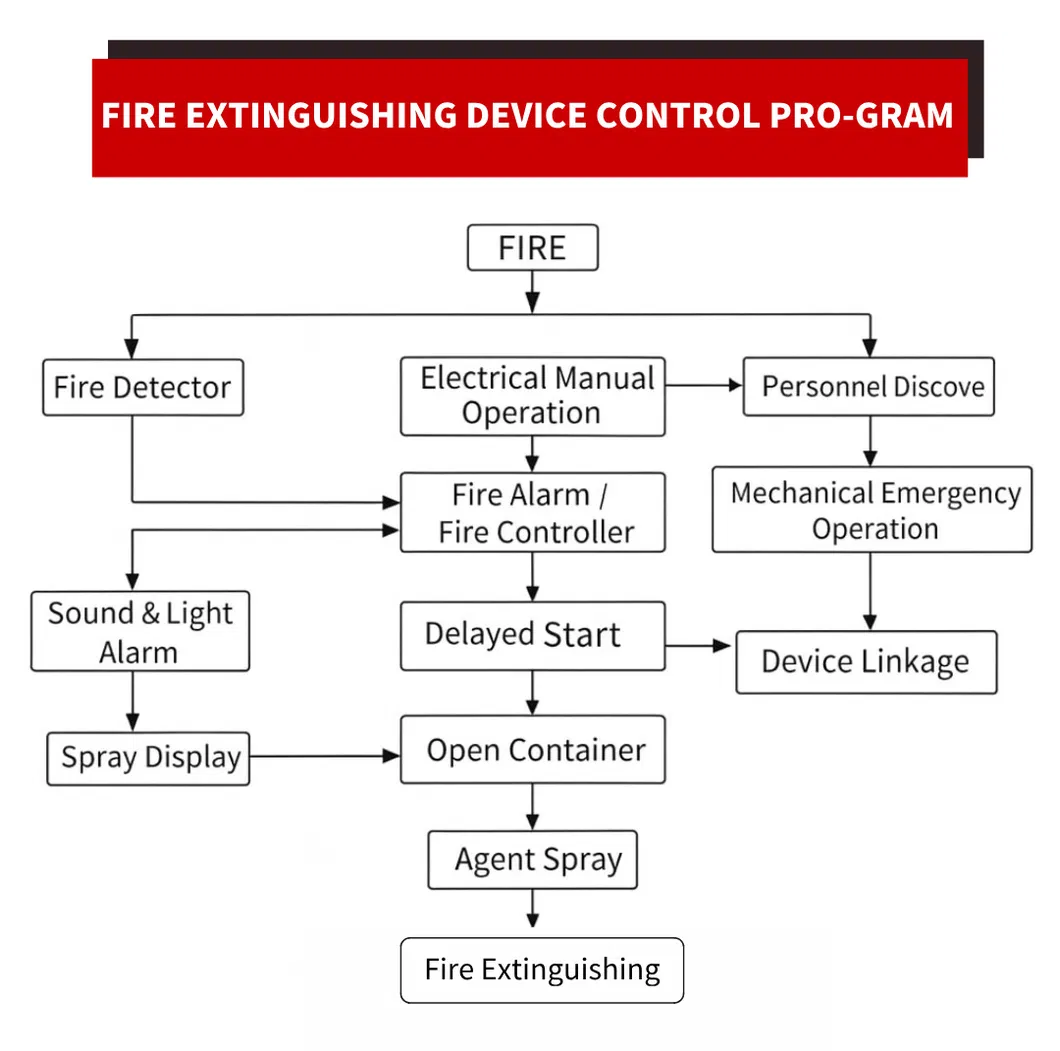

  • Dual Activation: Equipped with both electric start (24 VDC) and manual/mechanical emergency release.
  • Climate Adaptable: Operates efficiently from −10°C to +50°C.
Product Parameters
Item Value / Options
AgentPerfluorohexanone (FK-5-1-12)
Working Pressure3.2 MPa
ActivationElectric 24 VDC / Manual / Mechanical emergency
Operating Temperature−10°C ~ +50°C
Cabinet Size (WxDxH)520×450×1200mm to 520×500×2100mm (per model)
Design Concentration6.0% (typical)

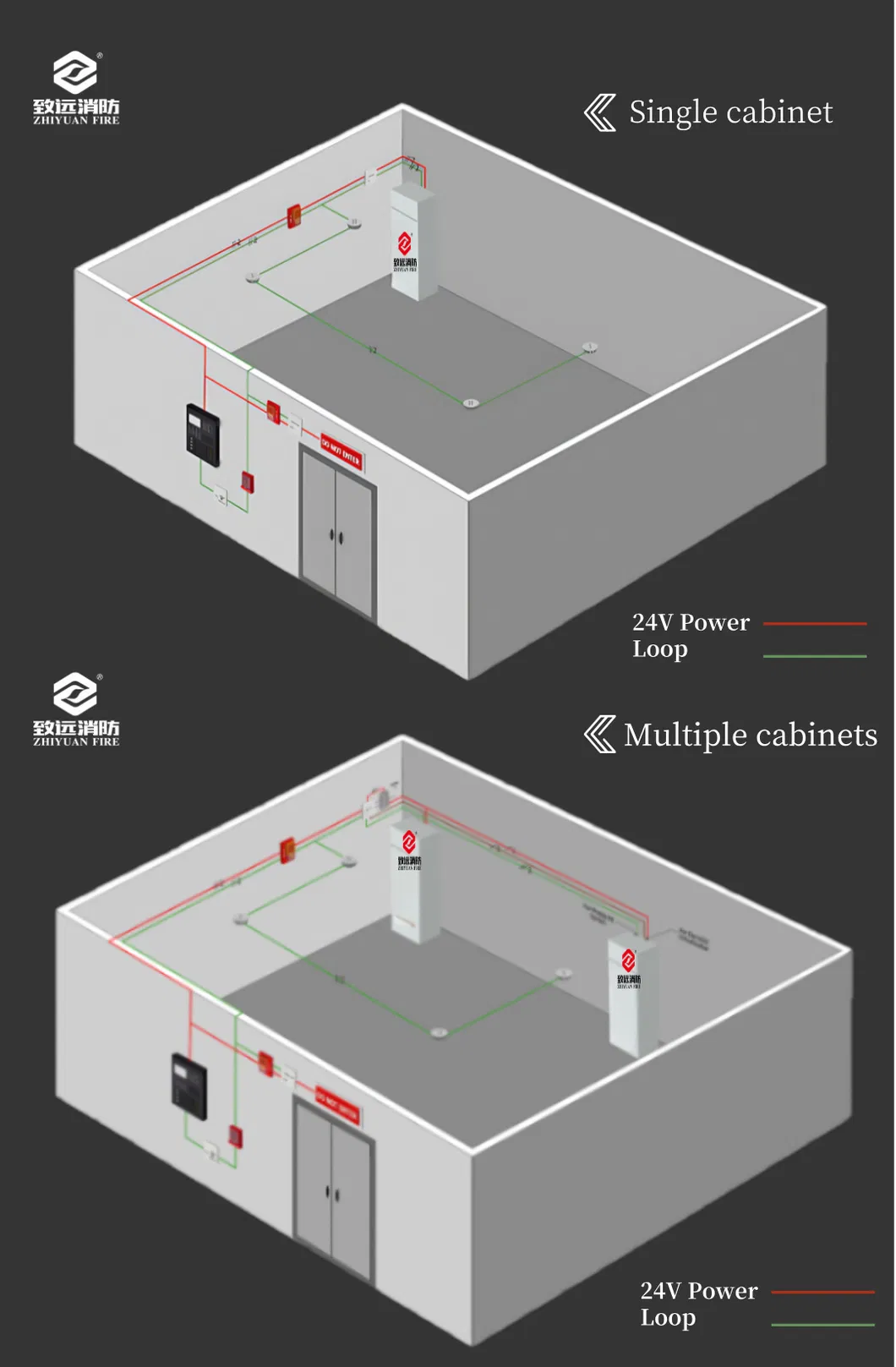

WiringStart & Feedback separated
Technical Specifications
Model Cabinet Size (mm) Agent Weight (kg) Protected Volume (m³) Working Pressure
YF40/2.5-N-Y-ZY520×450×12000-48≤583.2 MPa
YF60/2.5-N-Y-ZY520×450×14000-74≤893.2 MPa
YF70/2.5-N-Y-ZY520×450×14000-87≤1053.2 MPa
YF100/2.5-N-Y-ZY520×500×17000-125≤1523.2 MPa
YF150/2.5-N-Y-ZY520×500×19500-190≤2313.2 MPa
YF180/2.5-N-Y-ZY520×500×21000-228≤2743.2 MPa
Product Display
Manufacturing Excellence
As a forward-thinking high-tech enterprise, we excel in research, design, manufacturing, and service. With elite qualifications in fire facilities engineering and certified special equipment inspection capabilities, we stand as a key player in the fire safety sector. Our modern, standardized workshops and laboratories, paired with state-of-the-art testing equipment, reflect our commitment to innovation. We adopt proprietary core technologies that position us at the industry's cutting edge, ensuring safe and reliable fire protection products across diverse industries.
Frequently Asked Questions
Are you a factory or a trading company?
We are a proudly established factory, dedicated to offering the finest quality products at competitive prices.
Can you accept sample orders?
Certainly! We welcome sample orders at a nominal charge, with customers covering the sample fee and shipping costs.
What is your minimum order quantity?
Our minimum order quantity is 300 rolls or based on specific model requirements.
What is the waiting time for your delivery?
Bulk production typically spans 3-30 days, subject to the specific order quantity.
What are your payment terms?
We accept T/T, L/C, and Western Union for your convenience.
How do you ensure long-term business relationships?
By consistently delivering high quality and competitive pricing, we safeguard our customers' interests and foster sincere partnerships.
