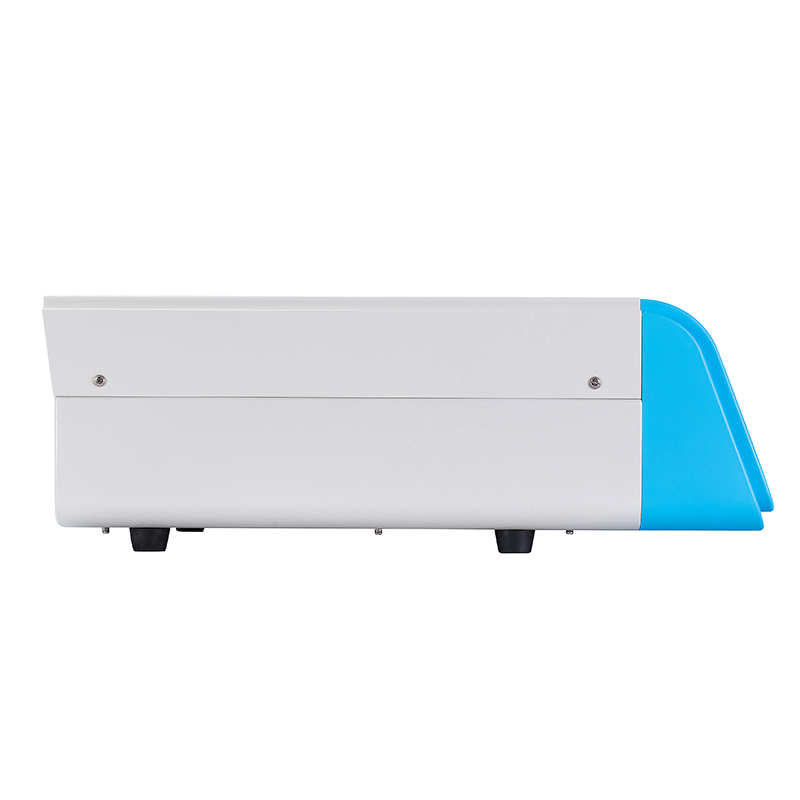

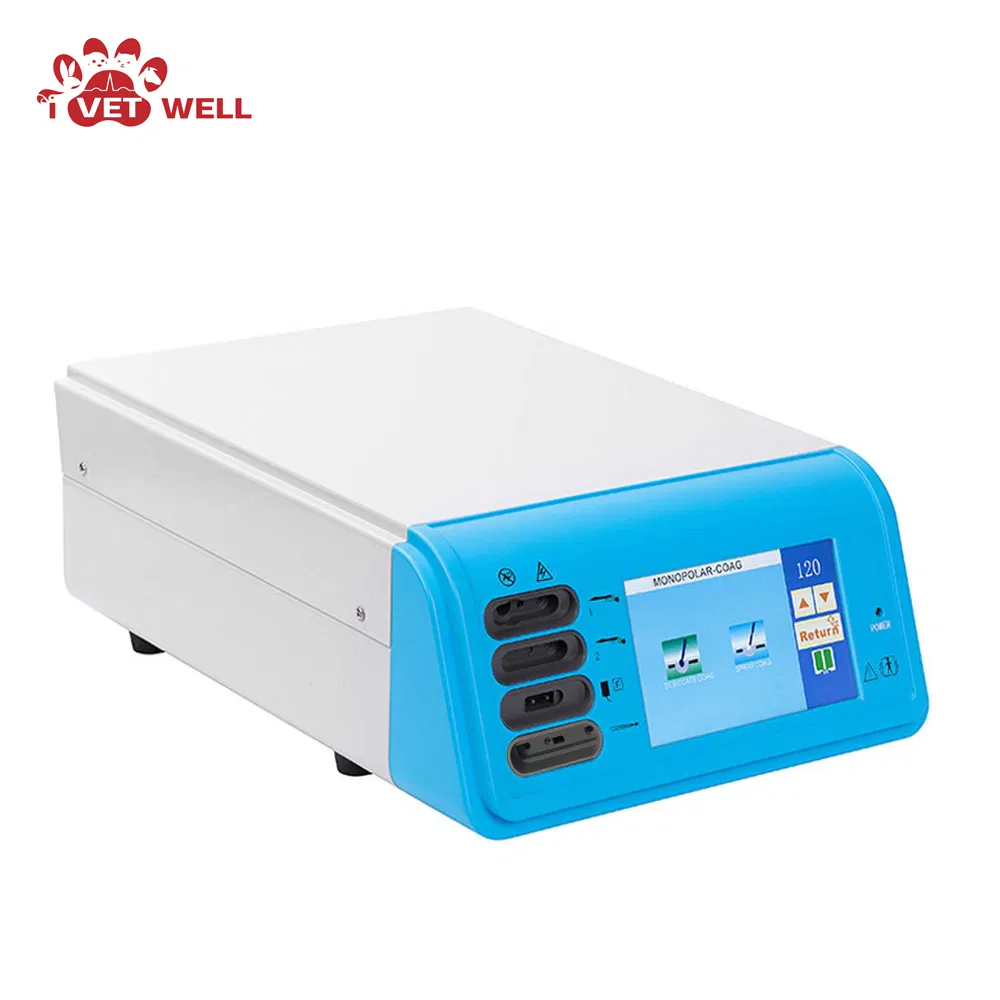

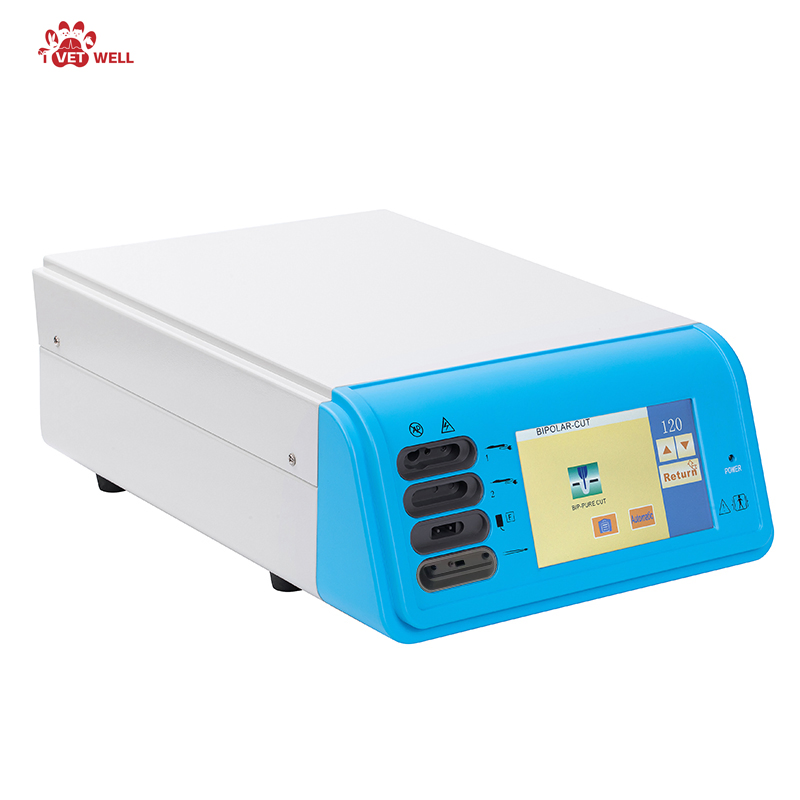

The intuitive design and user-friendly set-up of the Electrosurgical Generator (diathermy) for use in the modern operating room. It features both monopolar and bipolar functions to satisfy all surgery demands with safety, flexibility, reliability, and convenience.

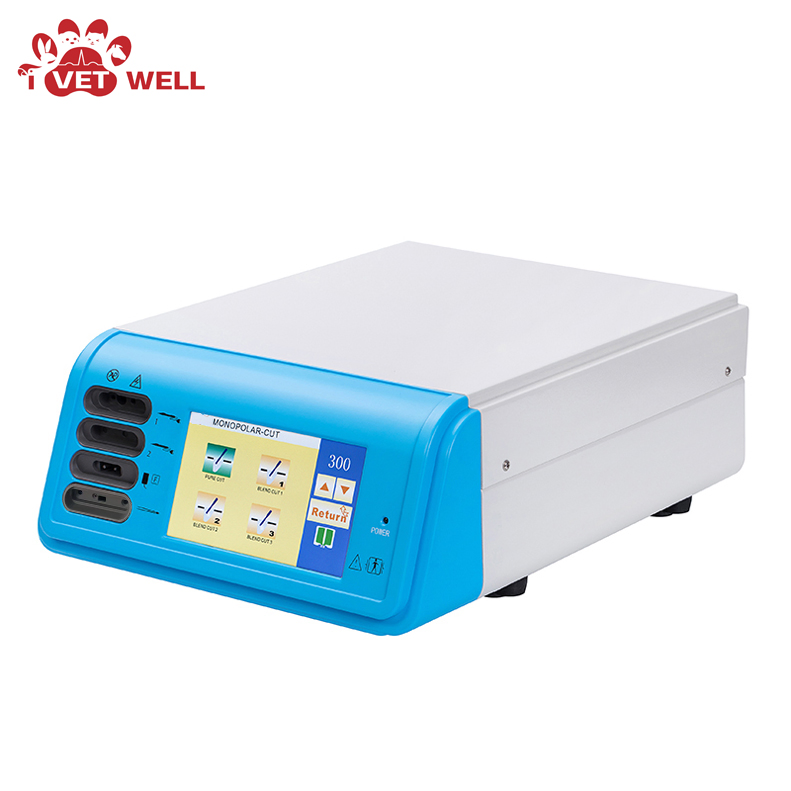

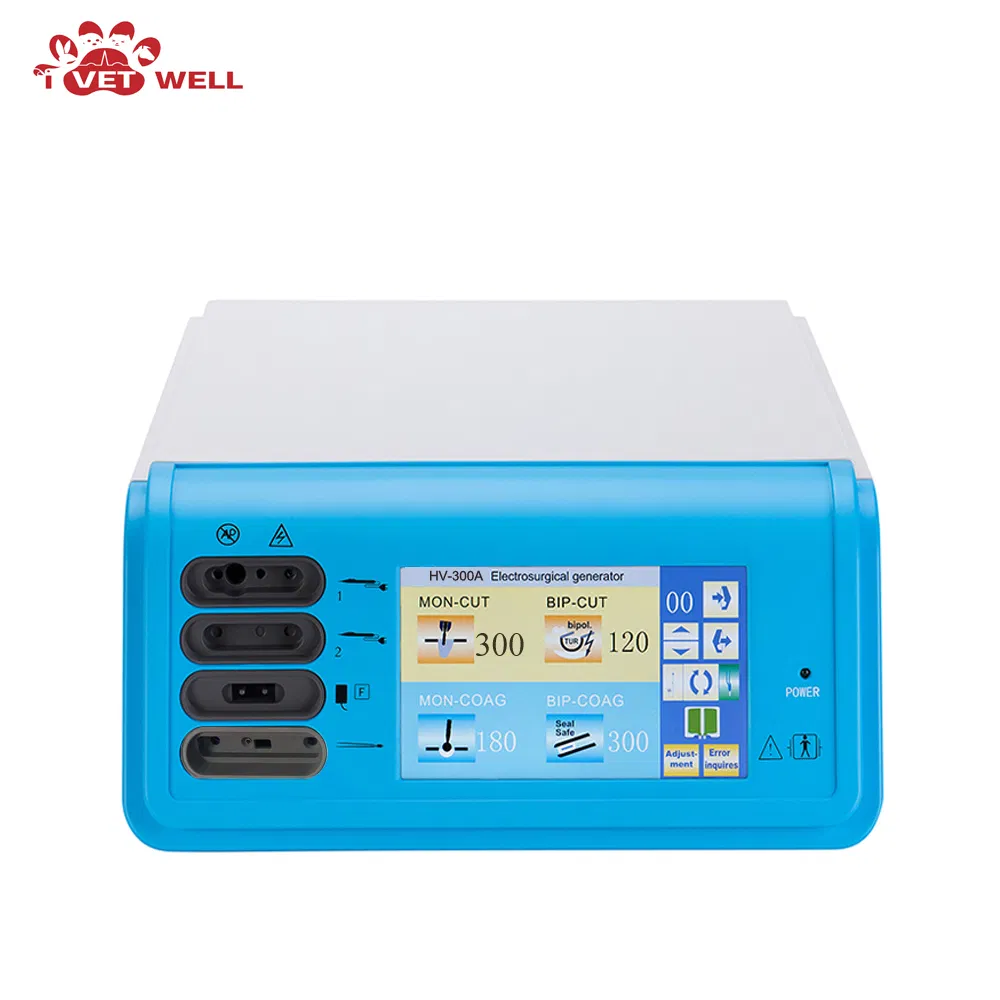

Controlled with a wide 7-inch TFT LCD touch screen, providing clean and sharp image quality. Settings or modes are changed by touching icons directly on the screen, ensuring maximum ease of operation with no extra buttons or knobs.
Continually monitors patient impedance levels and deactivates the generator if a fault in the contact is detected, minimizing the danger of burning incidents.
Samples current and voltage 450,000 times per second, responding to impedance changes in less than 10 milliseconds. This ensures optimum energy output levels are achieved quicker and more accurately across different tissue types.
| Parameter | Details | Leakage Current |
|---|---|---|
| Main Frequency | 512 KHz | Monopolar: < 150mA |
| Power Supply | 100-240V / 50-60Hz | Bipolar: < 60mA |
| Dimension | 34 * 17 * 47cm | Chassis Ground: < 10μA |
| Weight | 6.00 KG | Sink Current: < 50μA |
| Mode | Type | Max Power (Watts) | Rated Load (Ohms) |
|---|---|---|---|
| Bipolar Cut | TURP | 150 | 100 |
| Bipolar Coag | Seal Safe | 300 | 50 |
| Bipolar Coag | Standard | 150 | 100 |
| Monopolar Cut | Pure | 300 | 300 |
| Monopolar Cut | Blend 1 | 250 | 300 |
| Monopolar Coag | Fulgurate | 120 | 300 |
| Monopolar Coag | Spray | 100 | 300 |

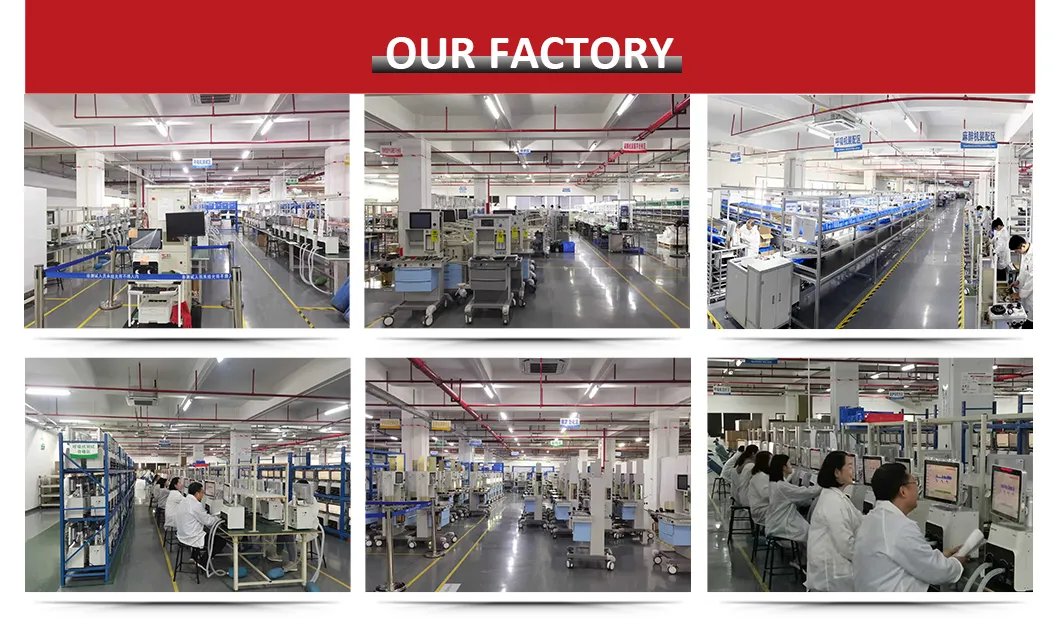

Strictly selected qualified factories supporting OEM/ODM, including logo printing and function adjustments.
3 rounds of inspection: raw material check, production sampling, and pre-shipment full inspection with detailed reports.

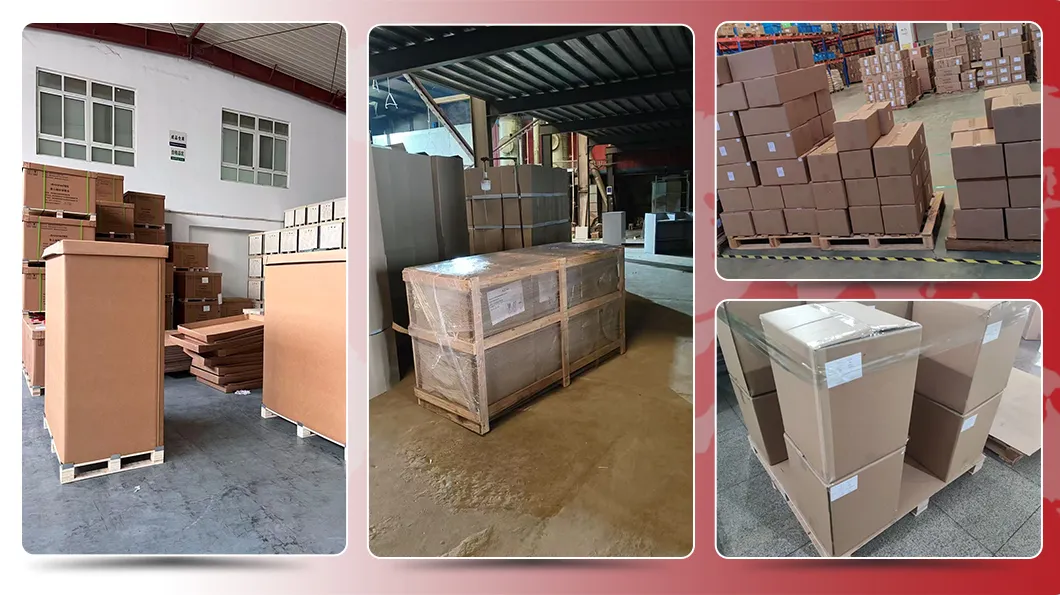

Door-to-door service with top freight forwarders, handling all commercial invoices and certificates of origin.
