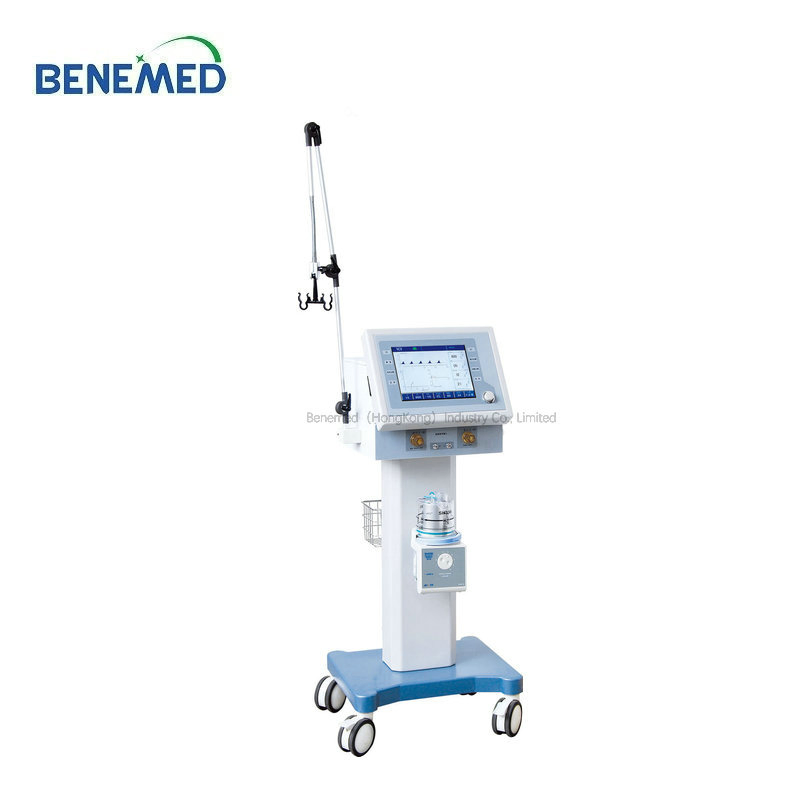

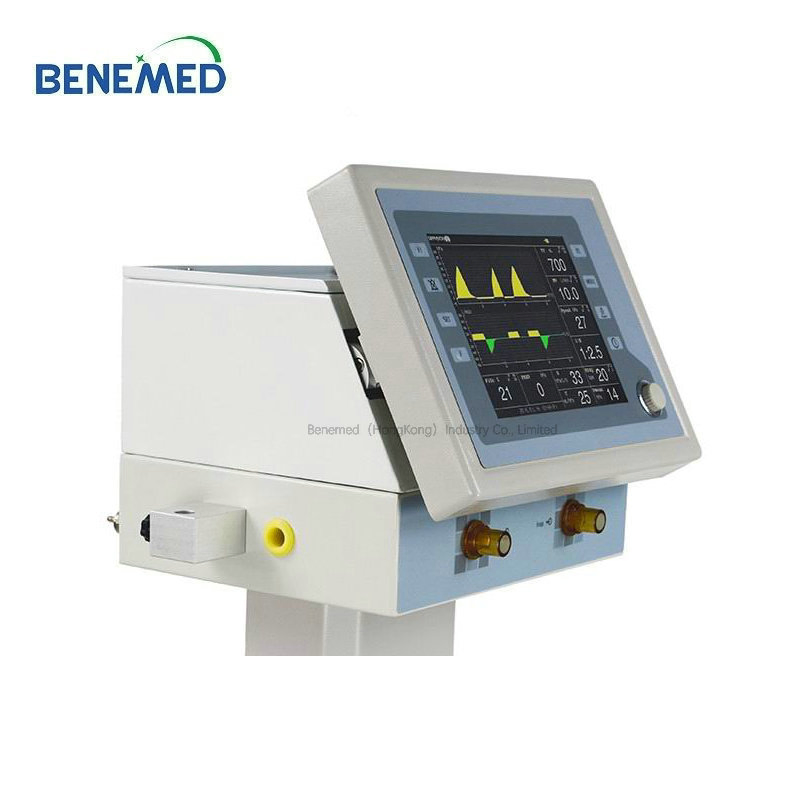

Quality Medical Emergency Equipment ICU Ventilator with Air Compressor

1 / 5

Quality Medical Emergency Equipment ICU Ventilator with Air Compressor

Customization:	Available
Type:	Ventilator
Minute Volume:	Greater Than or Equal to 18L

Send Inquiry

Product Description

Basic Specifications

Model NO.

BM-V900B STA

Back-up Power

at Least 4 Hours

Respiratory Rate

1-99bpm

I:E Ratio

4:1-1:4

Simv Rate

1-20bpm

Trigger Sensitivity

1-10L/M

Pressure Limit

1.0kpa~6.0kpa

Origin

China

HS Code

9018909919

Capacity

1000 units/Month

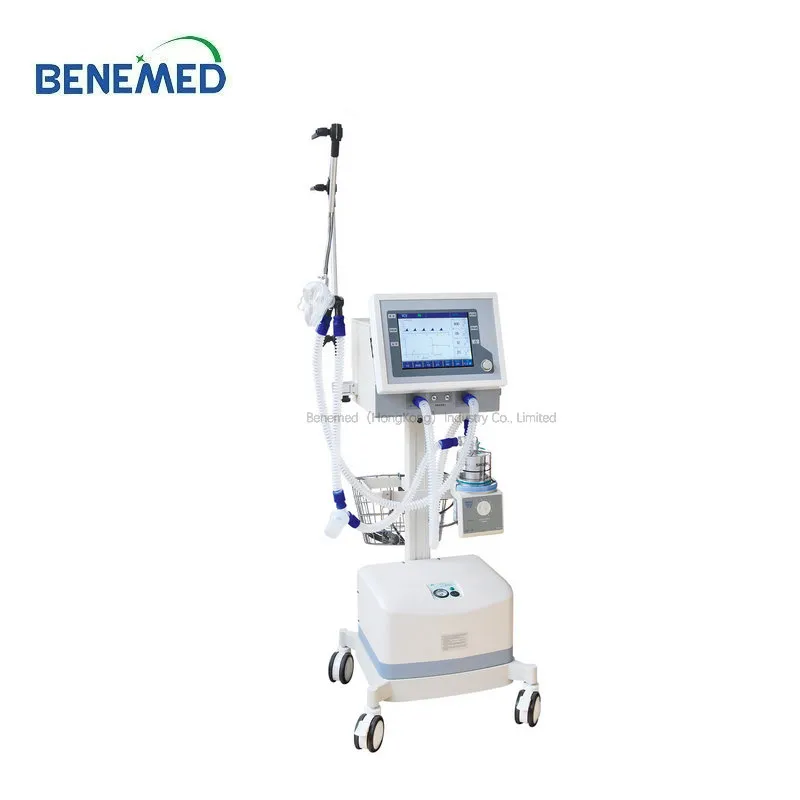

Breathing Machine ICU Mobile Ventilator

BM-V900B (STANDARD & ADVANCED MODEL)

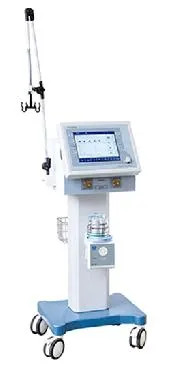

Standard

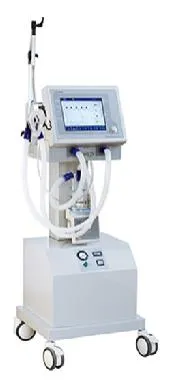

Advanced (Standard Compressor)

Advanced (High-end Compressor)

Common Features

Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open.
Applications: Suitable for emergency clinical resuscitation and respiratory therapy.

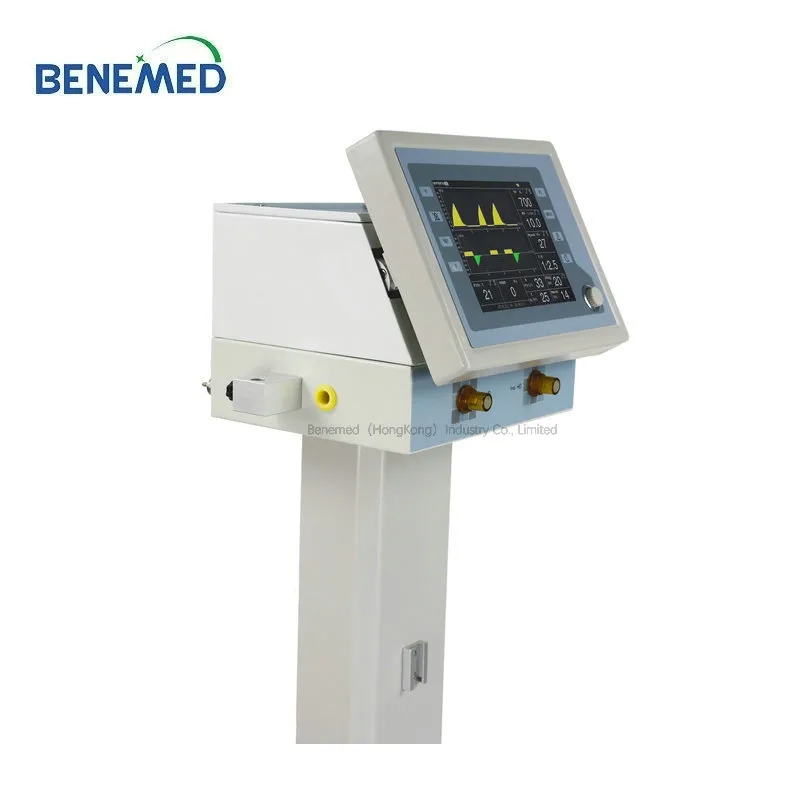

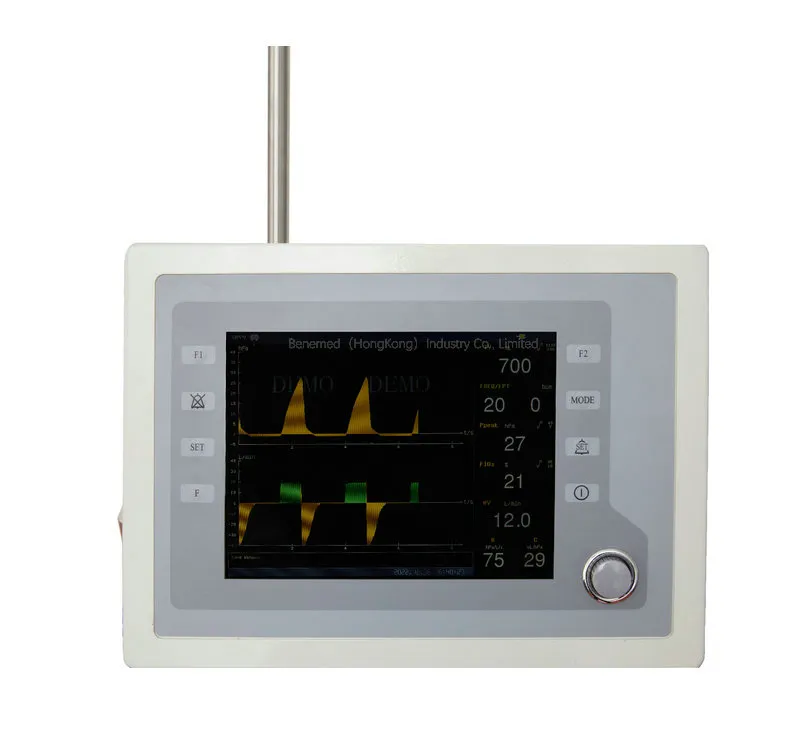

Display: Built-in 10.4 inch color TFT fully adjustable display; shows Pressure-Time, Frequency-Time, Pressure-Volume, Frequency-Volume waveforms.
Trigger Types: Supports both Pressure trigger and Flow trigger.
Sigh Function: Ability to insert 1-8 sigh breaths in every 100 breaths (≥1.5 tidal volume).
Dual Sensors: Features built-in dual electronic flow sensors and dual respiratory modules.
Power Failure Support: Automatically converts to standby mode during AC power outages.
Monitoring: Tracks tidal volume, respiration rate, airway pressure, I:E ratio, and inspiratory/expiratory status.
High Precision: Equipped with an infrared turbine flow sensor for stable and reliable gas flow measurement.
Humidifier: 9 Level adjustable humidifier for patient comfort.
Design: Nonhazardous environmentally friendly frame with automated self-checking and self-calibrating sensors.
Alarms: Comprehensive audible/visual alarms for volume, oxygen concentration, asphyxia, pressure, and power failure.

Advanced Model Exclusive Features

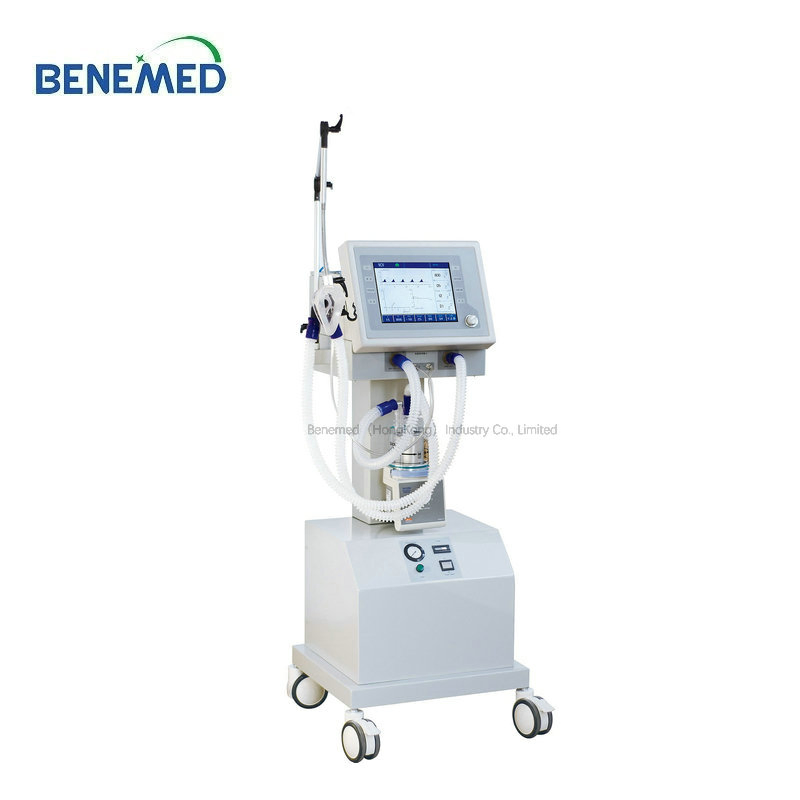

Equipped with professional medical grade air compressor tailored for long clinical times and low noise requirements.

Air Compressor Specifications

Power: 220V AC±10%, 50±1Hz, 700VA with protective grounding.
Output Pressure: 0.4MPa±20%.
Continuous Flow: ≥ 20L/min.
Instantaneous Flow: ≥ 60L/min.

Technical Specifications Comparison

Parameter	900B (Standard Model)	900B (Advanced Model)
Display	10.4 inch high visibility color TFT display
Ventilation Mode	A/C, SIPPV, IPPV, SIMV, PSIMV, PSV, CPAP, PCV, VCV, SPONT MANUAL
Minute Volume	≥ 18L
Back-up Power	At least 4 hours
Tidal Volume	Adjustable: 20-1500ml, Display: 0-2000ml
Respiratory Rate	1-99bpm
I:E Ratio	4:1-1:4
PEEP	0-10cmH2O
SIMV Rate	1-20bpm
Oxygen Concentration	45-100%	21-100%
Pressure Limit	1.0kPa ~ 6.0kPa
Airway Pressure Alarm	Upper: 0.1~6kPa, Lower: 0~5kPa

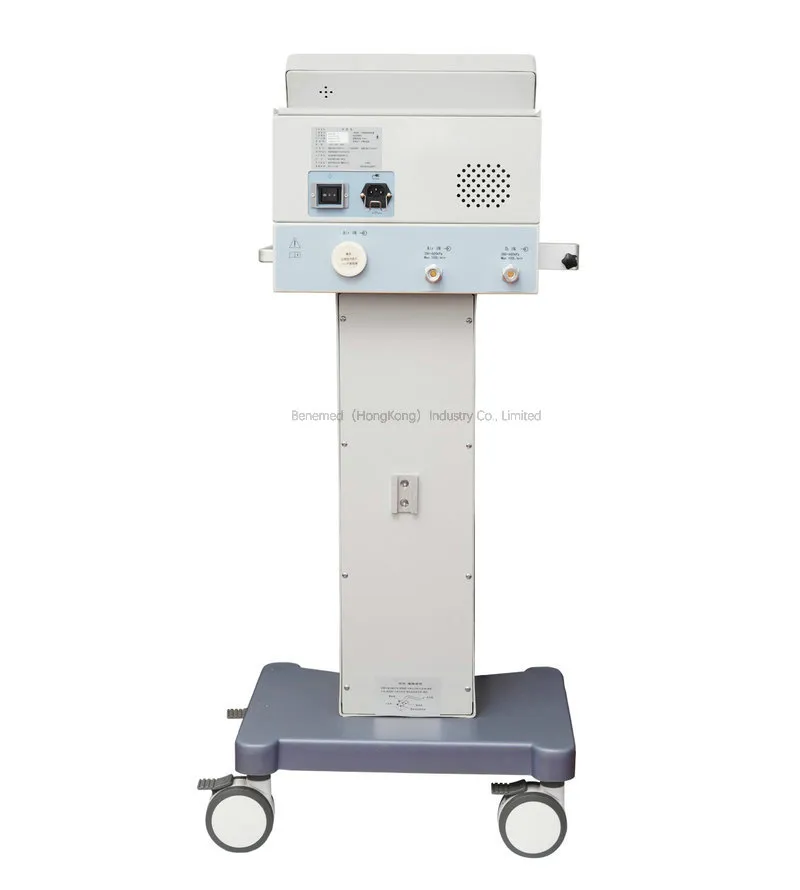

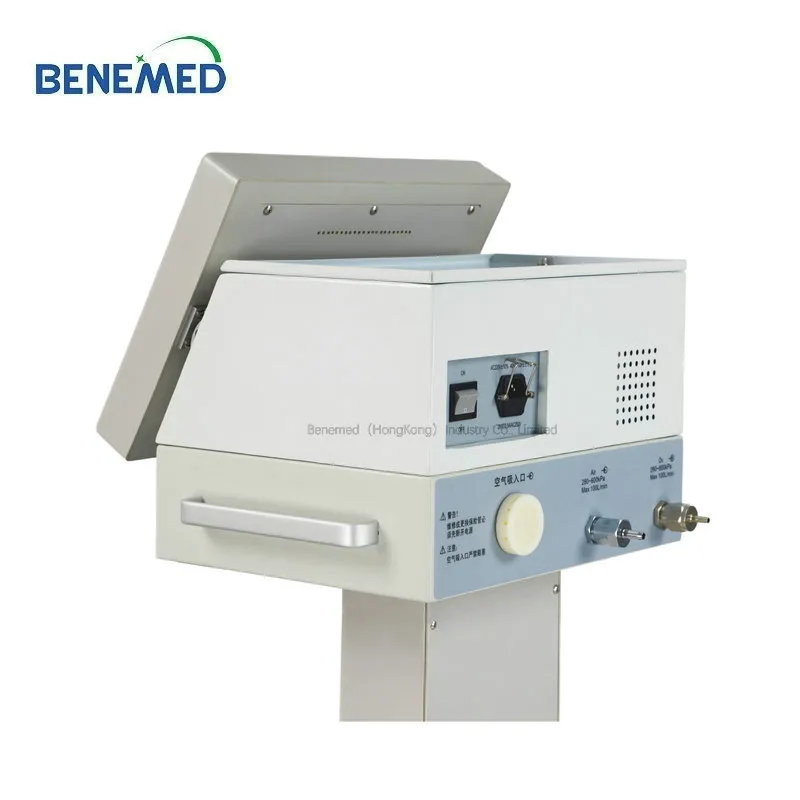

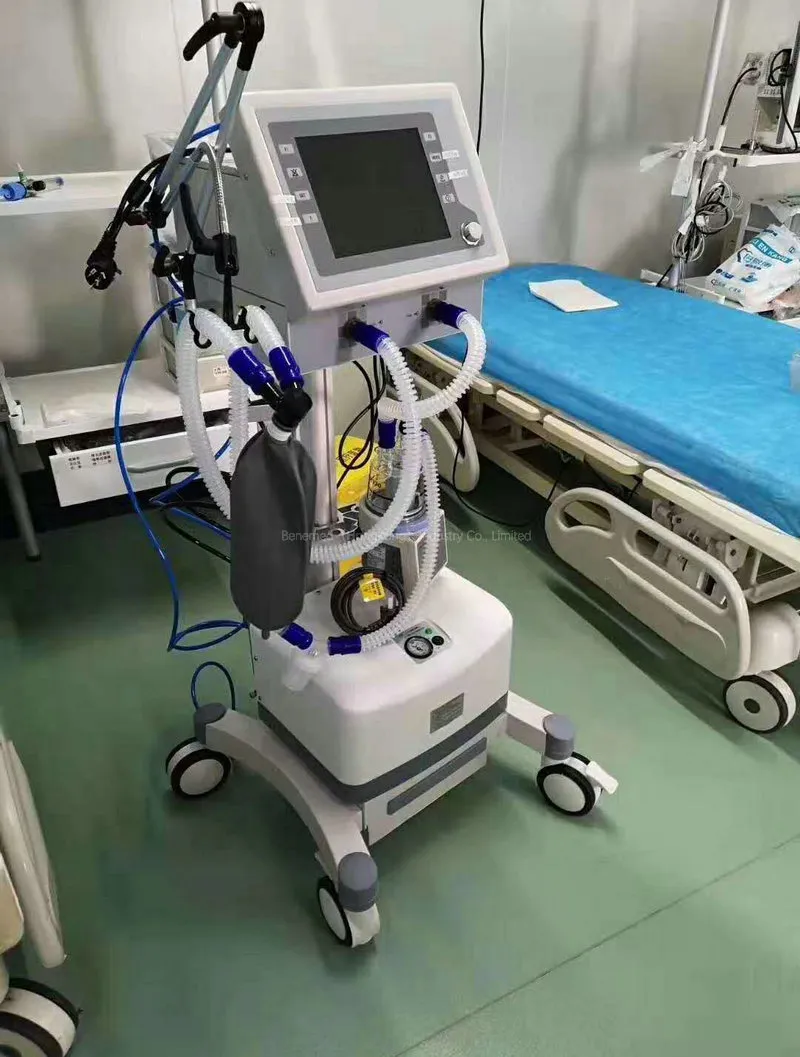

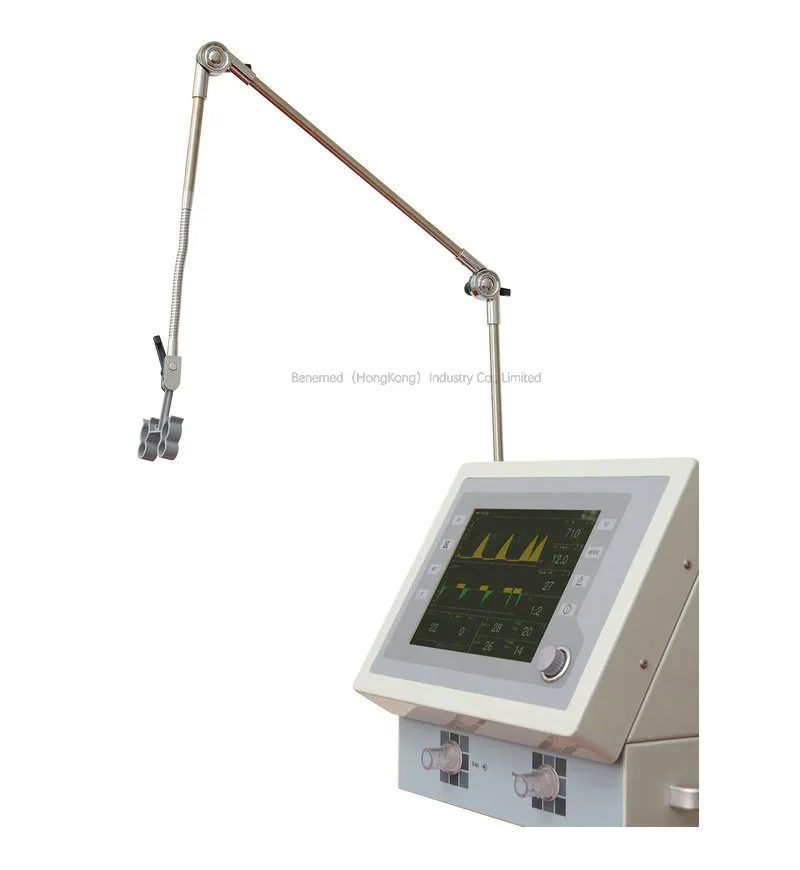

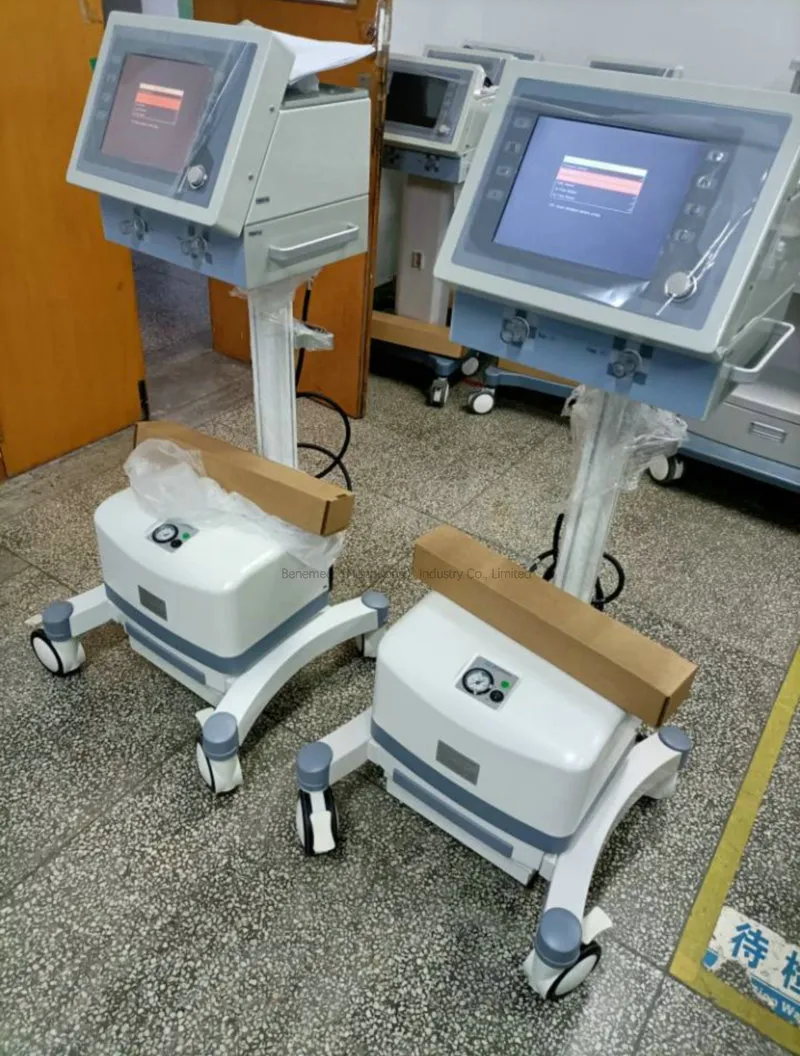

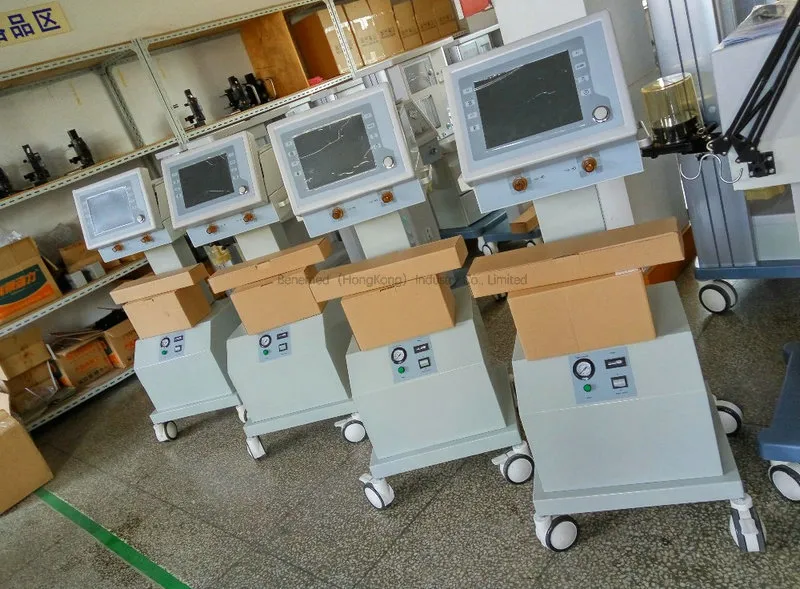

Product Details & Workflow

Frequently Asked Questions

How long does the backup battery last?

The BM-V900B is equipped with a backup power supply that provides at least 4 hours of operation during AC power outages.

What are the main ventilation modes supported?

The device supports a wide range of modes including A/C, SIPPV, IPPV, SIMV, PSIMV, PSV, CPAP, PCV, VCV, and SPONT MANUAL.

What is the difference between the Standard and Advanced models?

The Advanced model includes a professional medical-grade air compressor designed for long clinical use with low noise, and offers a wider oxygen concentration range (21-100%).

What kind of display does the ventilator have?

It features a built-in 10.4-inch color TFT fully adjustable display that can show multiple waveforms simultaneously.

Does the machine include safety alarms?

Yes, it includes audible and visual alarms for tidal volume, oxygen concentration, asphyxia, airway pressure, and power failure.

What is the tidal volume adjustment range?

The tidal volume is adjustable from 20ml to 1500ml, making it suitable for a wide variety of clinical needs.
