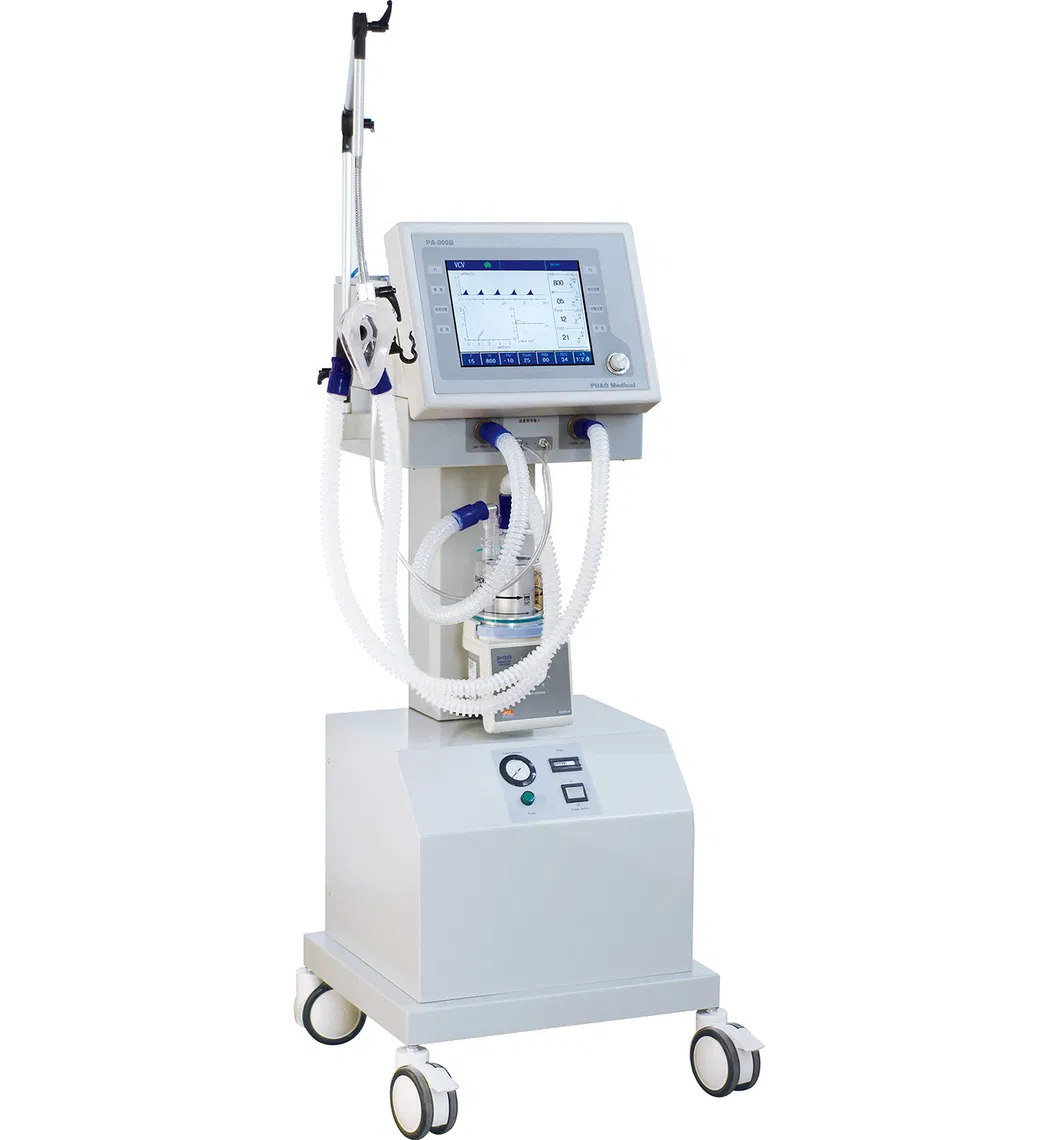

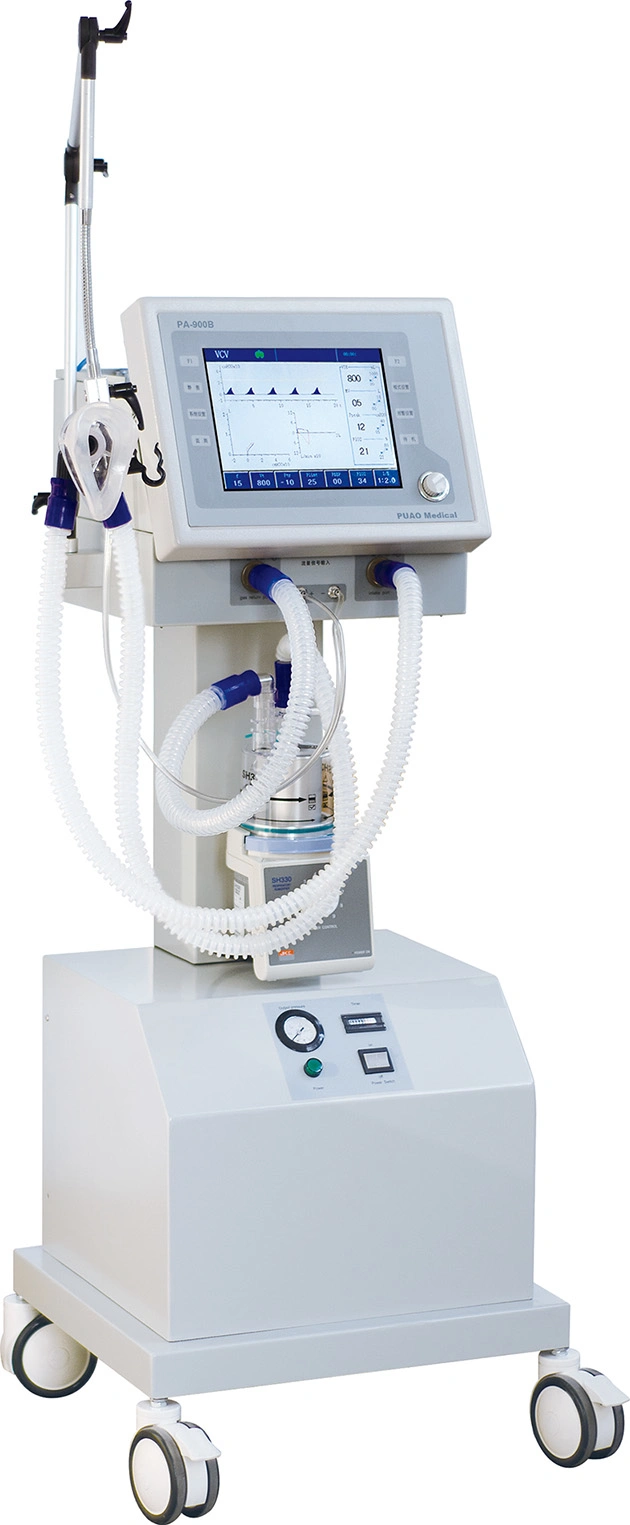

Model Name

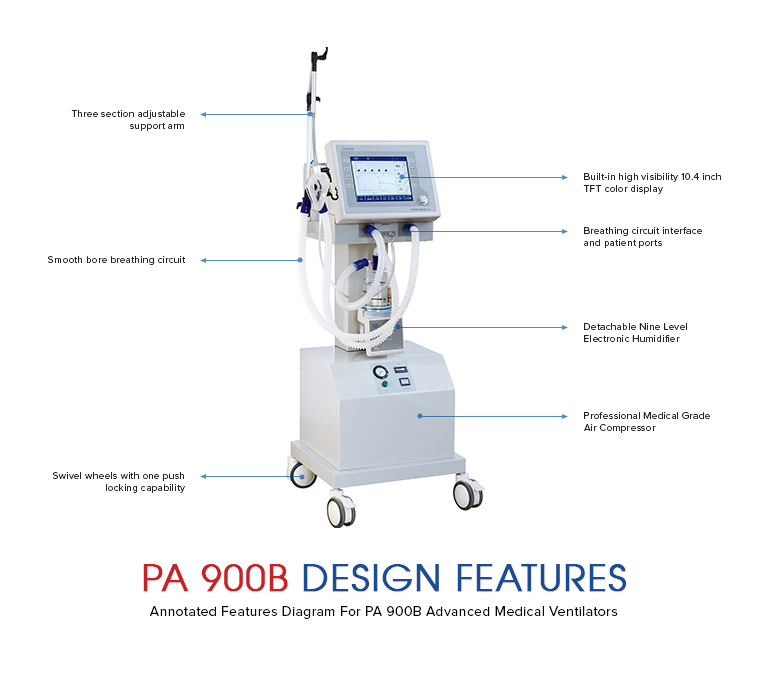

PA-900b Advanced Ventilator
Display
10.4 Inch High Visibility Color TFT
Ventilation Mode
Sippv, Ippv, Simv, Psimv, Psv, CPAP, Pcv
Back up Power
At least 4 Hours
Respiratory Rate
1 ~ 99bpm
1
Versatile Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open systems suitable for emergency clinical resuscitation and respiratory therapy.
2

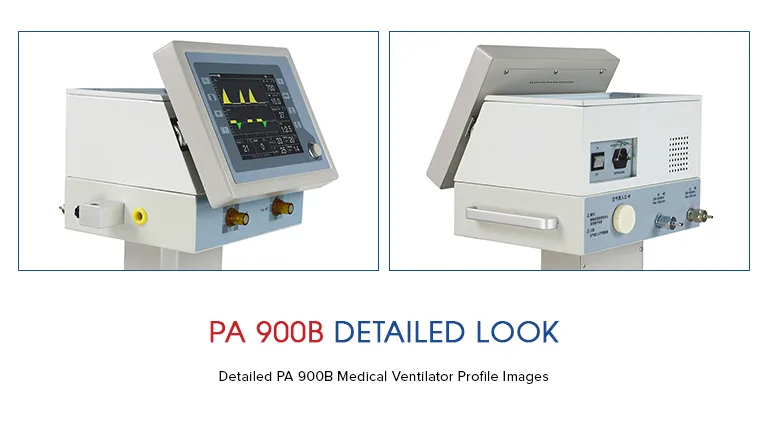

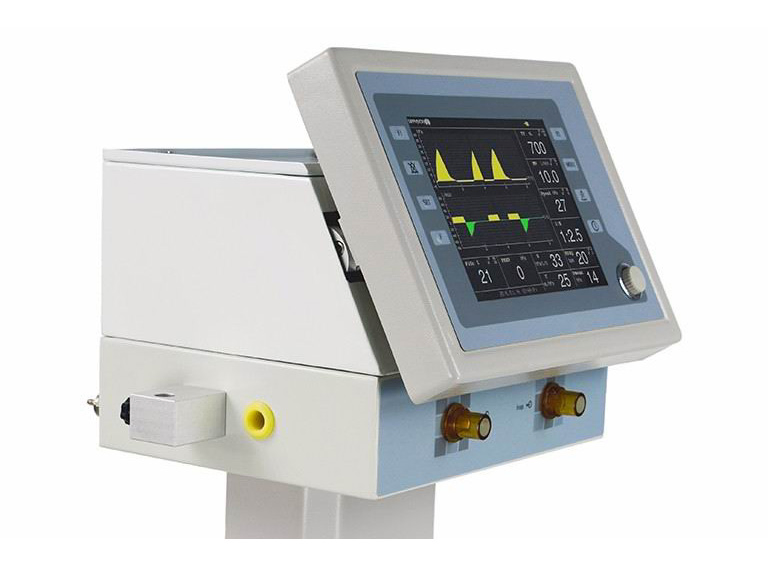

Advanced Display: Built-in 10.4 inch color TFT fully adjustable display, capable of showing Pressure-Time, Frequency-Time, Pressure-Volume, Frequency-Volume and any two waveforms simultaneously.
3
Intelligent Triggering: Supports both Pressure trigger and Flow trigger types for better patient synchrony.
4
Safety Monitoring: Comprehensive audible and visual alarms for ventilation volume, tidal volume, oxygen concentration, asphyxia, airway pressure, and power failure.
5
Precision Sensors: Equipped with infrared turbine flow sensors to precisely measure gas flows with high stability and reliability.
Frequently Asked Questions
What are the primary ventilation modes supported by PA-900B?
The PA-900B supports a comprehensive range of modes including A/C, SIPPV, IPPV, SIMV, PSIMV, PSV, CPAP, PCV, VCV, and SPONT MANUAL, making it suitable for various clinical scenarios.
How long does the backup battery last?
The device is equipped with a backup power supply that provides at least 4 hours of operation during AC power outages, ensuring continuous patient support.
What is the tidal volume adjustment range?
The tidal volume is highly adjustable, ranging from 20ml to 1500ml, allowing the ventilator to be used for a wide range of patient sizes.
Does the advanced model include an air compressor?
Yes, the Advanced Model of the PA-900B is equipped with a professional medical-grade air compressor specifically designed for long-term clinical use with low noise output.
What type of display does the unit feature?
It features a built-in 10.4-inch high-visibility color TFT display that is fully adjustable and capable of displaying multiple waveforms simultaneously.
Are there safety alarms built into the system?
Yes, the system includes both audible and visual alarms for parameters such as ventilation volume, oxygen concentration, airway pressure, asphyxia, and power failure.
