Practicalrespiratory Medical Equipment ICU Portable Ventilator Jinling PA900b

1 / 5

Practicalrespiratory Medical Equipment ICU Portable Ventilator Jinling PA900b

Customization:	Available
Type:	Emergency Ventilator
Used for:	Adult, Child, Infant

Send Inquiry

Product Description

Basic Information

Model NO. PA900B

Transport Package Cartons for Export

Specification 0.52 CBM; 77 GS

Product Description

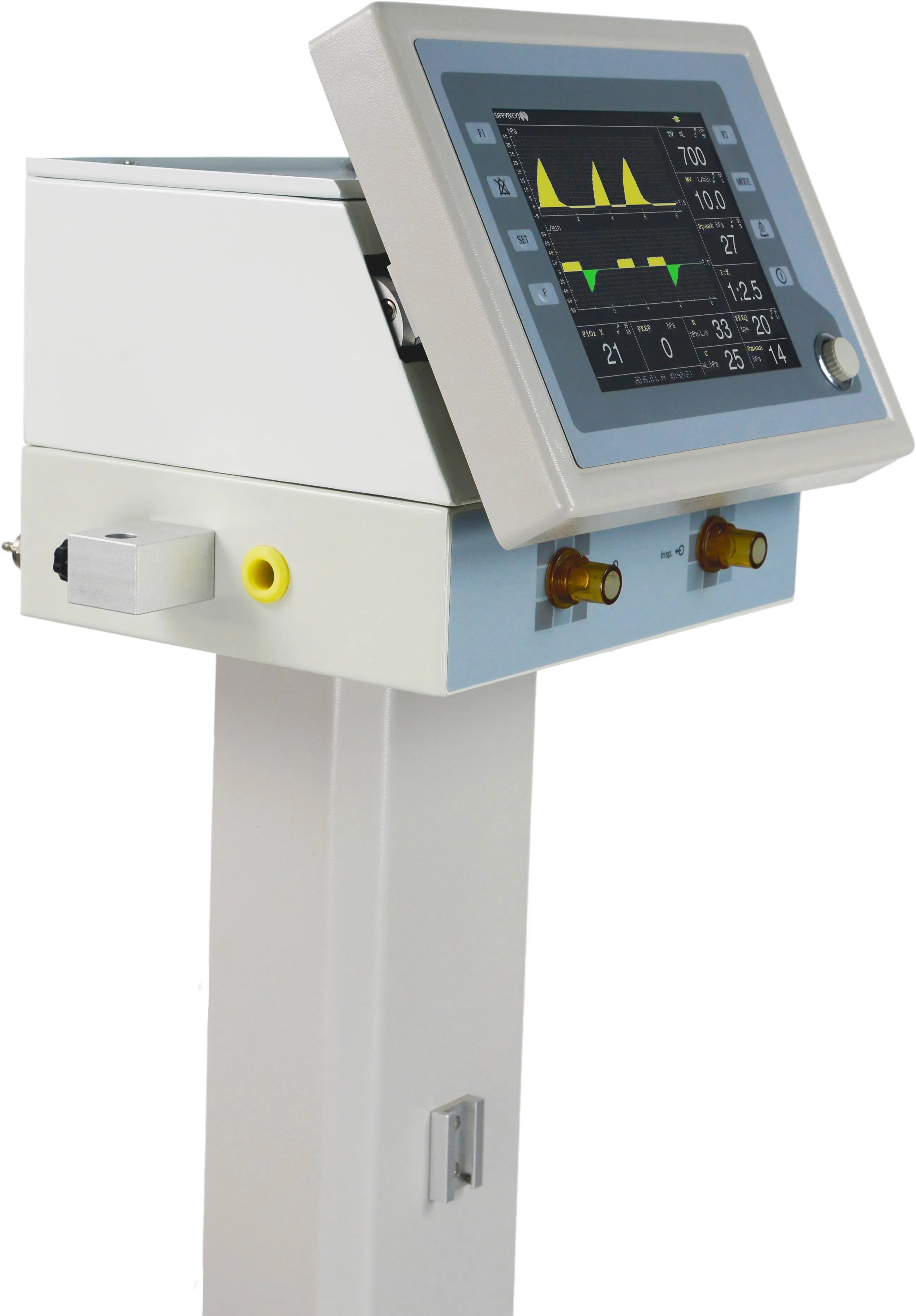

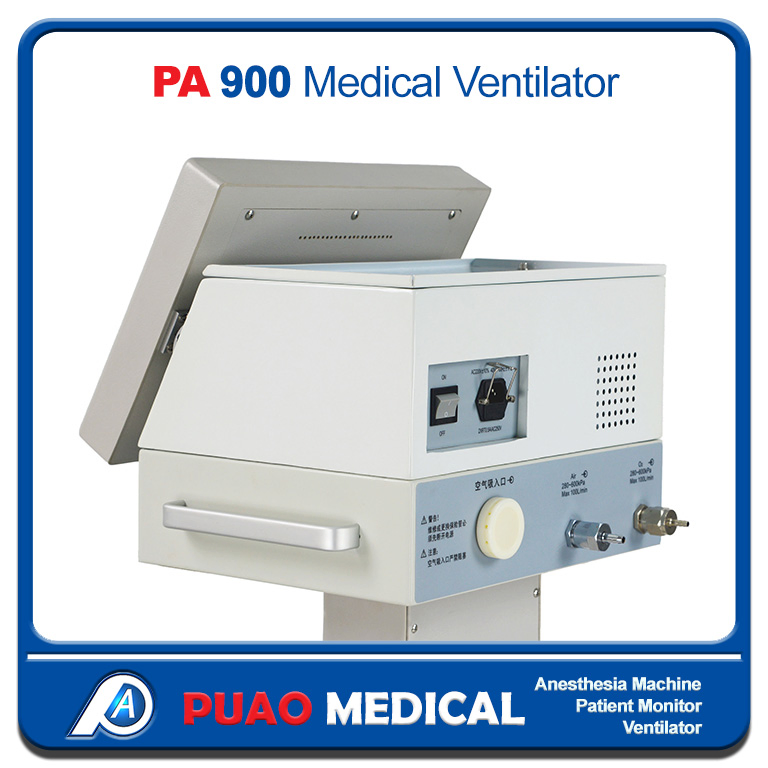

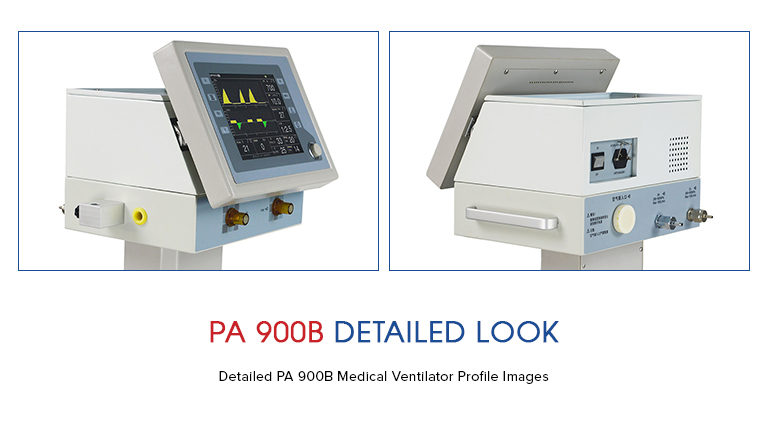

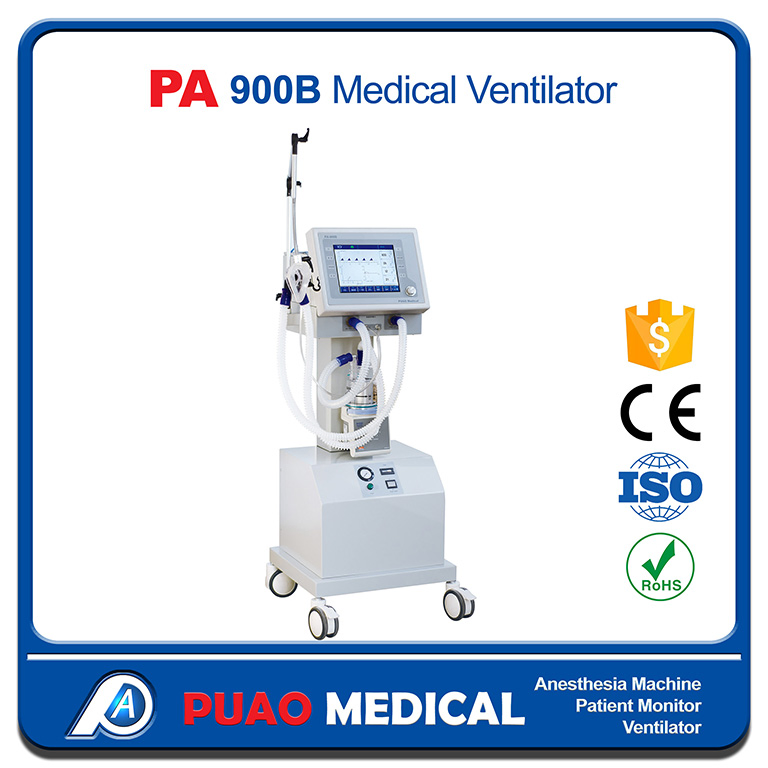

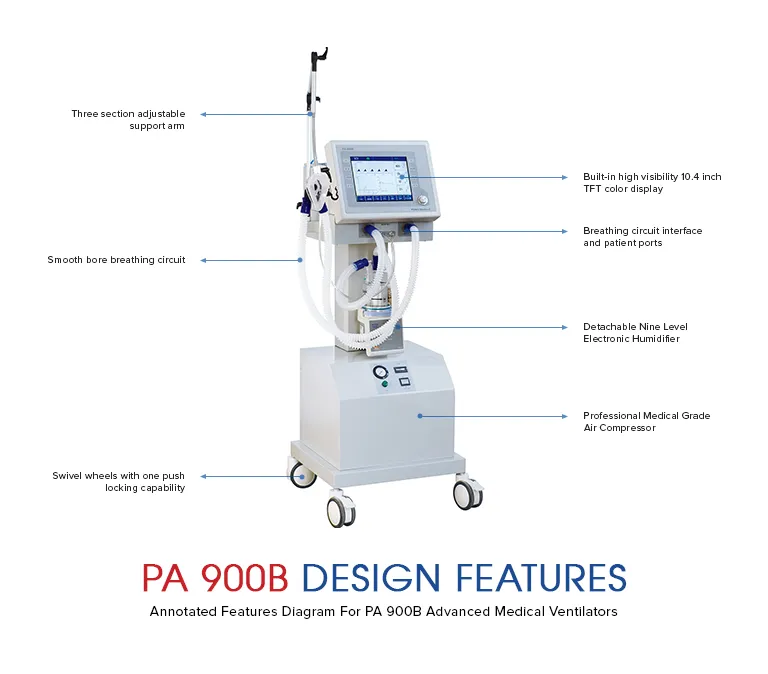

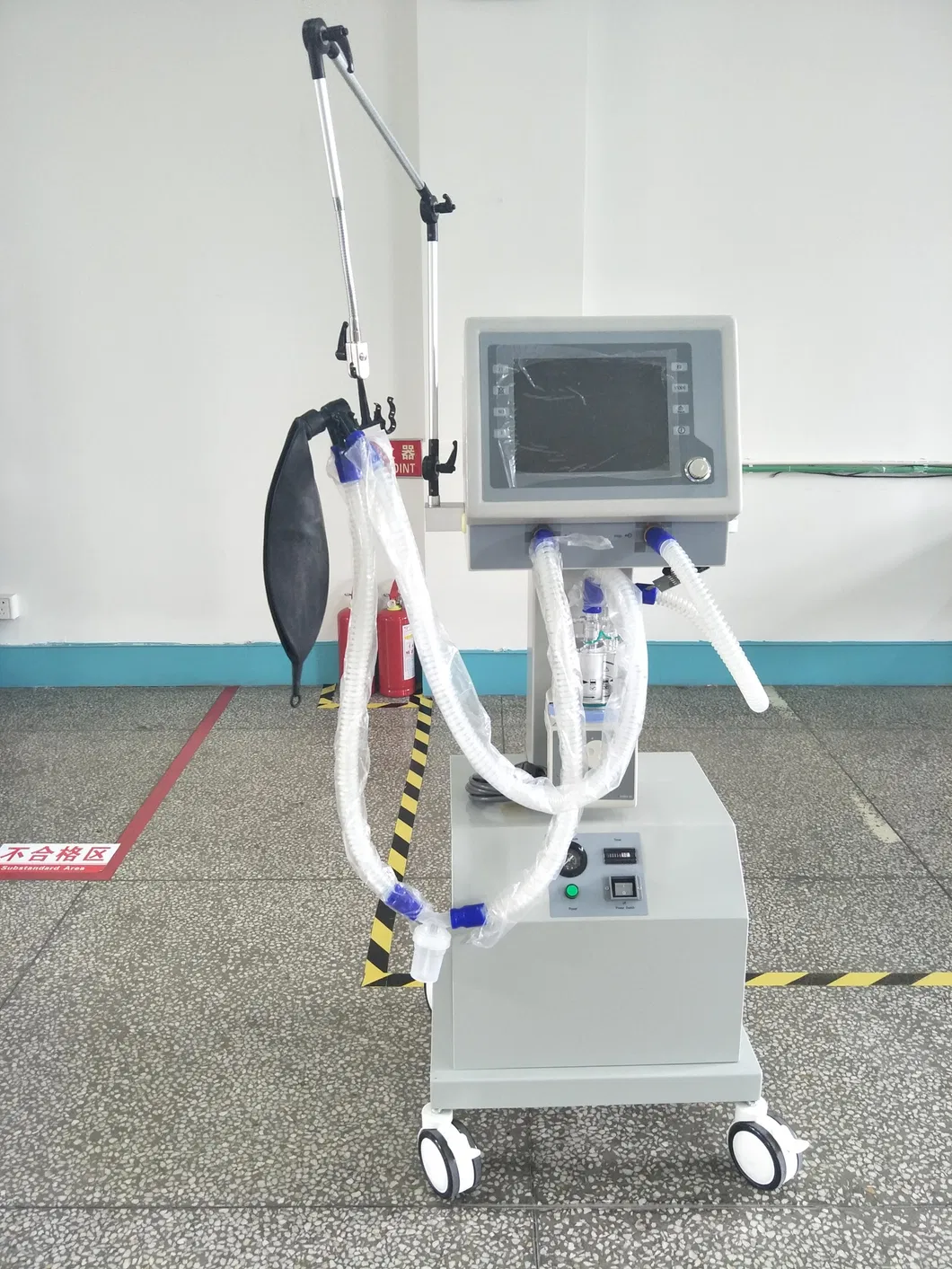

Respiratory Medical Equipment ICU Portable Ventilator PA-900B with Air Compressor

Common Features

Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
Can be used for emergency clinical resuscitation and respiratory therapy
Display: Built-in 10.4 inch color TFT fully adjustable display

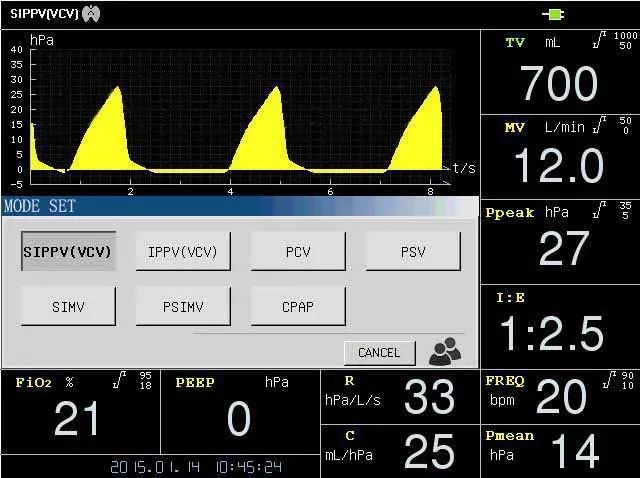

Waveform Display: Pressure-Time, Frequency-Time, Pressure-Volume, Frequency-Volume
Trigger Types: Pressure trigger, Flow trigger
Sigh Function: 1-8 sigh breaths in every 100 breaths
Dual electronic flow sensors and dual respiratory modules
Power Failure Support: Automatically converts to standby mode during AC outages
Monitored Parameters: Tidal volume, respiration rate, airway pressure, I:E ratio, etc.
Infrared turbine flow sensor for precise and stable gas flow measurement

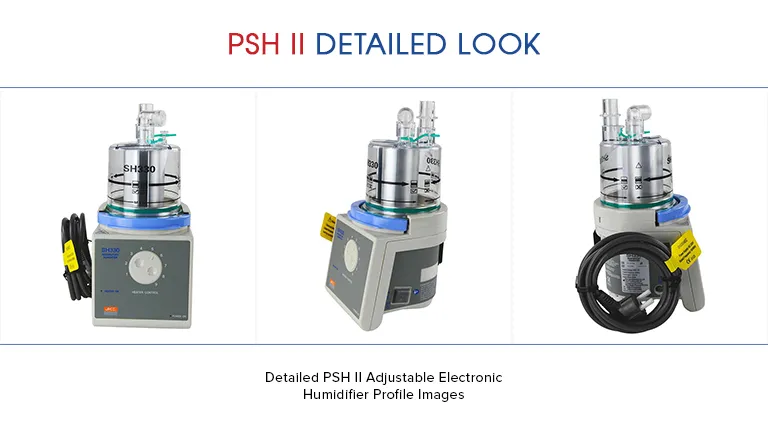

Nine Level adjustable humidifier
Automated self-checking and self-calibrating sensors during startup
Comprehensive Alarms: Ventilation volume, oxygen concentration, asphyxia, airway pressure, etc.

Advanced Model Exclusive Features

Professional medical grade air compressor tailored for long clinical times
Low noise requirements for ICU environments
Output Gas Pressure: 0.4MPa±20%
Continuous output gas flow ≥ 20L/min; Instantaneous ≥ 60L/min

Technical Specifications

Model	PA-900B (Advanced Model)
Display	10.4 inch high visibility color TFT display
Ventilation Mode	A/C, SIPPV, IPPV, SIMV, PSIMV, PSV, CPAP, PCV, VCV, SPONT MANUAL
Minute Volume	Greater than or equal to 18L
Back-up Power Supply	At least 4 hours
Tidal Volume	Adjustable range: 20-1500ml, Display range: 0-2000ml
Respiratory Rate	1-99bpm
I:E Ratio	4:1 - 1:4
PEEP	0-10cm H2O
SIMV Rate	1-20bpm
Inspiratory Pressure Trigger	-10 - 10cm H2O
Trigger Sensitivity (flow)	1-10L/m
Adjustable Oxygen Concentration	21-100%
Gas Supply Requirement	280~600 kPa medical grade oxygen and compressed air
Pressure Limit	1.0kPa ~ 6.0kPa

Frequently Asked Questions

What ventilation modes does the PA-900B support?

The PA-900B supports a wide range of modes including A/C, SIPPV, IPPV, SIMV, PSIMV, PSV, CPAP, PCV, VCV, and SPONT MANUAL, making it suitable for various clinical needs.

How long can the backup battery last?

The device is equipped with a high-capacity back-up power supply that ensures at least 4 hours of continuous operation during power outages.

Is the display adjustable for better visibility?

Yes, it features a 10.4-inch color TFT display that is fully adjustable, allowing medical staff to monitor waveforms and parameters clearly from different angles.

What is the range for tidal volume adjustment?

The tidal volume can be adjusted from 20ml to 1500ml, providing flexibility for both pediatric and adult patients.

Does this model include an air compressor?

Yes, the Advanced Model PA-900B comes with a professional medical-grade air compressor designed for low noise and long-term clinical reliability.

What safety alarms are integrated into the system?

The ventilator includes audible and visual alarms for ventilation volume, oxygen concentration, airway pressure, asphyxia, power failure, and intubation disconnection.
