Product Description

Basic Specification

Model NO.

BVM-8

Certification

CE, ISO13485

Group

Adult and Children

N.W.

1kg

LCD Size

85mm * 30mm

Parameter

SpO2, Pulse Rate, NIBP

Battery

Build in Rechargeable up to 15 Hours Running

Application

Adult, Pediatric, Infant, Neonate

Power

AC:100V-240V 50/60 Hz

Transport Package

Carton with Foam

Specification

210mmx170mmx75mm

Origin

China

HS Code

9018199000

Production Capacity

5000PCS Per Month

Product Description

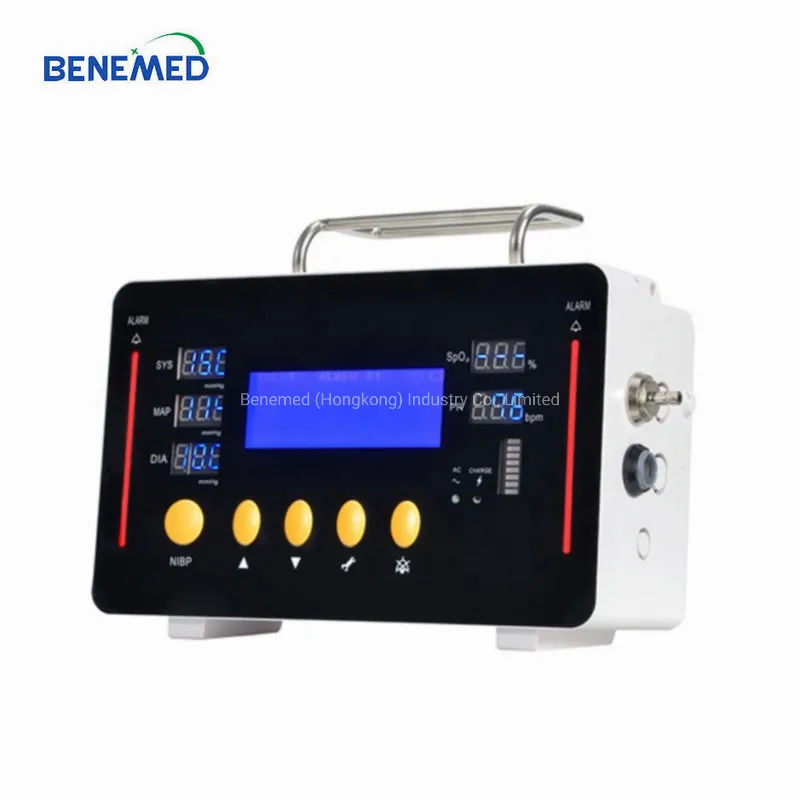

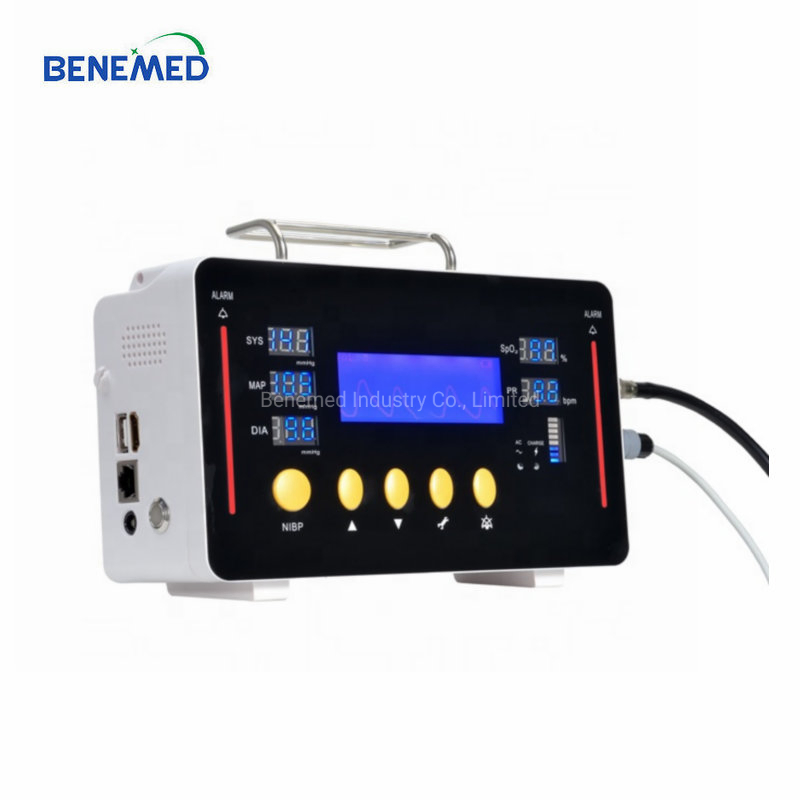

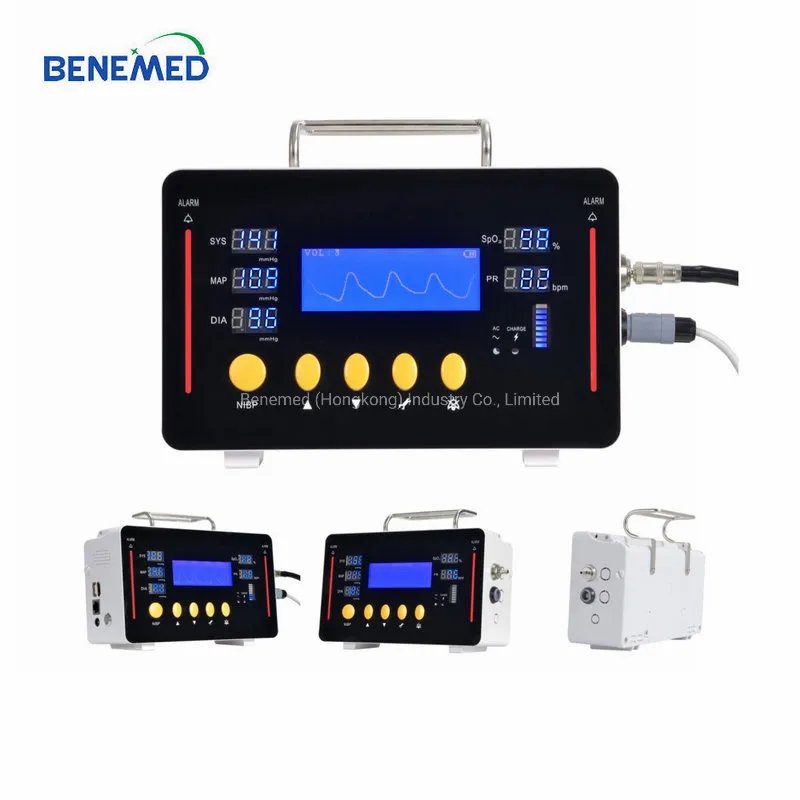

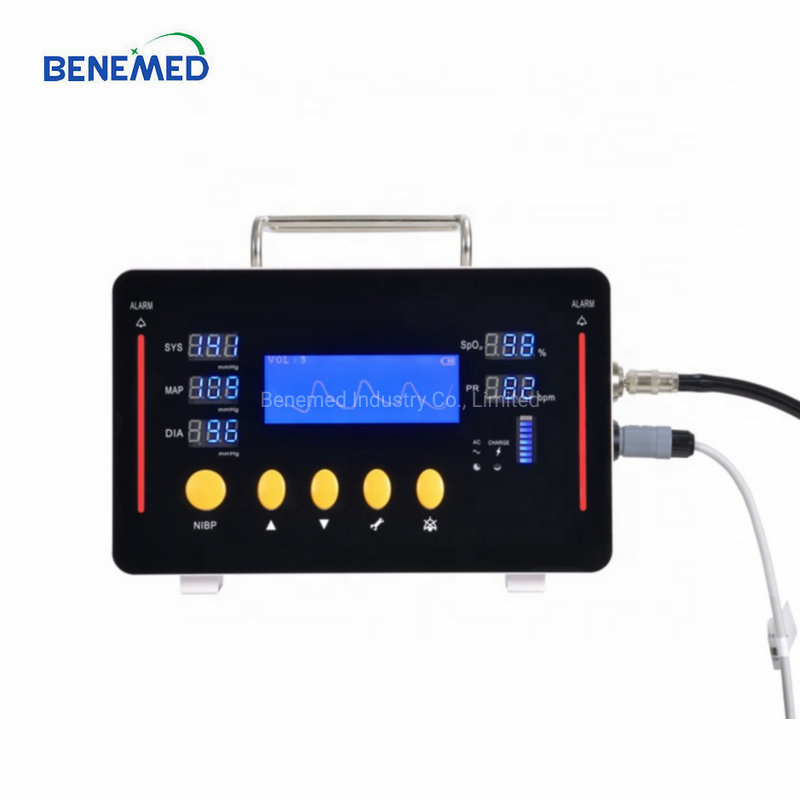

Portable Vital Sign Monitor (NIBP, SpO2, RESP) BVM-8

A compact and lightweight solution for continuous monitoring of vital signs across all patient categories, from neonates to adults.

Dimension and Weight

Dimension: 210mm × 170mm × 75mm
Net Weight: 1 kg

Display Specification

LED + LCD Dual Display
LCD Size: 85mm * 30mm

Power Supply

AC Power Adaptor: Voltage AC100 ~ 240V, 50/60Hz (Output 5VDC, 4A)
Battery: Rechargeable Lithium battery 3.7V/2200mAh
Working Time: 3 hours (Optional large battery for 8-9 hours work)
Charge Cycle: ≥500 times

Monitoring Parameters - NIBP

Method: Oscillometric (Manual, Auto, STAT modes)
Adult Range: SYS: 30 ~ 270 mmHg | DIA: 10 ~ 220 mmHg
Pediatric Range: SYS: 40 ~ 235 mmHg | DIA: 10 ~ 220 mmHg
Neonate Range: SYS: 30 ~ 135 mmHg | DIA: 10 ~ 110 mmHg
Accuracy: Static pressure ±3mmHg; Maximum Mean error ±5mmHg

Monitoring Parameters - SpO2 & Pulse Rate

SpO2 Range: 0 ~ 100% (Accuracy: ±2% between 80-100%)
Pulse Rate Range: 25 ~ 250bpm (Accuracy: ±1bpm)
PI Range: 0.075% ~ 20%
Support Pitch tone and multi-level volume

Trend, Review & System

Trend: 100 hours of patient SpO2 data
NIBP Review: 500 groups of measurements
Alarm: Low, Medium, High levels (Auditory and Visual)
Output: Ethernet RJ45 socket *1, USB Port *1

Frequently Asked Questions

What patient groups is the BVM-8 suitable for?

The BVM-8 is designed for a wide range of patients, including adults, pediatrics, infants, and neonates, with specific NIBP measurement ranges for each group.

How long does the battery last on a single charge?

The standard built-in rechargeable battery provides up to 3 hours of continuous operation. An optional large-capacity battery is available that extends working time to 8-15 hours.

Can I review historical patient data on the device?

Yes, the monitor features a robust memory that stores up to 100 hours of SpO2 trend data and 500 groups of NIBP measurement records for clinical review.

What are the primary parameters monitored by this device?

The BVM-8 focuses on essential vital signs, including Non-Invasive Blood Pressure (NIBP), Oxygen Saturation (SpO2), and Pulse Rate (PR).

Is the device portable enough for emergency transport?

Absolutely. With a net weight of only 1kg and a compact design (210mm x 170mm x 75mm), it is ideal for mobile medical environments and bedside monitoring.

Does the monitor have an alarm system for abnormal readings?

Yes, it includes a comprehensive 3-level alarm system (Low, Medium, High) with both auditory and visual indications. The alarm volume is also adjustable to suit the environment.
