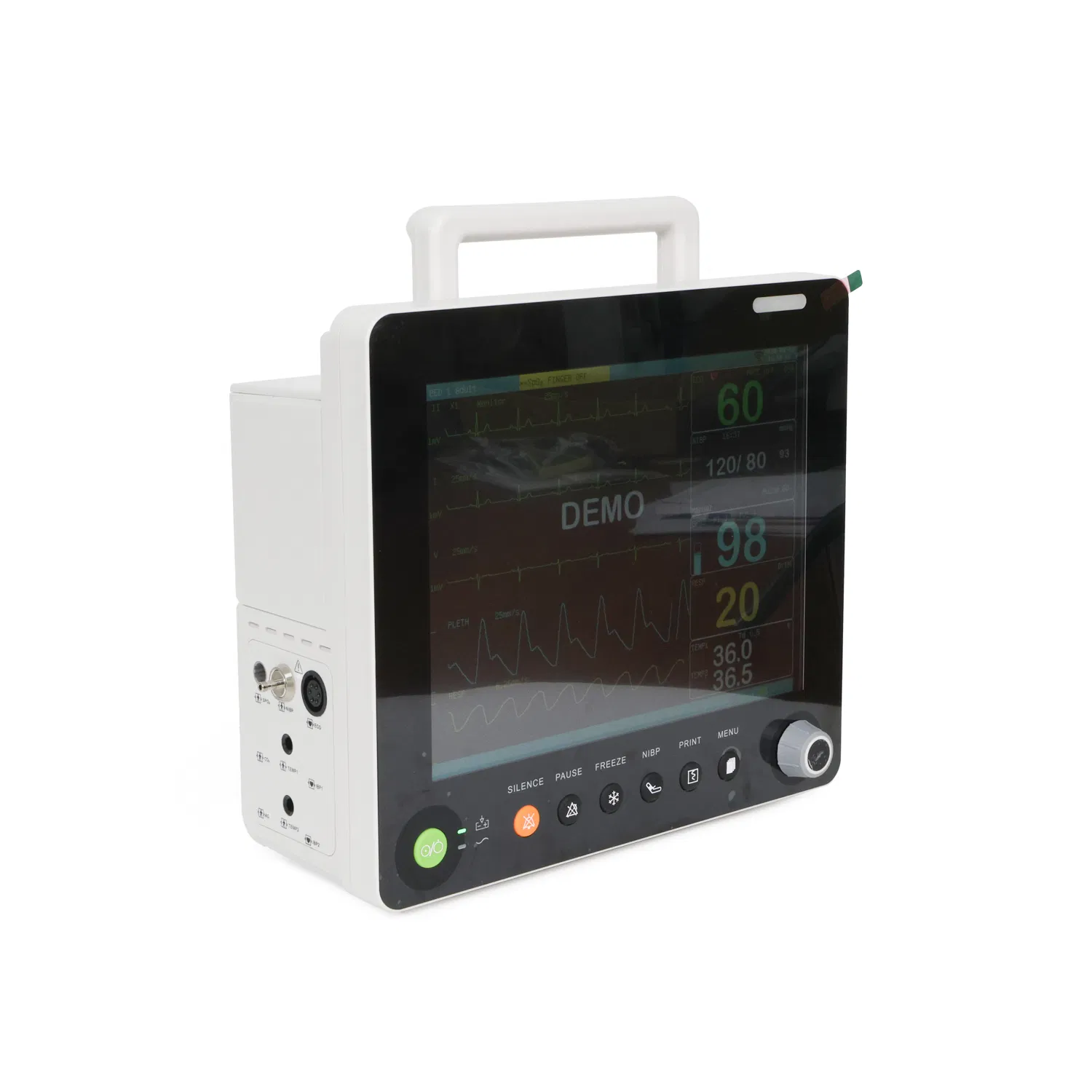

Medical Flexible Modular Multi Parameter High-Definition 12.1" TFT Display ECG Vital Sign Patient Monitor
Medical Flexible Modular Multi Parameter High-Definition 12.1" TFT Display ECG Vital Sign Patient Monitor
Medical Flexible Modular Multi Parameter High-Definition 12.1" TFT Display ECG Vital Sign Patient Monitor
Medical Flexible Modular Multi Parameter High-Definition 12.1" TFT Display ECG Vital Sign Patient Monitor
Medical Flexible Modular Multi Parameter High-Definition 12.1" TFT Display ECG Vital Sign Patient Monitor
1 / 5
Medical Flexible Modular Multi Parameter High-Definition 12.1" TFT Display ECG Vital Sign Patient Monitor
Medical Flexible Modular Multi Parameter High-Definition 12.1" TFT Display ECG Vital Sign Patient Monitor
Medical Flexible Modular Multi Parameter High-Definition 12.1" TFT Display ECG Vital Sign Patient Monitor
Medical Flexible Modular Multi Parameter High-Definition 12.1" TFT Display ECG Vital Sign Patient Monitor
Medical Flexible Modular Multi Parameter High-Definition 12.1" TFT Display ECG Vital Sign Patient Monitor

Medical Flexible Modular Multi Parameter High-Definition 12.1" TFT Display ECG Vital Sign Patient Monitor

Customization: Available
Classification: 12inch Patient Monitor
Type: Hospital Products
Send Inquiry

Product Description

Basic Information

Model NO.
MCS1529
Certification
CE, FDA, EEC, MSDS, ISO13485
Group
Adult / Animal
Function
6 Vital Signs Monitoring
Feature
Portable & High-Definition
Display
12.1" TFT Color Screen

Product Description

Medical Flexible Modular Multi Parameter High-Definition 12.1" TFT Display ECG Vital Sign Patient Monitor

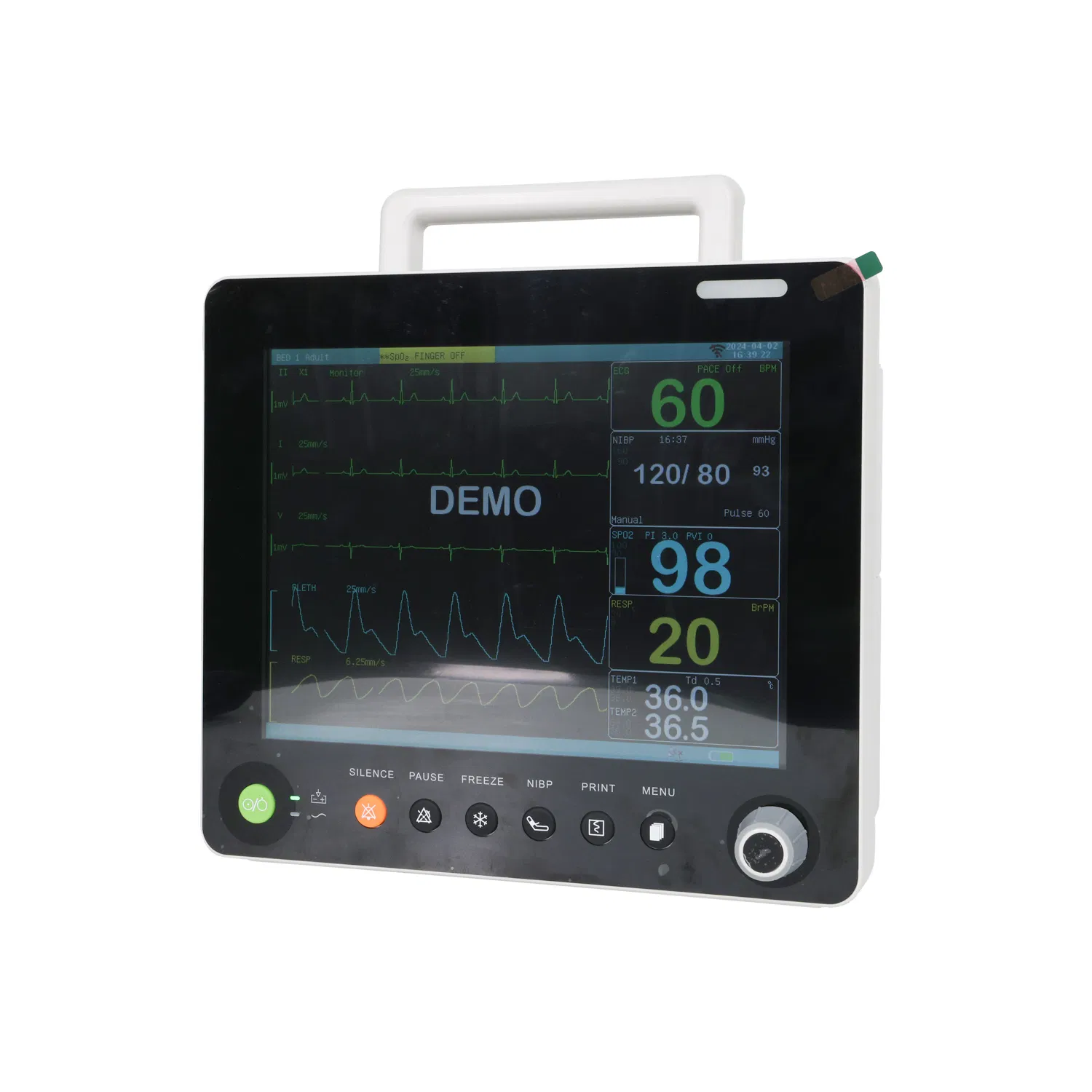

Patient Monitor Display
Patient Monitor Interface
Key Features:
  • 12.1 inch, 800x600 color TFT, multi-channel display (up to 13 waves).
  • SpO2 with DSP algorithm for excellent performance during movement and low perfusion.
  • Multiple screen layouts including Big Font screen; parameters and waves can be toggled.
  • NIBP algorithm supporting animals from small cats to horses with over-pressure protection.
  • Standard RJ45 network and optional USB WIFI module for easy CMS connection.
  • USB data output with software for PC data viewing.
Monitor Detail 1
Monitor Detail 2

Technical Specification

ECG Lead: 3/5 Lead mode (I, II, III, aVR, aVL, aVF, V); HR: 15~500BPM; Gain: X1/4, x1/2, x1, x2; Wave speed: 12.5/25/50 mm/s; Arrhythmia and ST analysis.
RESP Impedance between RA-LL or RA-LA; Lead: I/II; Wave speed: 6.25, 12.5, 25mm/s; Apnea Alarm: 5~120s.
NIBP Method: Oscillometry; Range: SYS 40~280 mmHg, DIA 10~220 mmHg; Mode: Manual, Auto, STAT; Automatic interval: 1~480 minutes.
SPO2 SpO2, PR, PI; Accuracy: ±2% (70~100%); Pulse Rate: 20~250bpm.

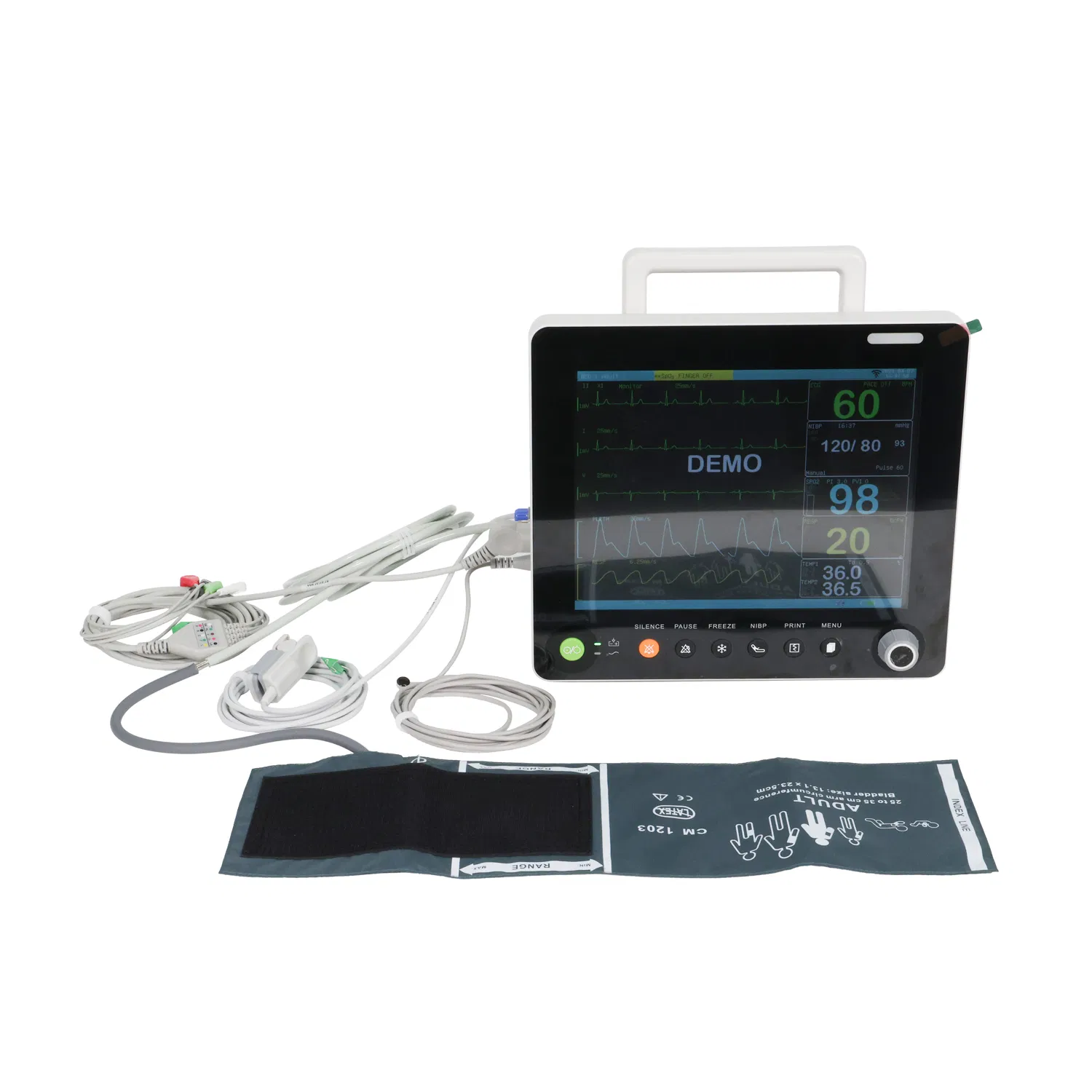

Standard Configuration ECG, NIBP, SpO2, PR, TEMP, RESP.
Optional Mainstream/Sidestream EtCO2, Wall Mount, Trolley, Central Monitoring System (CMS).

Product Details & Applications

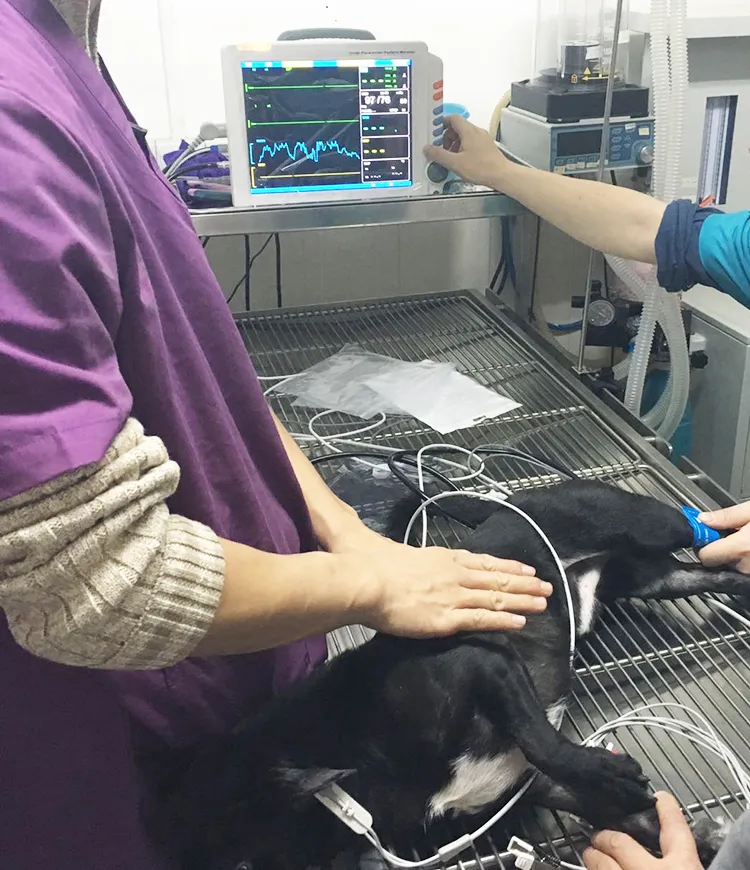

Detailed View 1

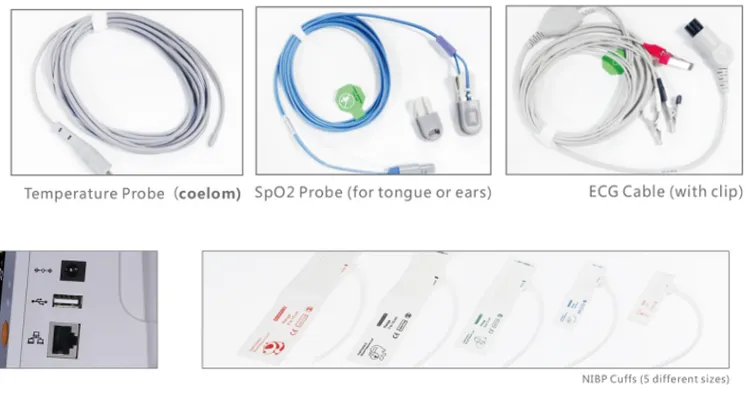

Detailed View 2

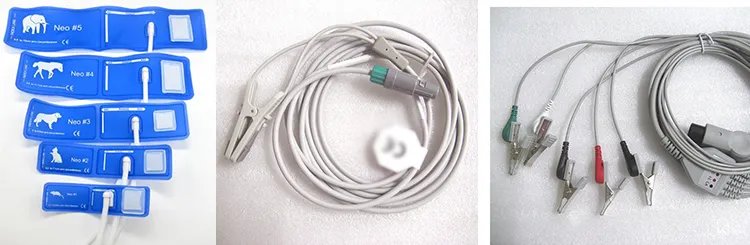

Detailed View 3
Global Solutions & One-Stop Service
Hospital Solution
Medical Equipment
Global Supply

Why Choose Our Solutions

  • Pioneer supplier in one-stop medical equipment services since 2006.
  • Satisfying purchasing needs for over 2,000+ hospitals worldwide.
  • Approved supplier by multiple international government health departments.
  • Golden Supplier certified by TUV with visualized production and delivery.
  • Comprehensive training for installation, operation, and maintenance.
  • No MOQ requirement for ODM/OEM services.
Quality Certification Customer Support

Frequently Asked Questions

What is the warranty for the patient monitor?
We provide a one-year warranty for all our products for free.
What kind of after-sales service do you offer?
We provide technical support through operating manuals and videos. Our engineers are available via email or phone to assist with any questions. For hardware issues within the warranty period, we provide free spare parts.
What are the available delivery methods and times?
We offer Express (7-10 days), Air Freight (3-10 days), and Sea Freight (12-45 days depending on the port). We can also deliver to your forwarder in China.
What is the typical lead time for an order?
Approximately 40% of our products are in stock. For others, production takes between 3 to 30 days depending on the specific model and quantity.
What payment terms do you accept?
Our payment terms include Telegraphic Transfer (T/T) in advance, Western Union, MoneyGram, PayPal, and Trade Assurance.
Do you provide training for the equipment?
Yes, we provide online training for installation, operation, and daily maintenance to ensure you can use the equipment effectively.
