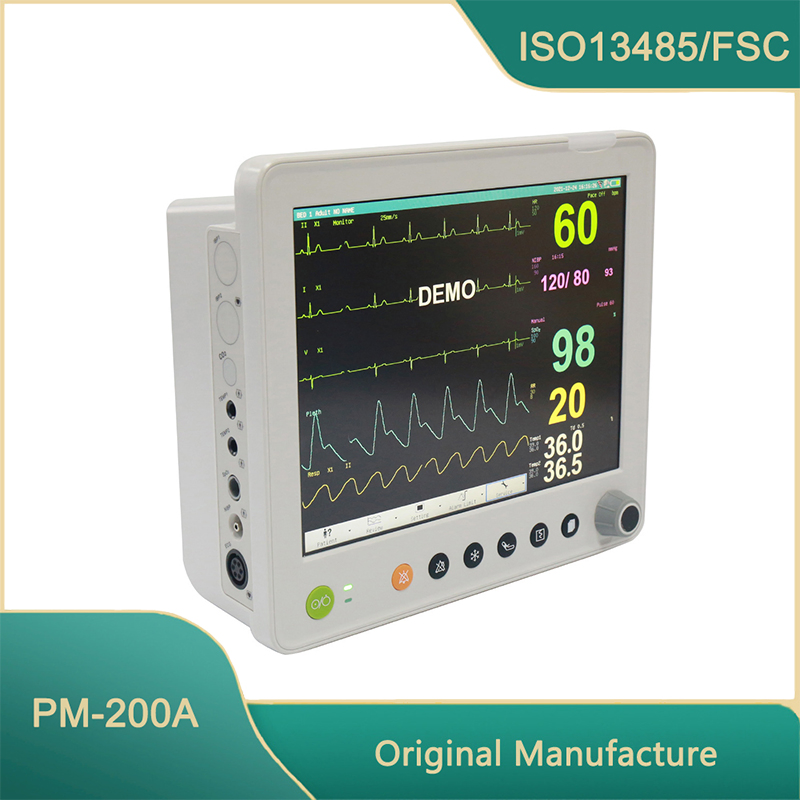

| Model NO. | Alps PM200A | Certification | ISO13485 |

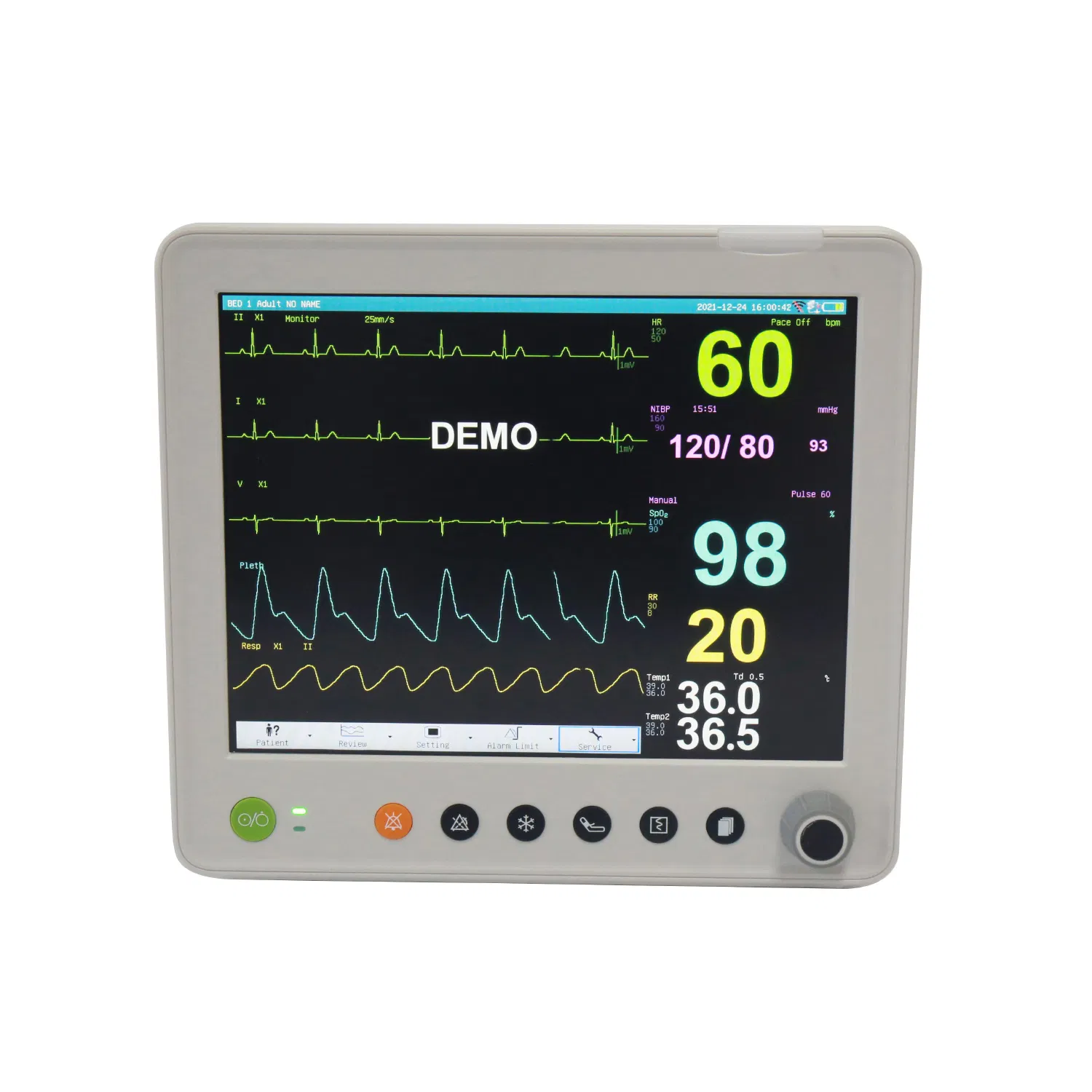

| Product | 12.1" Touch Screen Patient Monitor | Screen | 12.1 inch |
| Standard Configuration | ECG, NIBP, SpO2, Pr, Resp, Temp, Hr | Warranty | 1 Year |
| ECG | 7 Lead ECG Waveform | HS Code | 9018193010 |
| Parameter | Specifications |
|---|---|
| ECG |
Lead Mode: 5 Leads | Waveform: 3 channel CMRR: Monitor > 105 dB, Diagnosis > 85 dB Baseline Recovery: < 3s after defibrillation Bandwidth: Surgery 1-15 Hz, Monitor 0.5-35 Hz, Diagnostic 0.05-100 Hz |
| SpO2 |
Measurement Range: 0 ~ 100% | Resolution: 1% Accuracy: 70% ~ 100%: ±2% Pulse Rate: 0 ~ 254 bpm (Accuracy: ±2 bpm) |
| NIBP |
Method: Oscillometric Adult Mode: SYS 40-270 mmHg, DIA 10-215 mmHg Pediatric Mode: SYS 40-200 mmHg, DIA 10-150 mmHg Accuracy: Max Mean Error ±5 mmHg |
| Respiration |
Range: Adult 0-120 rpm, Neo/Ped 0-150 rpm Accuracy: ±2 rpm | Apnea Alarm: 10 ~ 40 S |
| Temperature |
Range: 0 ~ 50 °C | Accuracy: ±0.1 °C Average Time Constant: < 10 seconds |
Size: 312mm × 287mm × 175mm
Weight: 3.4 Kg
The standard configuration includes ECG, NIBP (Non-Invasive Blood Pressure), SpO2, Pulse Rate (PR), Respiration (RESP), Temperature (TEMP), and Heart Rate (HR).

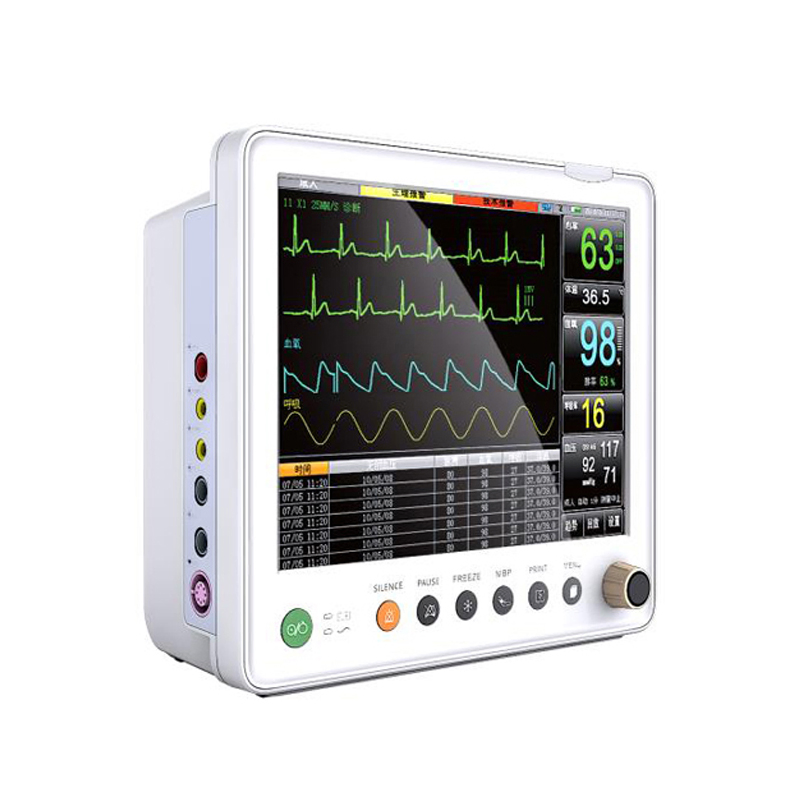

Yes, the device supports simultaneous display of 7-lead ECG waveforms on its 12.1-inch high-brightness colorful TFT LCD screen.
Yes, the monitor features specific modes for Adult, Pediatric, and Neonatal patients with adjustable NIBP and Respiration alarm ranges for each.

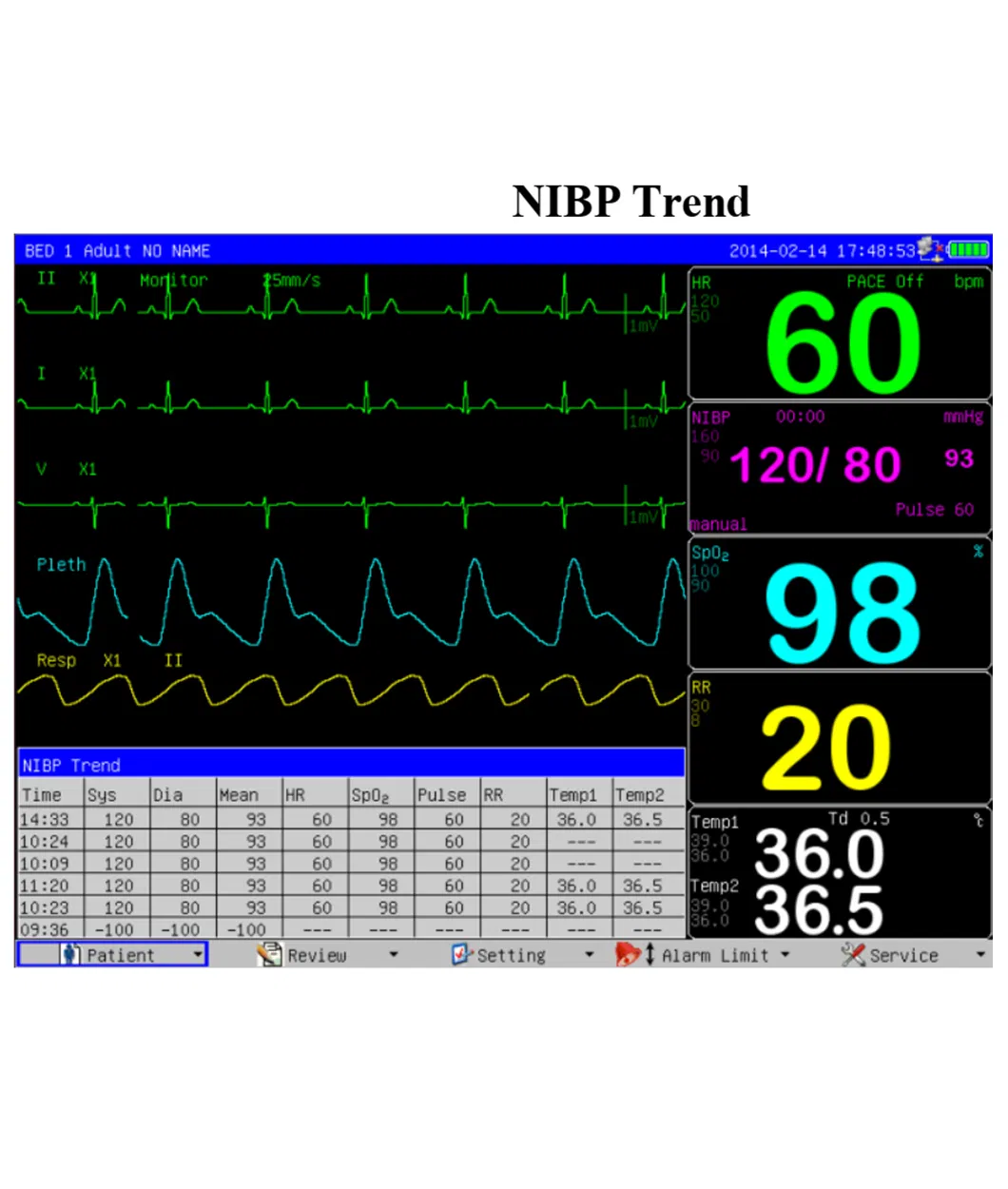

The PM200A provides up to 168 hours of graphic and tabular trend data storage, and it can recall up to 750 groups of NIBP data.
Yes, the monitor has a networking capacity of up to 66 beds, allowing it to connect with Hospital Information Systems (HIS) via WiFi or wired connections.
The fanless design ensures quiet operation and prevents the circulation of dust and pathogens, significantly reducing the risk of cross-contamination in ICU/CCU environments.
