Basic Information
Certificate
ISO13485, ISO9001, CE, BV
Capacity
50000 Pieces/Month
Product Description

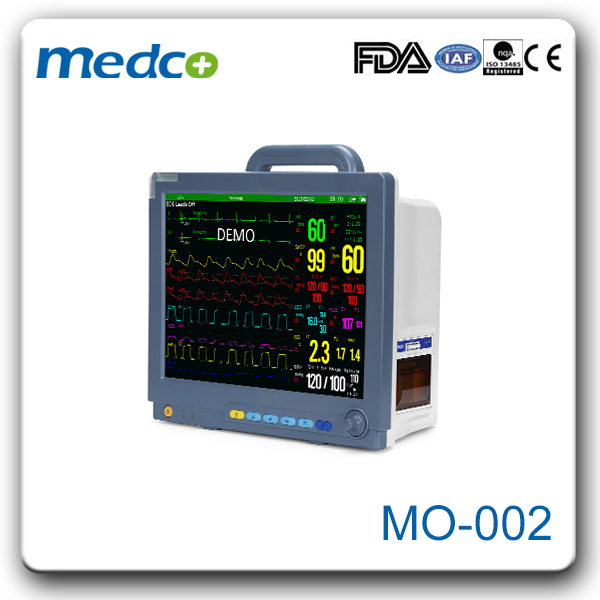

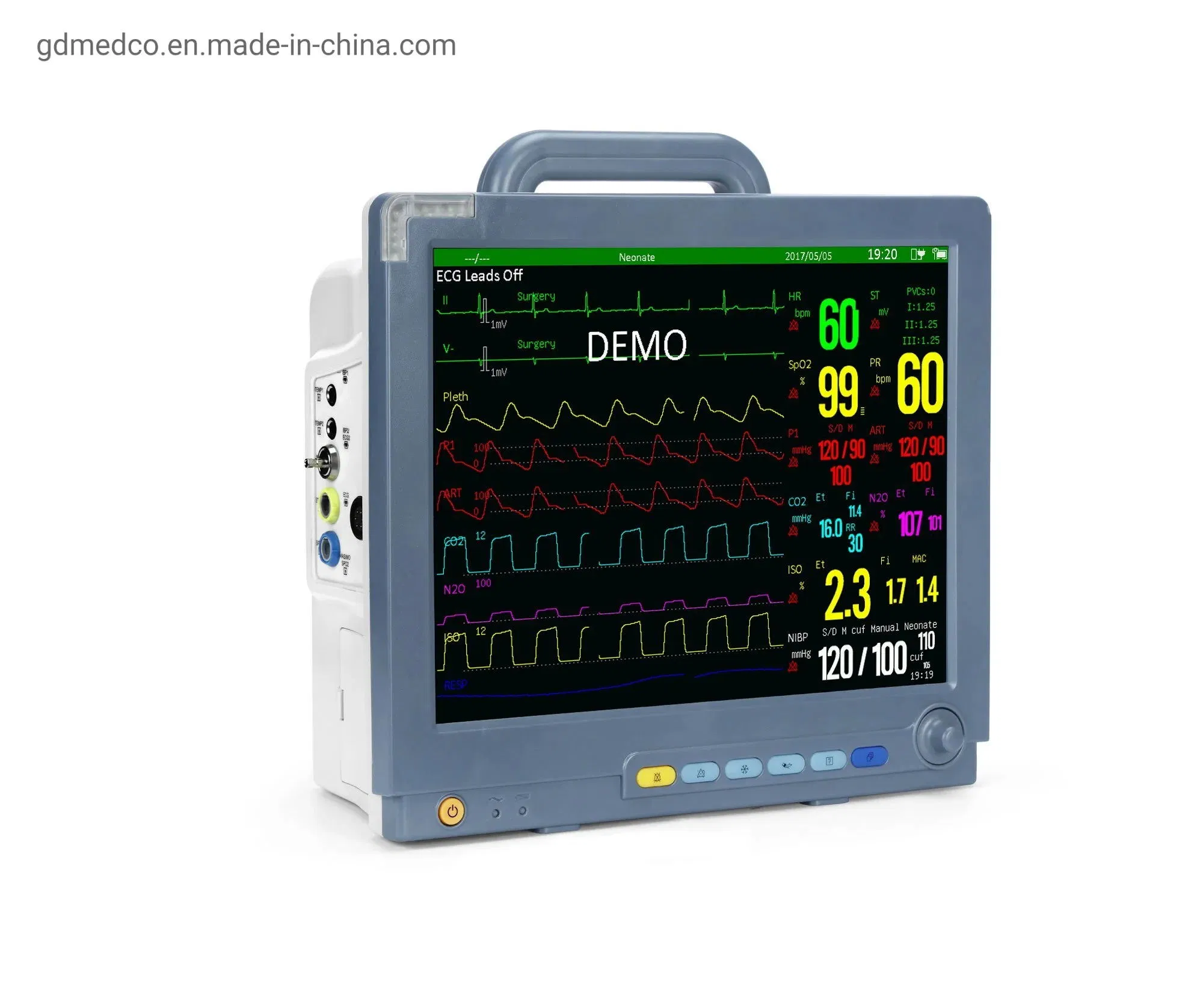

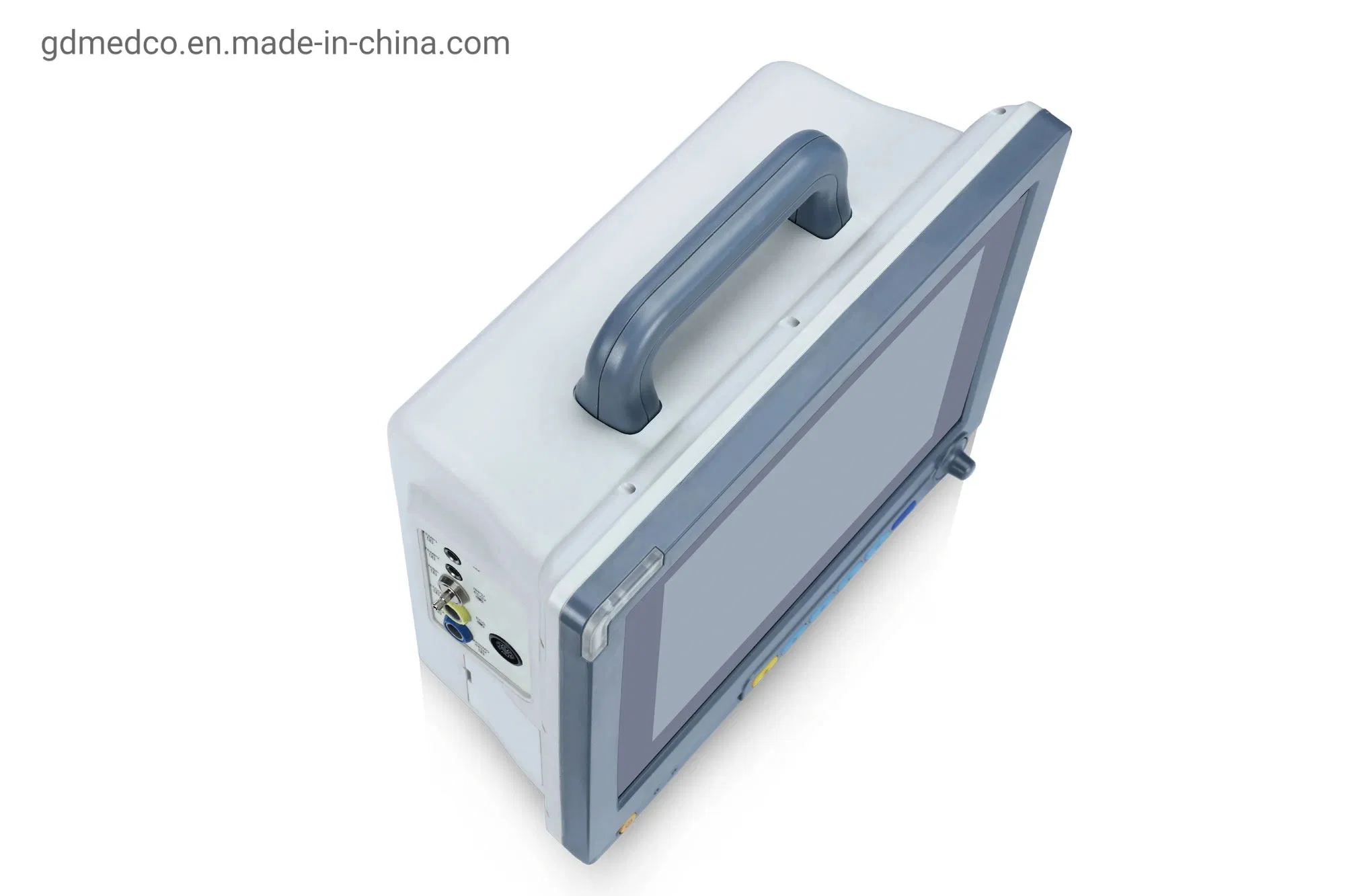

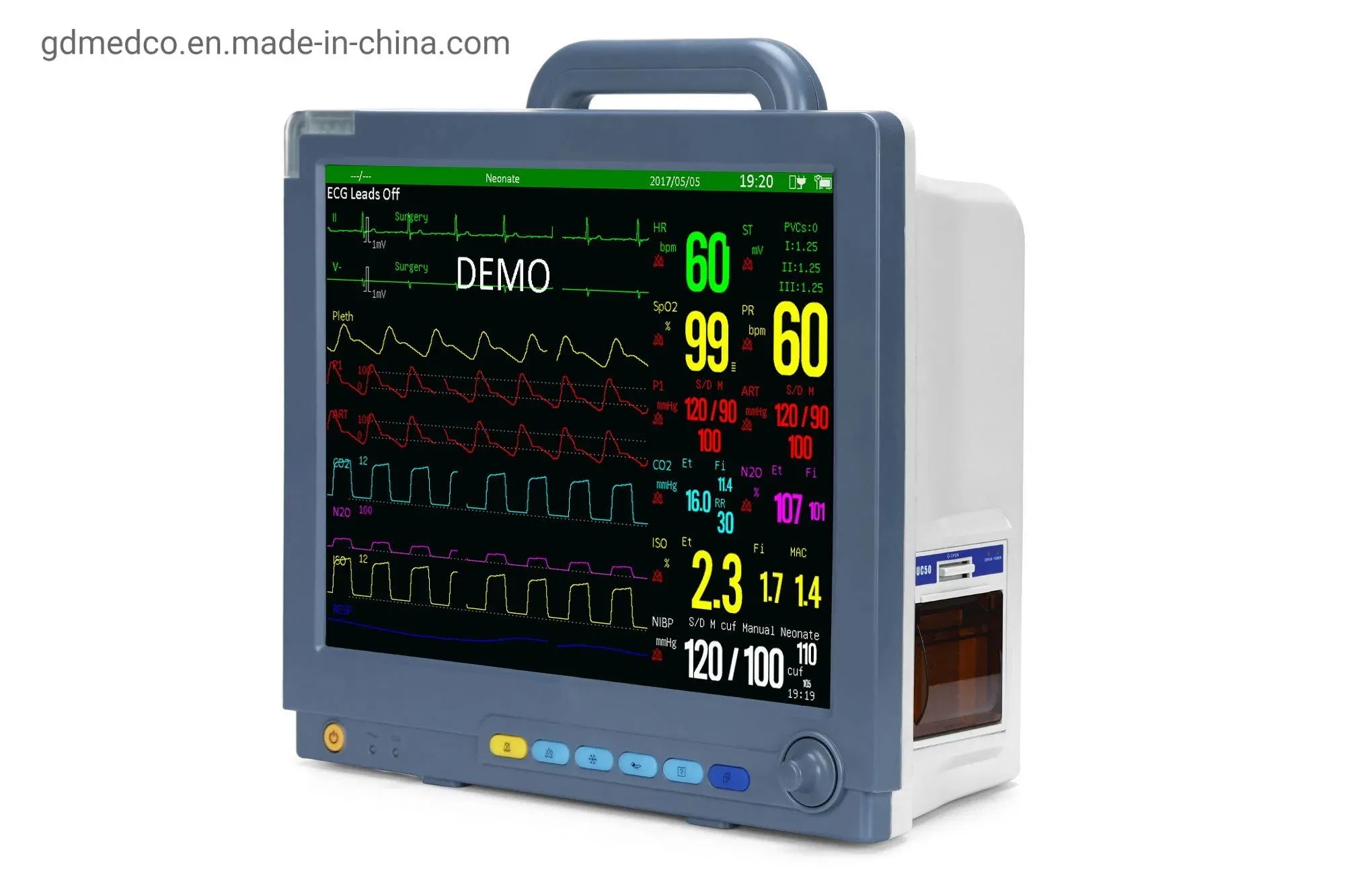

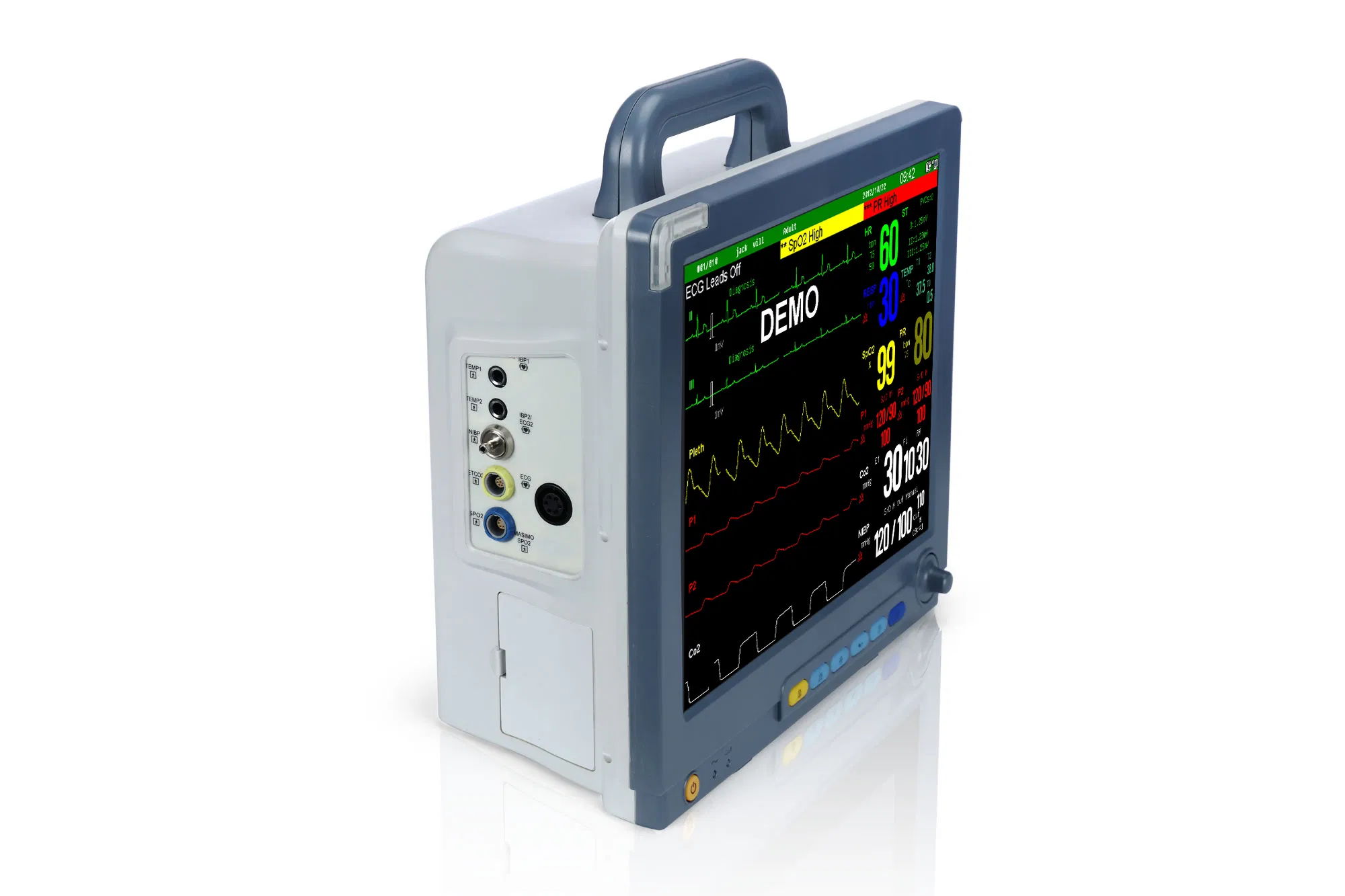

MO-002 Multi-parameter Patient Monitor
A high-performance diagnostic ICU portable patient monitor featuring a 15-inch high-resolution display and comprehensive monitoring capabilities.
Features & Benefits
- 15" color TFT display, high resolution: 1024×768dpi
- Separated para board: ECG, NIBP, SpO2 board
- Full touch-screen for intuitive operation and navigation knob
- Real time S-T segment analysis and ARR analysis
- SpO2 Pitch Tone Variation and Drug Dose Calculation
- Parameter waveform and characters color selectable
- Multi-display: Standard, Large font, Trend Coexis, OxyCRG dynamic
- Standby mode for energy saving and suspend monitoring
- 7-lead ECG waveforms display in phase
- Built-in rechargeable lithium battery with volume checking
- Efficient resistance to interference of defibrillator and HF knife
- Networking capacity and TCP/IP networking platform
- Time delay switch-off function to keep monitor data
Standard Parameters: 5-lead ECG, SpO2(F-5), NIBP, TEMP, RESP, PR, HR.
Optional: Touch Screen, Thermal Recorder, 3/12-lead ECG, 2/4-IBP, 4-TEMP, 2-SpO2, Nellcor/Masimo SpO2, BIS, Phaisein/ Respironics Multi-gas, ICG/CO, FHR, FM, TOCO.
Performance Specifications
| Display & Storage |
| Display | 15" Color TFT (1024×768) |
| Trace | 9 waveforms (7 ECG, 1 SPO2, 1 RESP) |
| Sweep Speed | 12.5mm/s, 25mm/s, 50mm/s |
| Battery | Rechargeable, 4 hours continuous working |
| Trend Storage | Up to 1000 hours (5min/piece) |
| NIBP Storage | 1000 groups |
| Alarm Storage | 200 groups |
Technical Parameters
ECG
Lead mode: 5-lead (R, L, F, N, C) | Heart rate range: Adult 15~300bpm; Neonate/pediatric 15~350bpm | Accuracy: ±1bpm | S-T segment detection: -2.0mV~+2.0mV | Arrhythmia analysis: YES
SpO2 & NIBP
SpO2 Range: 0~100% | Accuracy: ±2% (70-100%) | Pulse Rate: 20~300bpm
NIBP Method: Digital Automatic oscillometric | Modes: Manual/Automatic/Continuous | Over-pressure protection: Double safety protection
Other Parameters
- RESPIRATION: Thoracic impedance, Adult 7~120rpm, Apnea alarm support.
- TEMPERATURE: Range 5~50ºC, Accuracy ±0.1ºC.
- FHR: Pulsed Doppler, Range 50~210 BPM, Accuracy ±1BPM.
- IBP: 2 channels, Range -50-300mmHg.
- EtCO2: Infrared Spectrum, Range 0.0-10%.
Accessories Supplies
- 5 lead ECG cable
- SpO2 probes
- NIBP probe
- Temp probe
- Ground connecting liner
- Chest electrode (10pcs/set)
Frequently Asked Questions
1. What is the screen size and resolution of the MO-002 monitor?
The MO-002 features a large 15-inch color TFT display with a high resolution of 1024×768 dpi, providing clear visibility of waveforms and parameters.
2. Which patient groups is this monitor suitable for?
This multi-parameter monitor is designed for a wide range of patients, including neonates, pediatric, and adult patients.
3. How long can the monitor operate on battery power?
The device is equipped with a built-in rechargeable battery that supports up to 4 hours of continuous working time after a full charge.
4. What are the standard monitoring parameters included?
The standard configuration includes 5-lead ECG, SpO2, NIBP, Temperature (TEMP), Respiration (RESP), Pulse Rate (PR), and Heart Rate (HR).
5. Does the monitor support networking for central monitoring?
Yes, it has networking capacity and uses a TCP/IP networking platform, allowing it to be connected to a central monitoring system.
6. Is the monitor resistant to surgical equipment interference?
Yes, the MO-002 is designed with efficient resistance to interference from defibrillators and high-frequency (HF) knives, ensuring stable monitoring during surgical procedures.
