China Factory Breathing Machine Medical ICU Ventilator with Air Compressor

Customization:	Available
Type:	Ventilator
Operating Panel:	English (Standard)

Send Inquiry

Product Description

📋

Basic Information

Model NO.

JRJX100

Certification

CE, ISO13485

LCD Display

With LCD Display

Group

All (Adult & Child)

Transport Package

Carton

Production Capacity

100 units/Week

🔍

Product Description

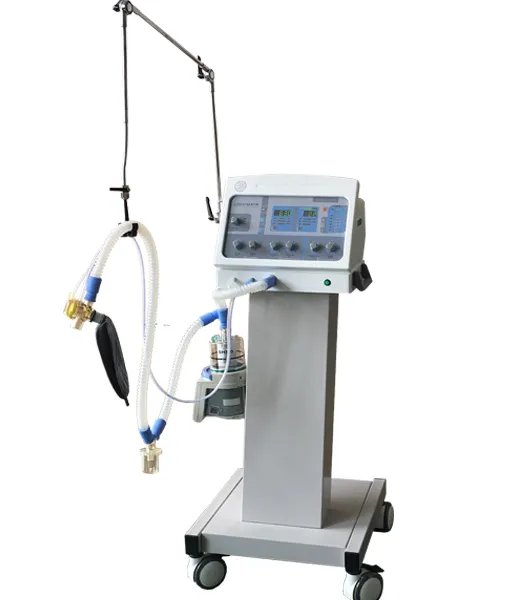

The JRJX100 is a versatile medical ventilator designed for use in ICU rooms, emergency departments, operating rooms, and home care environments. It is engineered to provide reliable respiratory support for both child and adult patients.

⭐ Key Features

Multiple functions suitable for a variety of clinical occasions.
Main parts utilize high-quality components for maximum accuracy and reliability.
Self-set alarm parameters with comprehensive alarm protection systems.
Equipped with Inverse Ratio Ventilation, Sigh, and PEEP functions.

🌐 Environmental Requirements

Relative Humidity

15%~95%

Ambient Temp

-18~ 50°C

Atmospheric Pressure

70~110kPa

Gas Source

0.28~0.6Mpa 60I/min

🛡️ Classification

Class I, Type B (Protection against electric shock).
IPX4 (Protection against harmful ingress of water and particulate matter).
Suitable for patients weighing more than 15KG.

📊

Technical Specifications

Parameter		Specification
Modes		CMV, CMV+SIGH, A/C, SIMV, MANUAL
Tidal Volume		50~1200mL
Respiratory Rate		5~60bpm
FiO2		40%~100%
Trigger		-5~10hPa
Inspiratory Time		0.5~3S
Max Minute Volume		≥22L/min
PEEP		0.5 ~20hPa
Weight		28kg (Including all accessories)

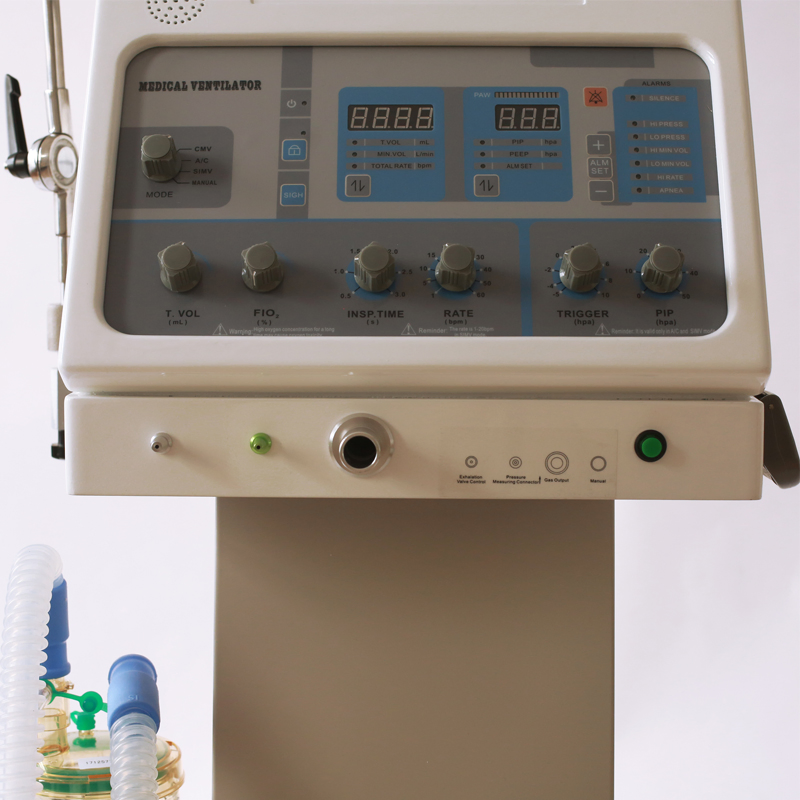

Monitors	Tidal Volume, Circuit Pressure, Alarm Set, MIN. Volume, Breath Rate, Trigger Level
Alarms	High/Low Airway Pressure, High/Low MIN. Volume, High Rate, Apnea, Power Failure

🖼️

Product Gallery

❓ Frequently Asked Questions

1. What clinical settings is the JRJX100 ventilator suitable for? The JRJX100 is designed for versatile use in ICU rooms, emergency departments, operating rooms, and for home respiratory support.

2. Can this device be used for both adults and children? Yes, it is suitable for a wide range of patients, specifically those weighing more than 15KG, covering both pediatric and adult requirements.

3. What ventilation modes does the JRJX100 support? It supports multiple modes including CMV, CMV+SIGH, A/C, SIMV, and MANUAL ventilation to meet different clinical needs.

4. What are the safety alarm features? The device includes comprehensive alarms for High/Low Airway Pressure, High/Low Minute Volume, High Respiratory Rate, Apnea, and Power Failure.

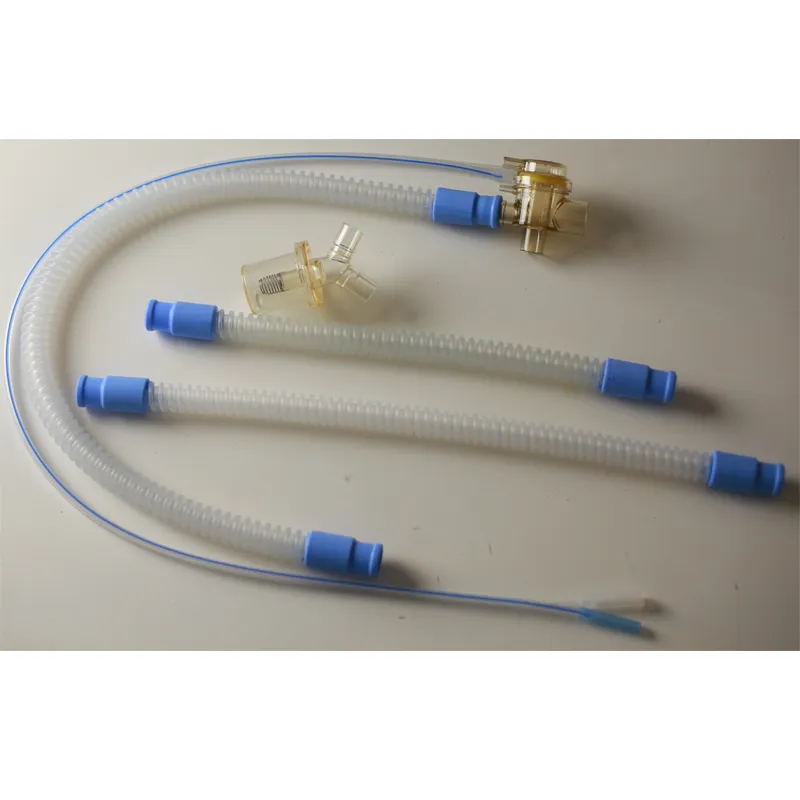

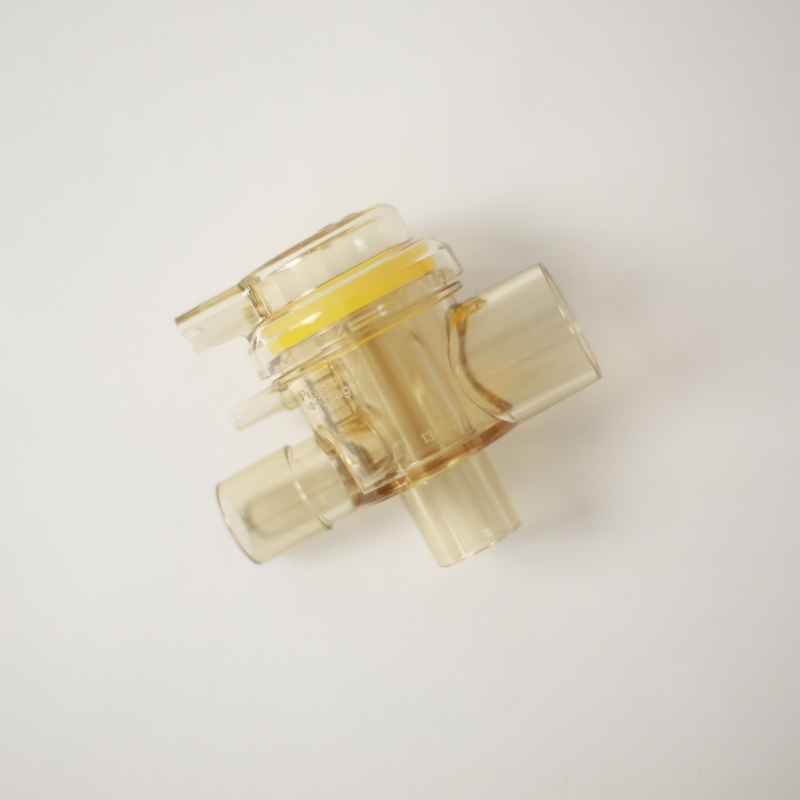

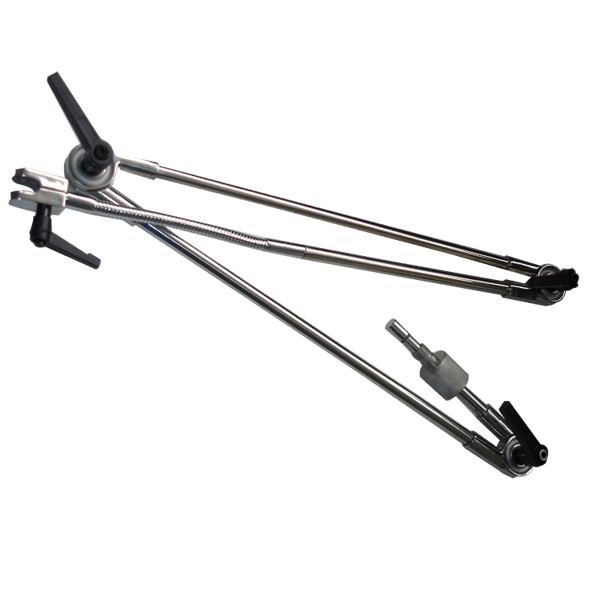

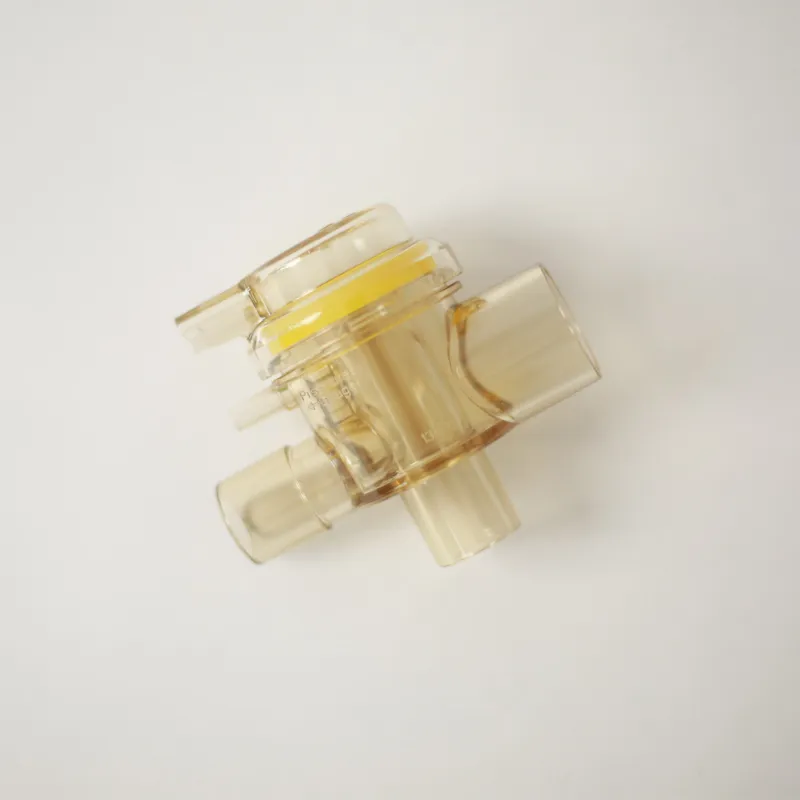

5. What is included in the standard configuration? The standard package includes the ventilator, pressure-reducing valve, oxygen tube, lung simulator, breathing circuit, mask, humidifier, support arms, and PEEP valve.

6. Does the device have an internal monitoring system? Yes, it monitors real-time data such as Tidal Volume, Circuit Pressure, Minute Volume, Breath Rate, and Trigger Levels on its LCD display.
