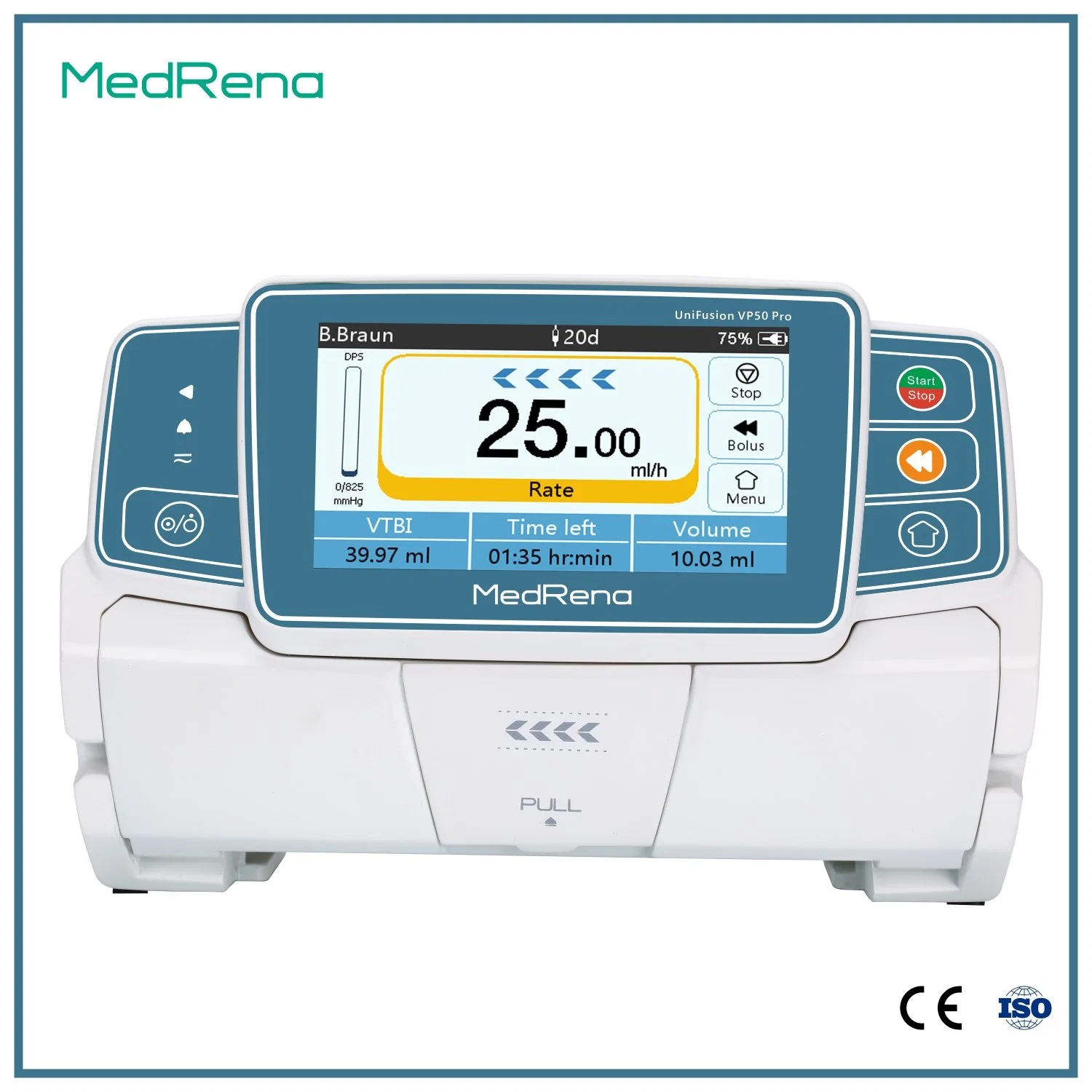

Unifusion Vp50 PRO Advanced Smart Infusion Pump& Bomba De Infusion

Customization:	Available
Classification:	Imaging Diagnostic Equipment
Type:	Patient Monitor

Send Inquiry

Product Description

📋

Basic Information

Model NO.

UniFusion VP50 Pro Infusion Pump

Certification

CE, ISO13485

Weight

1.4kg

Display

4.3 Inch Color LCD Touch Screen

IV Set Brands

Open System, 24 Brands

Application

Medical

Material

ABS+PC

Waterproof Level

IP34

Stackability

Stackable, Inter-Lockable Design with Handle

Pressure Sensor

2 (Up and Down)

Warranty

2 Years

Infusion Modes

Up to 8 Modes

💡

Product Description

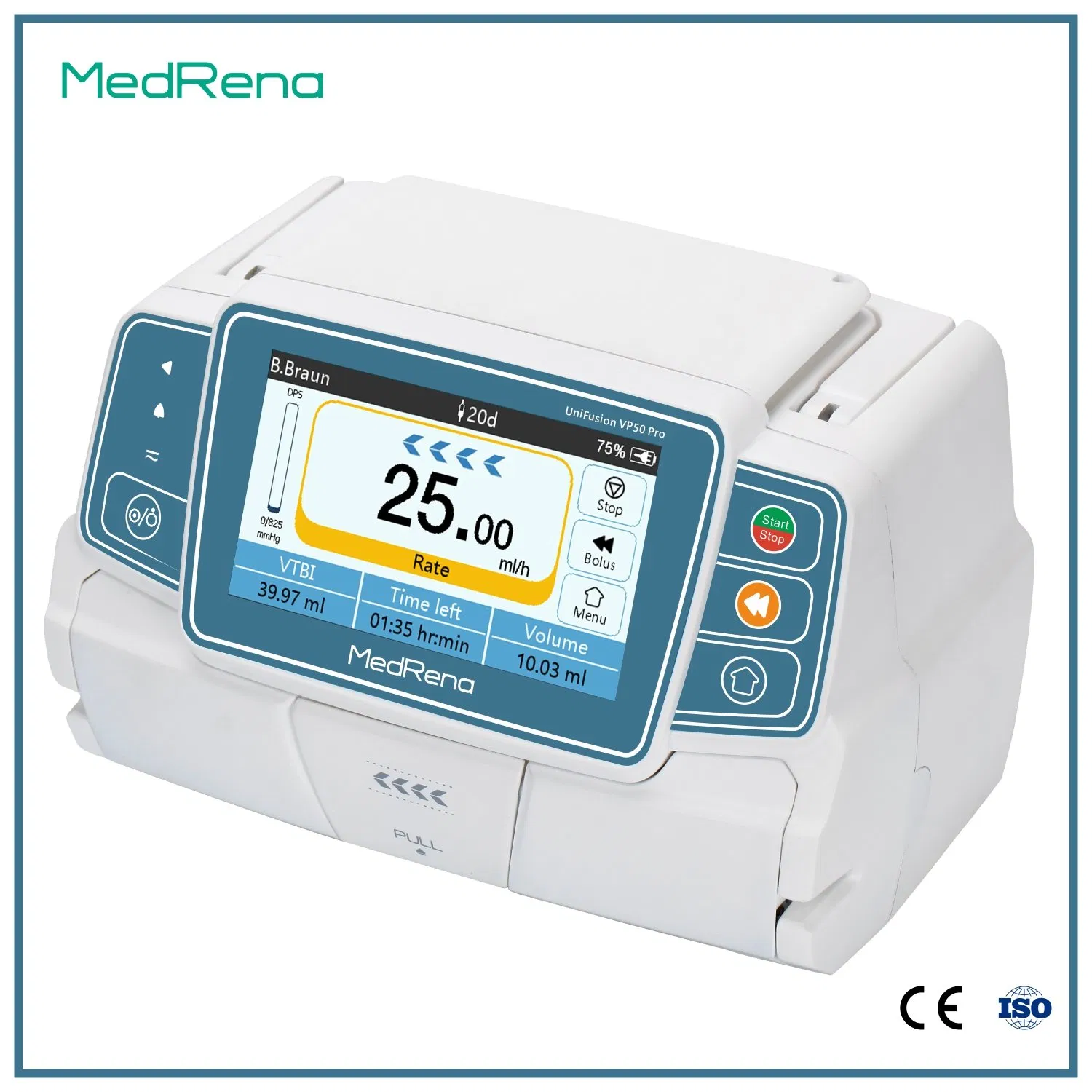

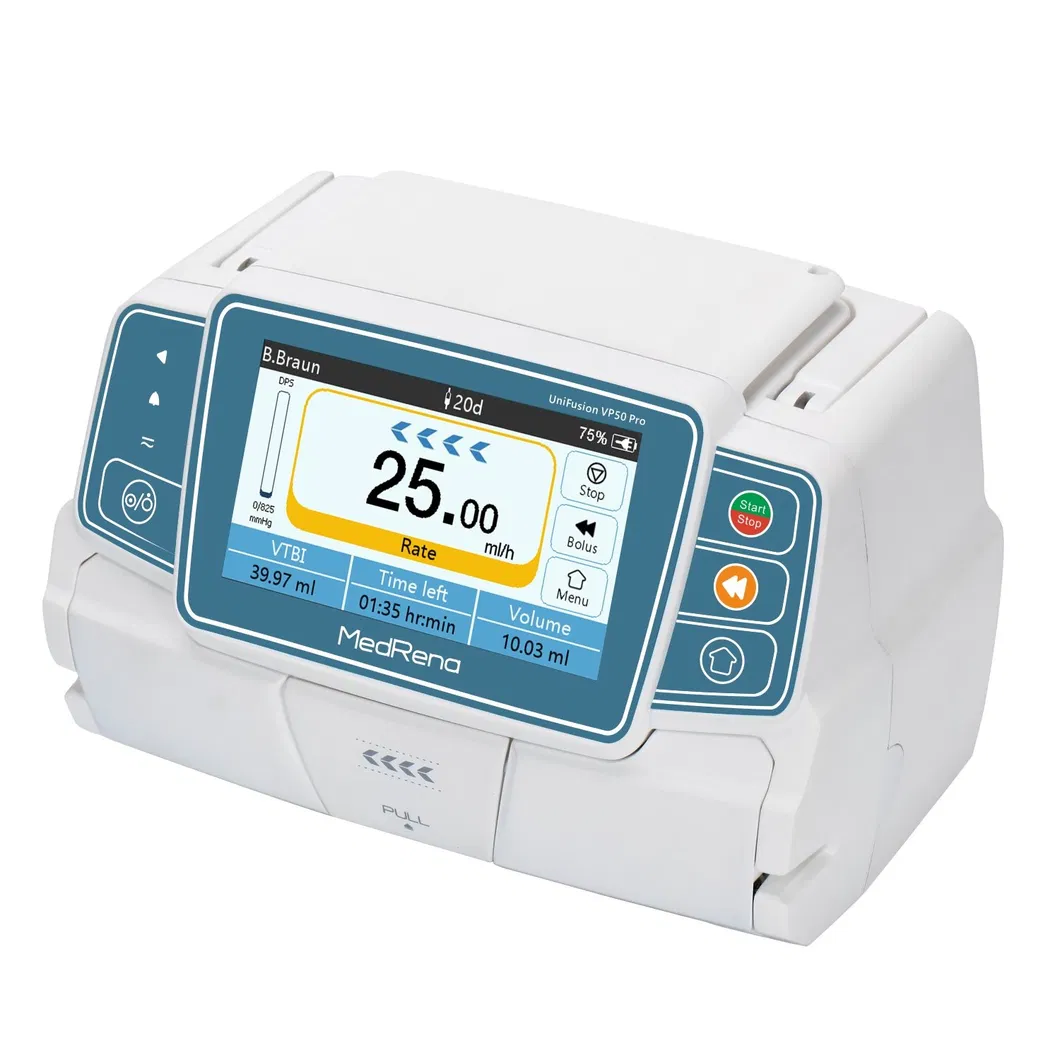

UniFusion VP50 Pro Advanced Infusion Pump, Bomba De Infusion, Pompe a Perfusion

✓4.3 '' color touch screen for intuitive operation.

✓Up to 8 infusion modes including Rate, Time, Body-weight, and Drug library modes.

✓High accuracy & complete alarm system for patient safety.

✓Long battery life up to 11 hours with fast 5-hour charging.

✓Advanced connectivity: DERS, DPS, IrDA, WiFi, RS232.

✓Large memory: Up to 2000 drug library entries & 5000 history records.

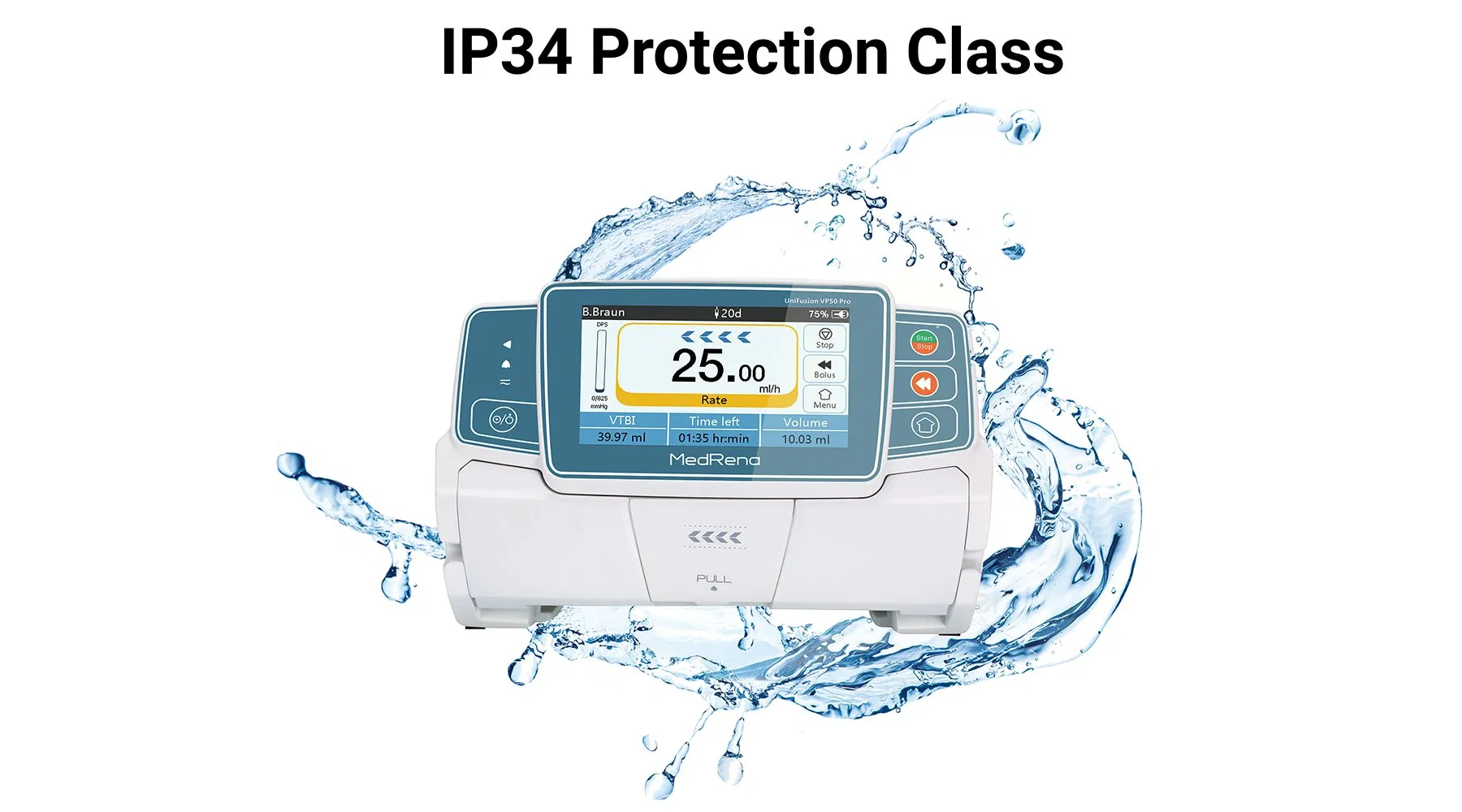

✓IP34 360° splash waterproof rating.

✓Dual pressure and air bubble sensors (Up & Down).

📊

Product Parameters

Specifications and Functions

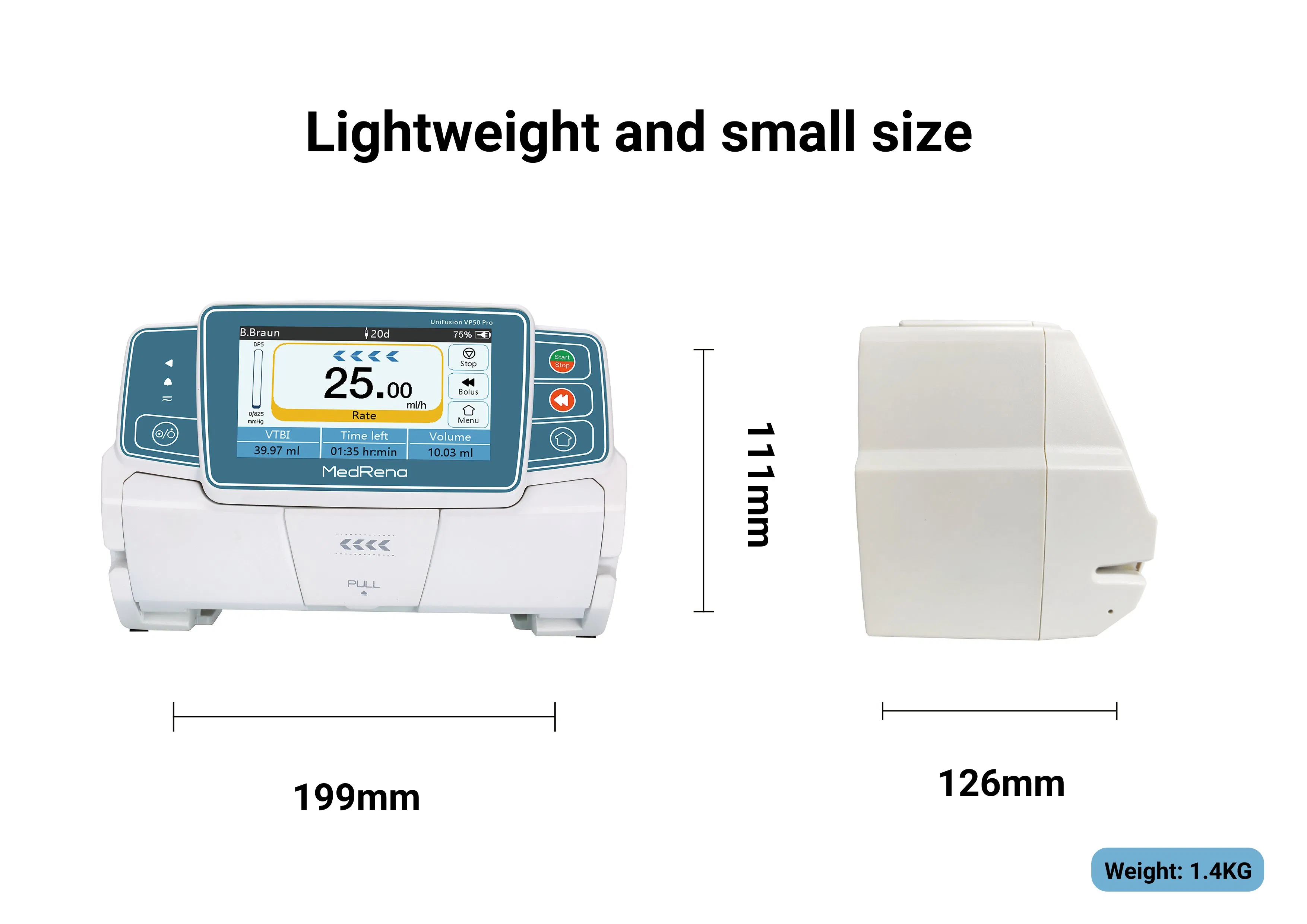

Dimension	199 * 126* 111 mm
Weight	Approx. 1.4kg
Display	4.3 inch colour touch screen
Flow rate accuracy	±5%
Flow rate	0.1-1500 ml/h
VTBI	0-9999.99 ml
Infusion modes	8 modes (Rate, Time, Body-weight, Drip, Drug library, Loading-dose, Sequence, etc.)
Drug library	More than 2000 entries
Occlusion levels	12 levels
Alarms	VTBI near end, VTBI infused, Pressure high, Battery empty, No power supply, Air bubble, Door open, etc.
Power supply	AC: 110V-240V, 50/60Hz; DC: 12V
Battery life	Standard: 4.5 hours; Optional: 9-11 hours (@ 5ml/h)
Water proof	IP34
Data interface	USB, RS232, Nurse call, WiFi (optional)

🏢

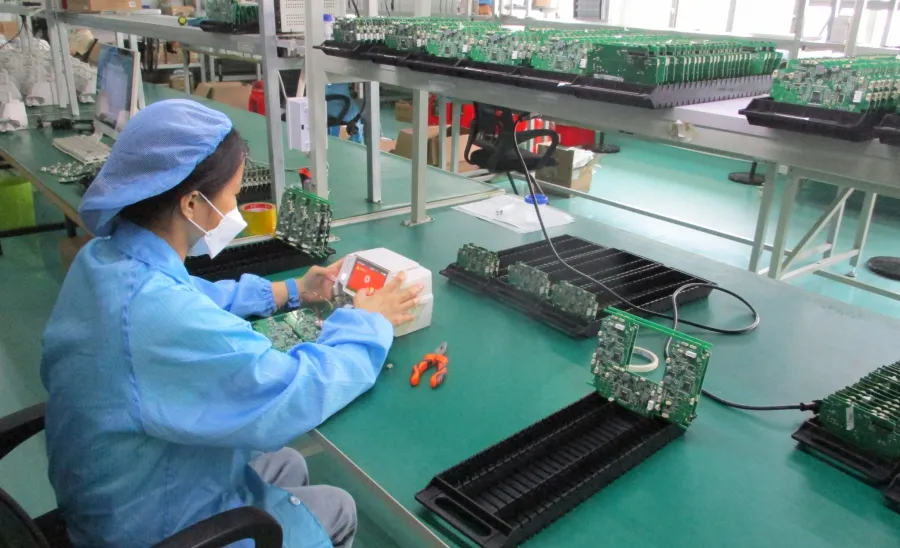

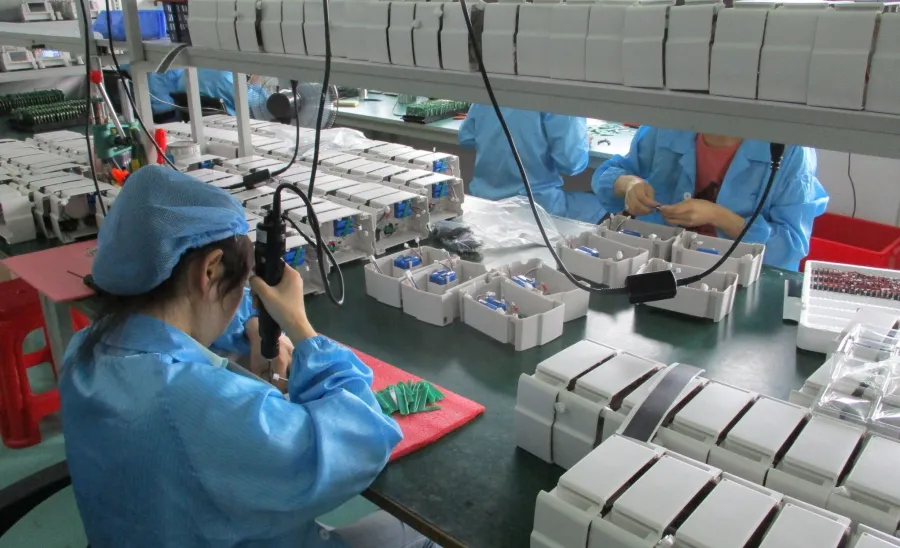

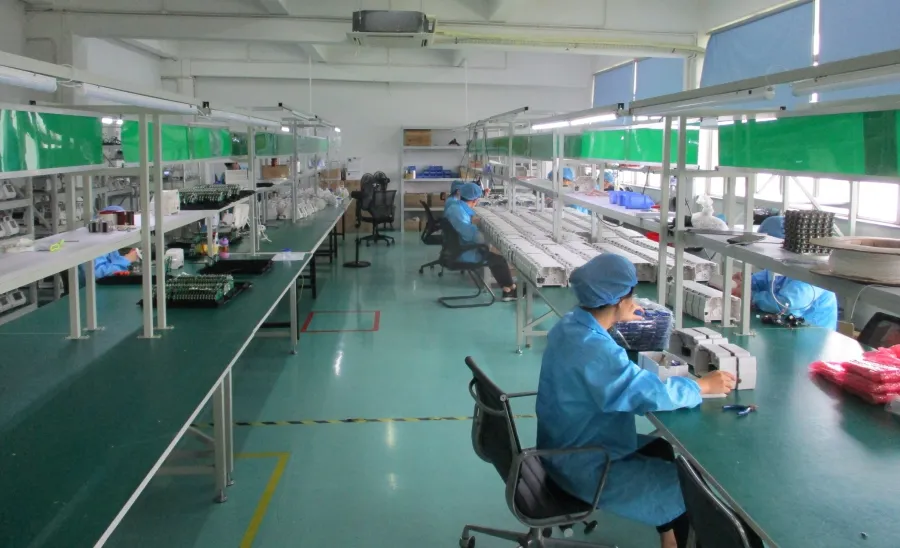

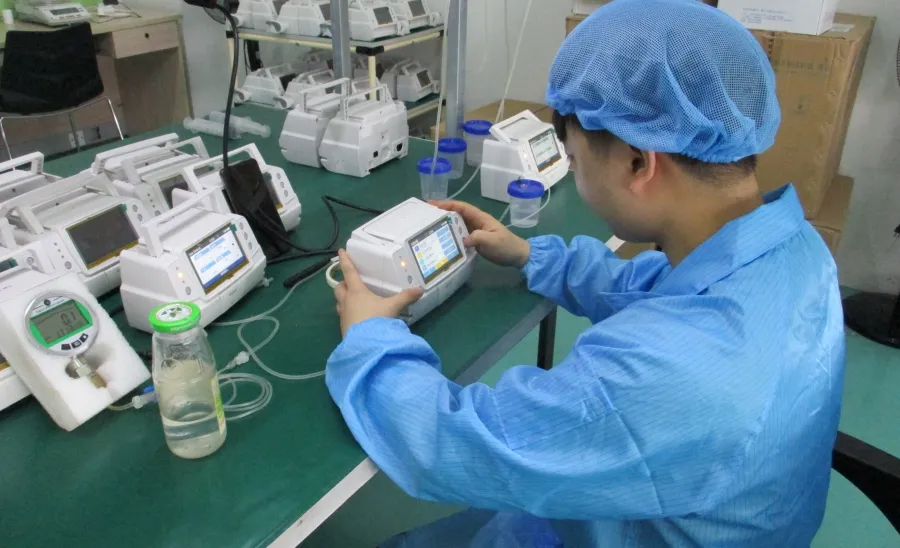

Exhibition & Production

📦

Packaging & Certifications

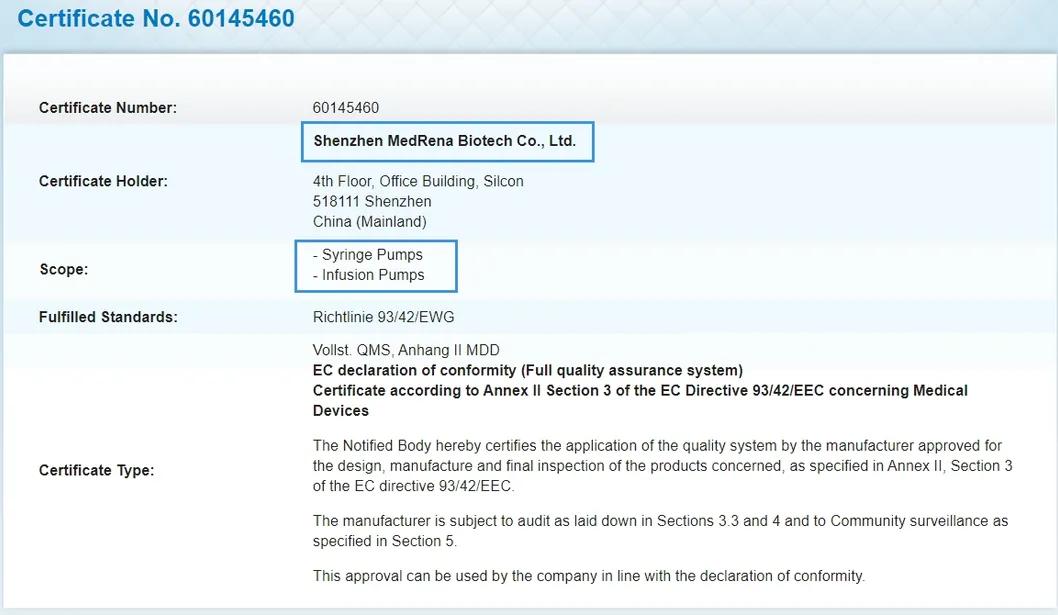

Infusion & Syringe Pump CE Certification

❓

Frequently Asked Questions

What is the battery life of the VP50 Pro?

The standard battery provides approximately 4.5 hours of operation, while the optional high-capacity battery can last up to 9-11 hours at a flow rate of 5ml/h.

Does this pump support different IV set brands?

Yes, it features an open system that is compatible with 24 different brands of IV sets, and a closed system is also available.

How many infusion modes are available?

The device supports up to 8 infusion modes, including Rate mode, Time mode, Body-weight mode, Drip mode, Drug library mode, Loading-dose mode, and Sequence mode.

What is the waterproof rating of the device?

The UniFusion VP50 Pro has an IP34 rating, providing 360° splash waterproof protection, making it suitable for demanding medical environments.

Can the pump be stacked?

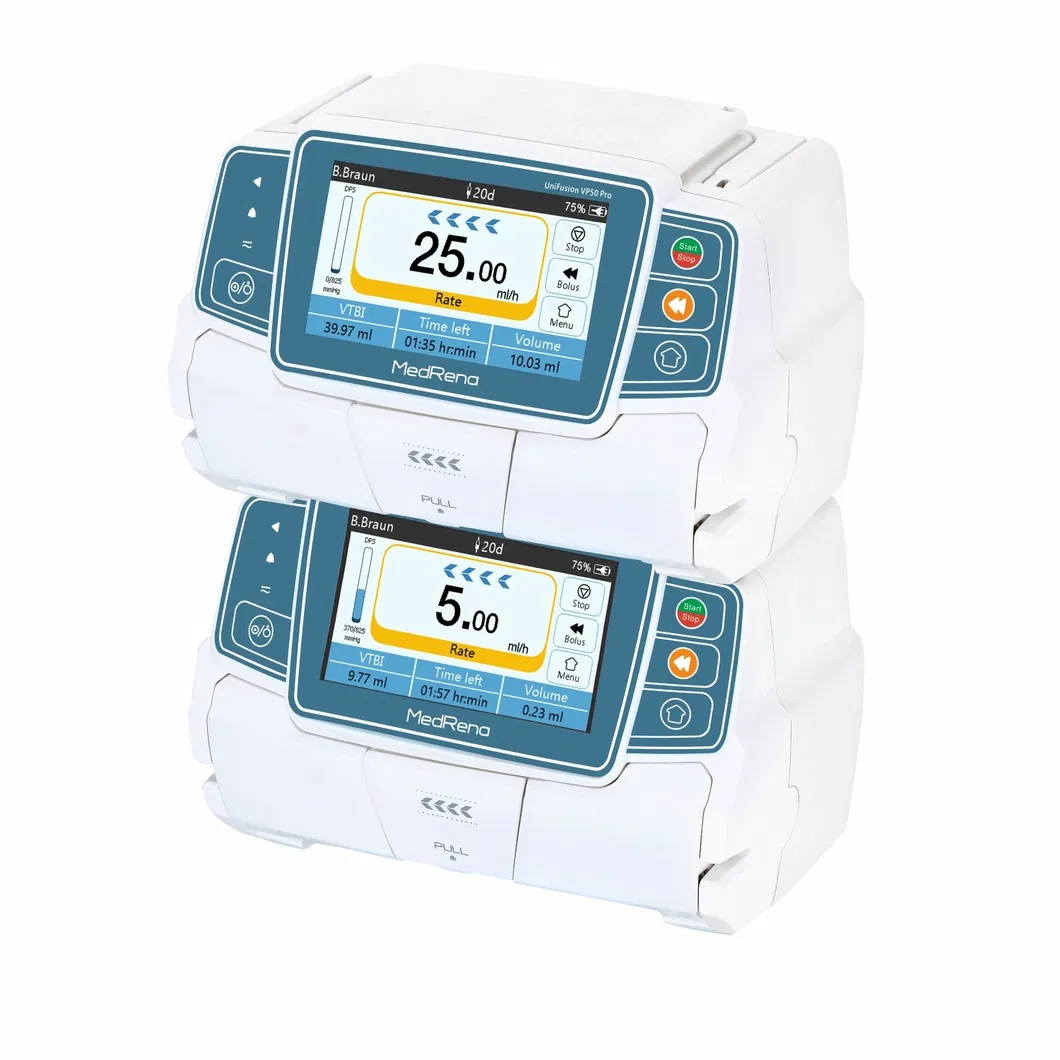

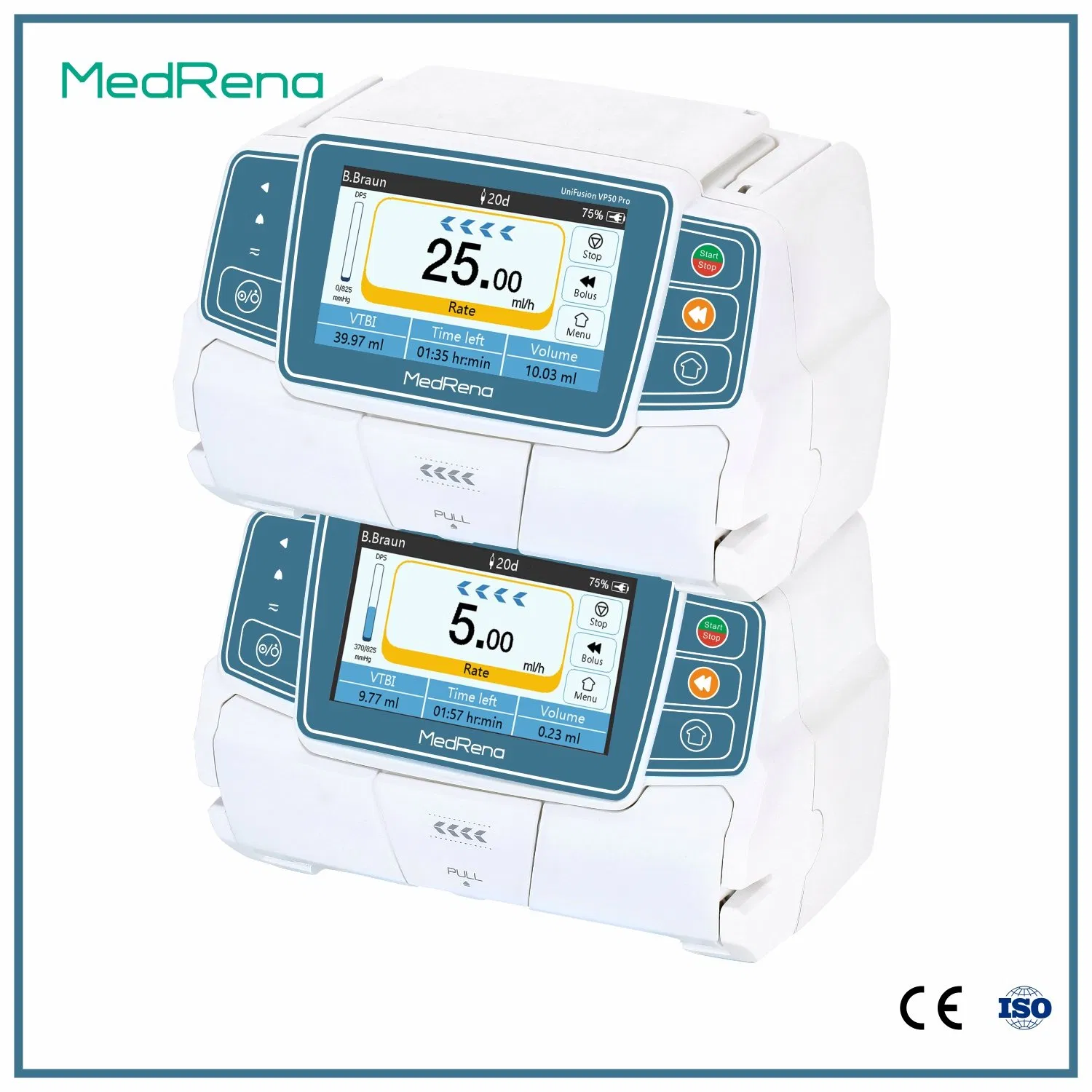

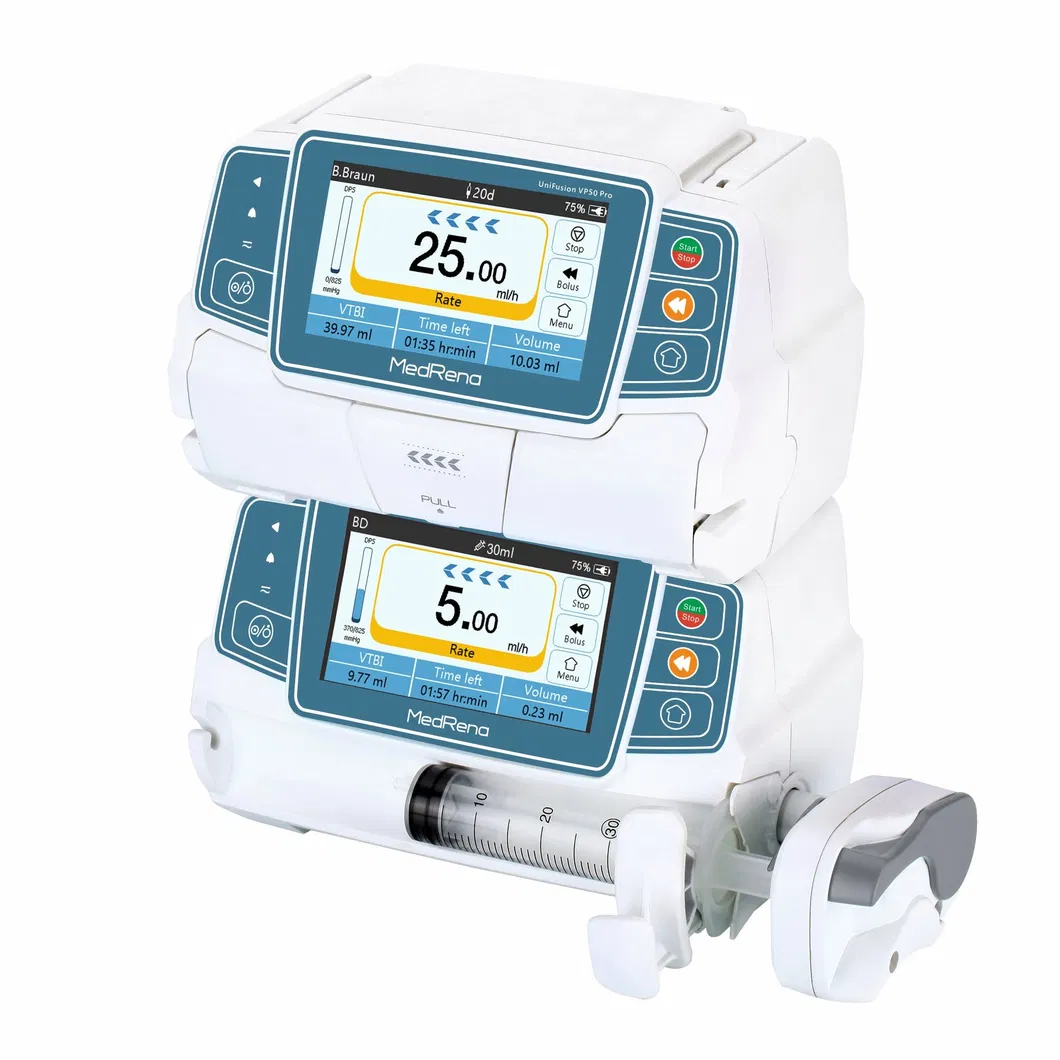

Yes, it features a stackable and inter-lockable design with a built-in handle for easy transport and organized bedside placement.

What safety sensors are included?

The pump is equipped with both up and down pressure sensors as well as up and down air bubble sensors to ensure maximum infusion safety.
