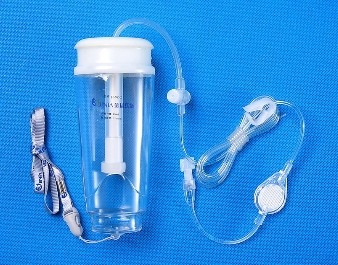

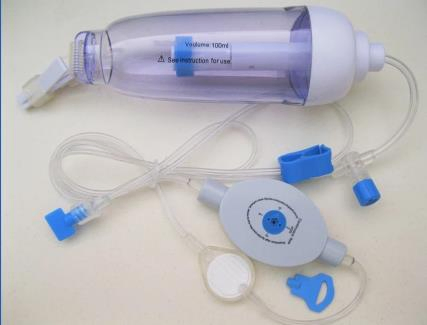

Disposable Multirate Infusion Pump with/Without PCA (CBI & PCA)

1 / 5

Disposable Multirate Infusion Pump with/Without PCA (CBI & PCA)

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Information

Model NO.

ZG-JTYQ008

Sterilization

Ethylene Oxide Sterilization

Guarantee Period

5 Years

Group

All

Logo Printing

With Logo Printing

Delivery

Within 30 days (Based on Quantity)

Package

100PCS

Transport Package

Carton

Specification

CE & PDF

Origin

China

HS Code

9018

Capacity

10,000,000 sets Per Week

💡

Product Description

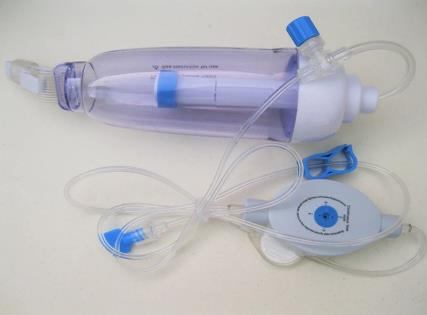

Disposable Infusion Pump

Brief Introduction:

This medical device is designed for clinical ease-pain treatment, providing relief or lenitive pain management. It utilizes the flexibility of a silicone reservoir to allow for constant minimal drop control through a capacity catheter, ensuring a safe and efficient continuous ease-pain infusion.

Construction:

Single valve add-medicine set
Elasticity bursa stocker set
Medicine liquid filter
Bounds flux set
Self-control infusion (Optional)
Pipeline and conical connectors

Apply Scope:

This product is used for continuous minimal infusion clinical treatment.

🛠️

Use Instructions

Take out the infusion pump from the sterile package.
Remove the cap from the add-medicine inlet, clip the stopper closed, and infuse the prepared medicine by syringe into the liquid bursa stocker.
Ensure there is no air in syringes when adding medicine. If air exists in the bursa, it can be exhausted manually or will exclude itself after 1-2 hours.
After adding medicine, open the clip and press the self-control button (CPA) 1-2 times to expedite flow into the pipeline.
The PCA button allows patients to control additional medicine dosage as per doctor's instructions.
Flow may be slightly faster during the first 1-2 hours due to the physical characteristics of the silicone bursa.
Standard flow rates are based on distilled water at standard temperatures; variations in medicine density or temperature may affect flow by approximately 10%.

📊

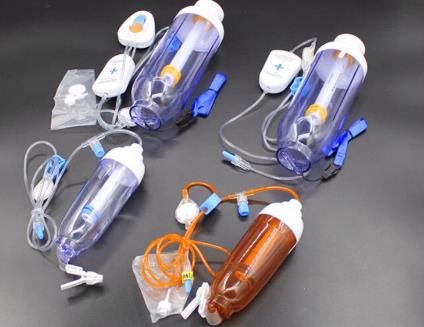

Specifications & Types

Infusion Data
Nominal Volume (ml)	60, 100, 150, 200, 275
Nominal Flow Rate (ml/hr)	2, 3, 4, 5, 8, 10
Bolus Means (ml/every time)	0.5
Lock-out Time (min)	15
Effective Infusion Dose	>90%

⚠️

Caution

Sterilized by Ethylene Oxide (EO), residual EO ≤10ppm.

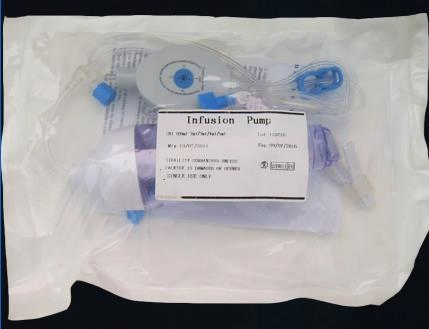

Check package integrity before opening. Do not use if damaged.
All components are sterile, non-toxic, and non-pyrogenic.
For single use only; discard after use.
Remove the yellow card on the PCA before use.
Read all instructions carefully for patient safety.

Frequently Asked Questions

What is the primary use of this disposable infusion pump?

It is used for clinical ease-pain treatment, providing continuous minimal infusion of medicine to relieve or manage pain effectively.

How is the device sterilized?

The device is sterilized using Ethylene Oxide (EO), ensuring all components are sterile, non-toxic, and non-pyrogenic.

Can the patient control the dosage?

Yes, models equipped with a PCA (Patient-Controlled Analgesia) button allow patients to administer a limited additional quantity of medicine as instructed by their doctor.

What should I do if there is air in the bursa?

The silicone bursa can exhaust air itself. If a small amount of air remains, it will typically be excluded after 1-2 hours of use.

What is the shelf life of this product?

The product comes with a 5-year quality guarantee period from the date of sterilization, provided the package remains intact.

Is the infusion flow rate constant?

The flow rate is designed to be constant; however, physical characteristics of the silicone may cause a slightly faster flow in the first 1-2 hours. Factors like medicine viscosity and temperature can also affect flow by about 10%.
